New | Build-to-Order

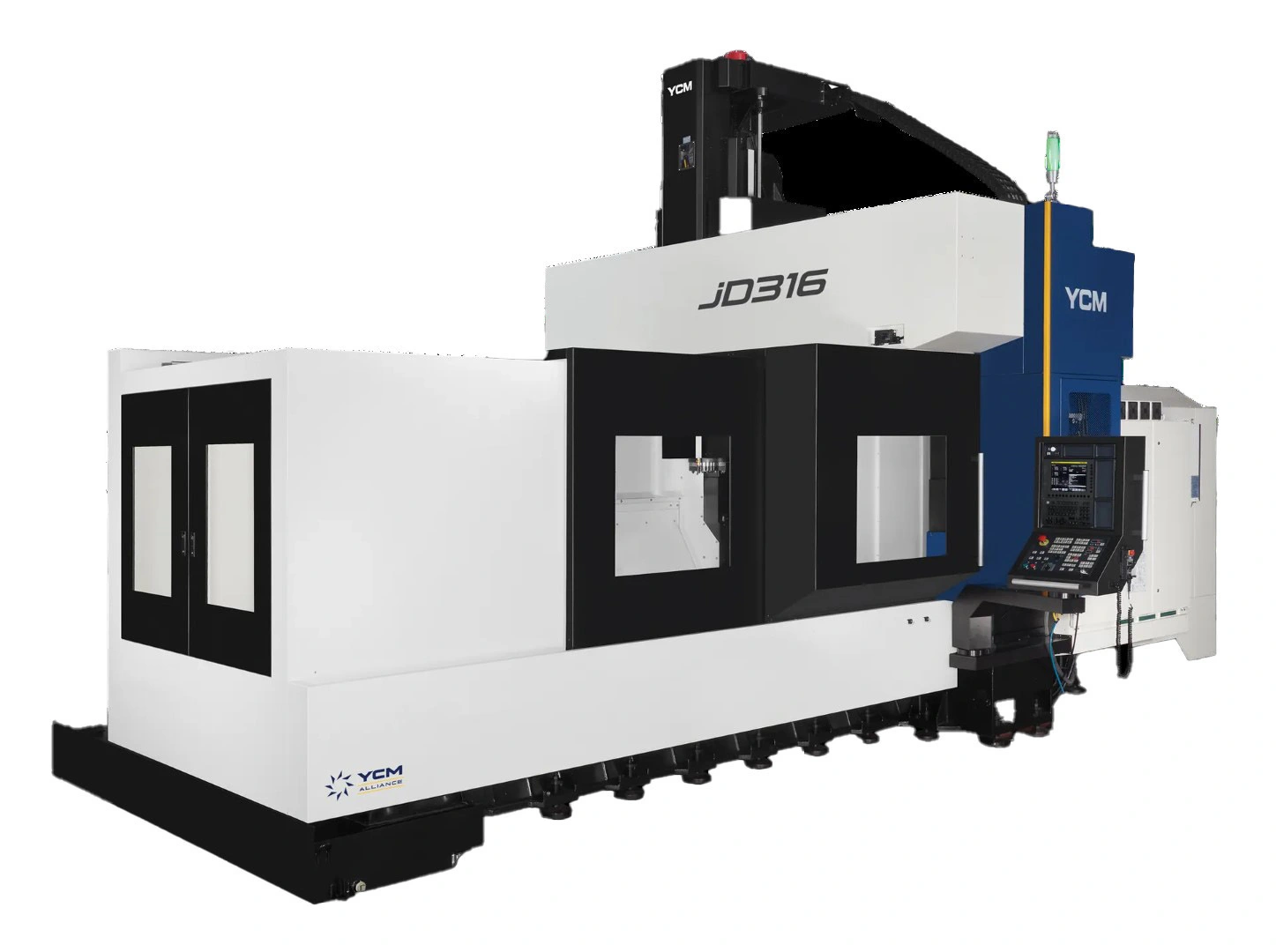

NEW YCM ALLIANCE JD416 (10K/60T)

Wisconsin, United States
883Listings|16Followers
Overview
Gantry Machining Centers (incld. Bridge & Double Column)

The jD Series double column vertical machining centers are designed to handle large parts, delivering excellent price/performance. Every machine tool is built and handcrafted for rigidity, thermal stability, and repeatability.

Specs
X
165.35"
4,199.9 mm
Y
62.99"
1,599.9 mm
Z
30"
762 mm
Power
35 hp
26.1 kW
RPM
10,000 RPM
10,000 RPM
# ATC
60
60
Taper
Dual Contact CAT-50 / BBT-50
Dual Contact CAT-50 / BBT-50
Table-W
157.48"
4,000 mm
Table-L
59.06"
1,500.1 mm
