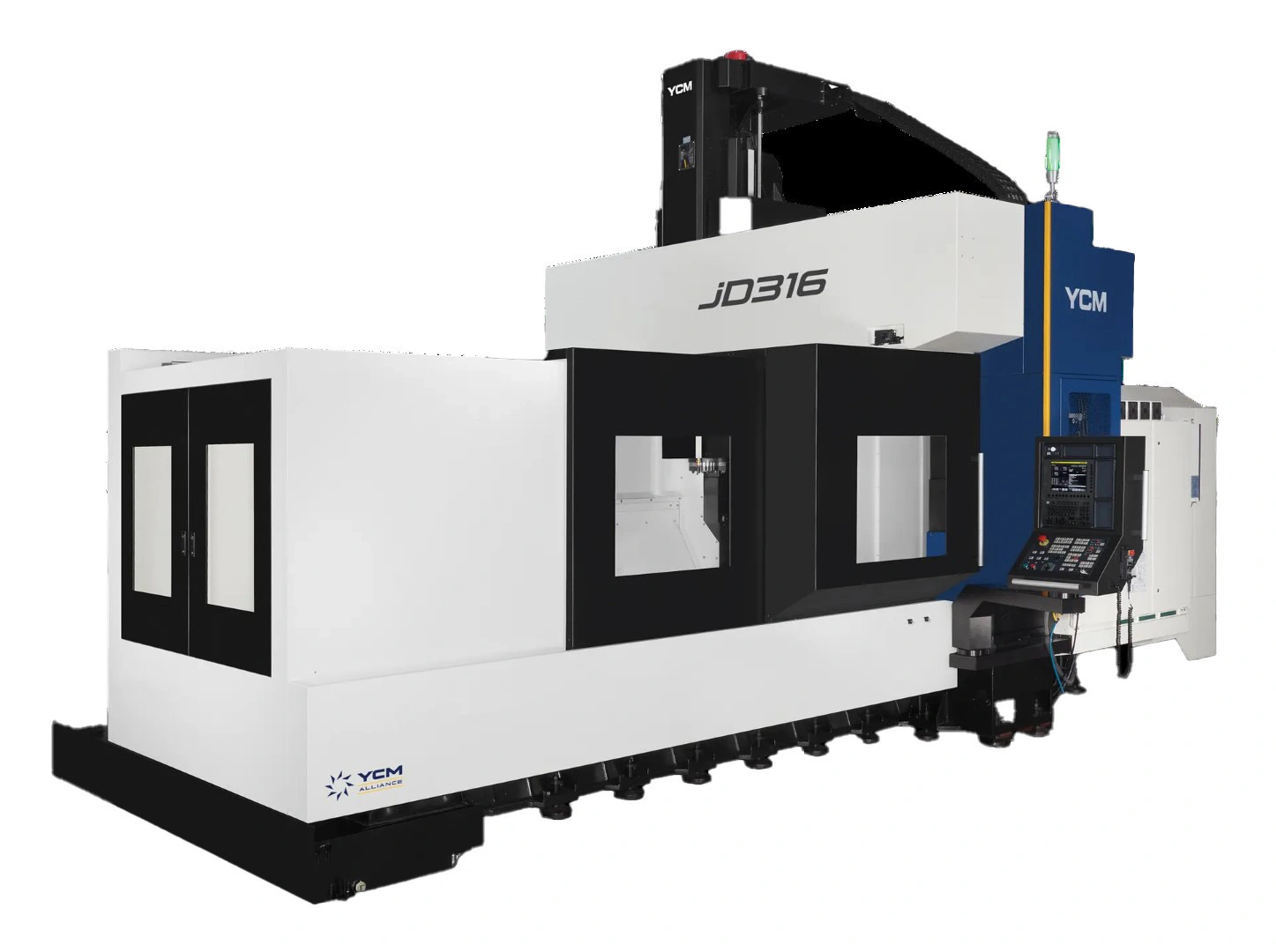

NEW YCM ALLIANCE JD316 (6K/60T)
Overview
Description
The jD Series double column vertical machining centers are designed to handle large parts, delivering excellent price/performance. Every machine tool is built and handcrafted for rigidity, thermal stability, and repeatability.
Specifications
| X | 125.98" | 3,199.9 mm |
|---|---|---|
| Y | 62.99" | 1,599.9 mm |
| Z | 30" | 762 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 60 | 60 |
| Taper | Dual Contact CAT-50 / BBT-50 | Dual Contact CAT-50 / BBT-50 |
| Table-W | 118.11" | 3,000 mm |
| Table-L | 59.06" | 1,500.1 mm |
Standard Features and Options
• Circular Coolant Nozzle
• Heavy Duty Coolant Pump
• Coolant Gun
• ATC Auto Door
• 40T ATC
• 6,000rpm Spindle
• Cutting Air Blast
• Chip Conveyer (Steel Belt)
• Rigid Tapping
• 4 - Standard M-Codes
• Spindle Cooling System
• Interlocking Door Safety Switch
• Central Auto-Oil Lubrication System
• Dual Chip Augers
• Full Chip Enclosure with Top Covers
• Leveling Blocks and Bolts
• A/C Cooler for Electrical Cabinet
• Mechanical, Electrical & Operating Manuals (CD)
• Tool Kit
• Foundation Bolts
