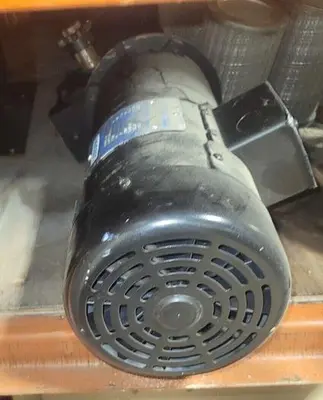

Leeson Single Phase Gearbox Motor

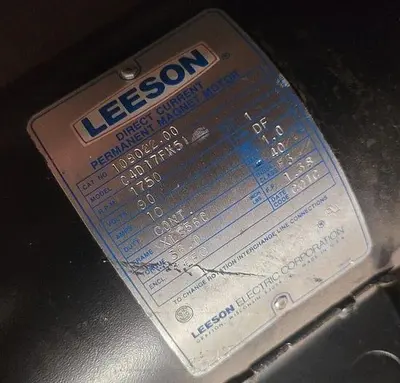

Cat #: 108022.00
Model #: C4D17FK51
RPM: 1750
90V, 1 ph
10 Amps
Continuous Duty Motor
Frame: XLS56C
Torque: 36.0
Graham Gearbox:
Model #: IC60
Ratio: 60:1
.66 Hp
Modified item: No
Custom bundle: No
Nema frame suffix: C
Ac phase: Single Phase
Special motor construction: Gearbox Motor
Reversible/non-reversible: Reversible
Upc: 0691720006672
Actual rated input voltage: 90
Inverter/vector duty rating: Not Inverter/Vector Duty Rated
Full load amps: DC
Rated load (hp): 1
Enclosure type: TEFC (Totally Enclosed Fan Cooled)
Base rpm: 1800
Shaft type: Keyed
Shaft diameter: 5/8 in
Insulation class: F (Max 311°F)
Mounting type: Foot-Mounted, Base-Mounted, Face-Mounted
Dc stator/winding type: Permanent Magnet
Current type: DC
Ip rating: Not Rated
Service factor: 1.00
Nominal rated input voltage: 90 V
Starting/locked rotor torque: Copper
