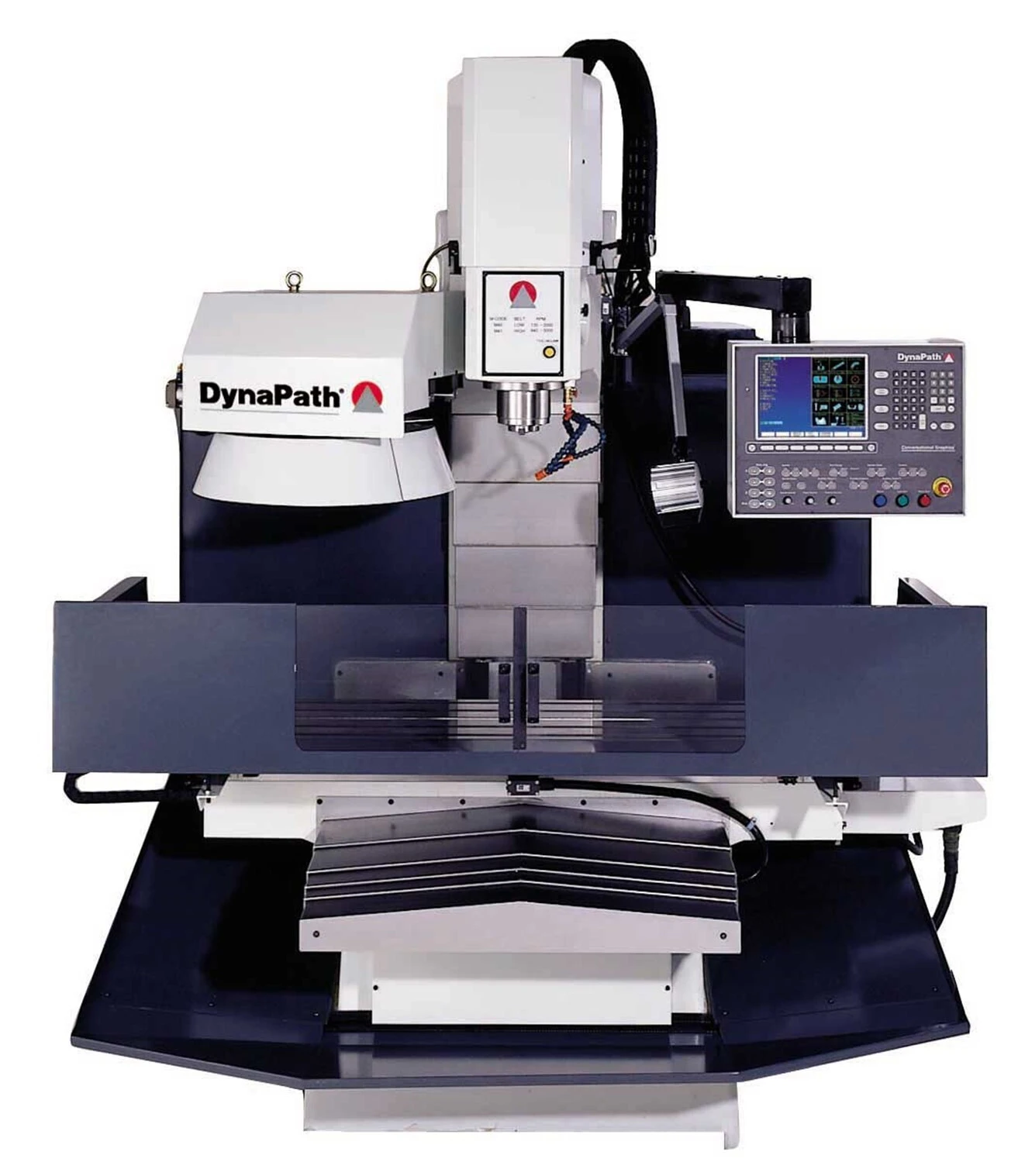

Equipped With A DynaPath WinDelta CNC Control, D5 Console with 12.1" Color Touch LCD, AC Servo Axis Motors, Table Top Splash Guard, Cartridge Type Spindle 15HP, 8,000 rpm Dual Winding Spindle Motor. 20 Tool ATC & Standard Machine Tool Accessories and Manuals Included.
| X | 59" | 1,498.6 mm |
| Y | 28.5" | 723.9 mm |
| Z | 26.5" | 673.1 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT40 or BT40 | CAT40 or BT40 |
| Table-W | 24" | 609.6 mm |
| Table-L | 73" | 1,854.2 mm |
Standard Features:
12.1” Touch screen LCD Display
Shop Floor Conversational Programming Including Odd Pocket Clean Out
4 GB Program Storage, 2 USB, 1 LAN Ports – Part Program Load & Store
ISO G-Code Motion Interpreter Core
DXF Drawing Import – Tool Path Via Touch Screen Selection
Programmable Auto Spindle Speed Control with “M” Functions (M03, M04, M05)
Reference and Over travel Limit Switches
Automatic Lubrication System
Precision Ground Double Nut Ballscrews
Flood Coolant with Operation Controlled by M Function
Table Top Splash Guard
Work Light
Hardened and Ground Slideways
Slide Way Covers
