New | Build-to-Order

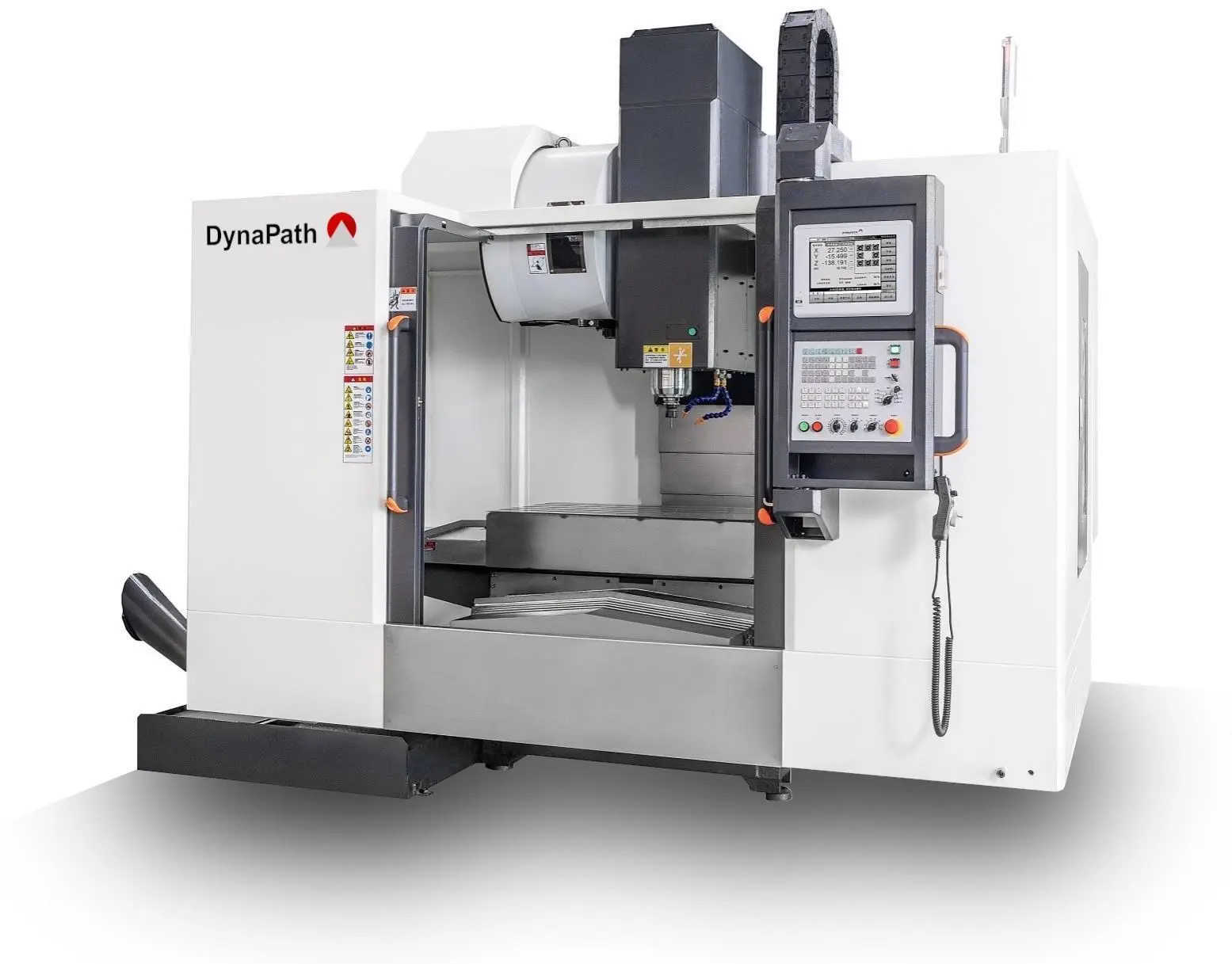

NEW DYNAPATH VMC-1160L

Wisconsin, United States
865Listings|15Followers
Overview
Vertical Machining Centers

47" x 23" Table / 43" x 23" x 23" Axis Travel.
Equipped With DynaPath PC Based Control, Color Touch Screen LCD, AC Servo Axis Motors, 15 HP, 8,000 RPM Spindle Motor, 24 Tool Arm Type ATC and Standard Machine Tool Accessories with Manuals.

Specs
X
43"
1,092.2 mm
Y
23"
584.2 mm
Z
23"
584.2 mm
Power
15 hp
11.2 kW
RPM
8,000 RPM
8,000 RPM
# ATC
24
24
Taper
CAT40
CAT40
Table-W
23"
584.2 mm
Table-L
47"
1,193.8 mm
Dimensions
142" x 104" x 115"
142" x 104" x 115"
Weight
15,400 lbs.
15,400 lbs.
