USED 2020 GENERAL BIGIESSE 340 PBOM-MT

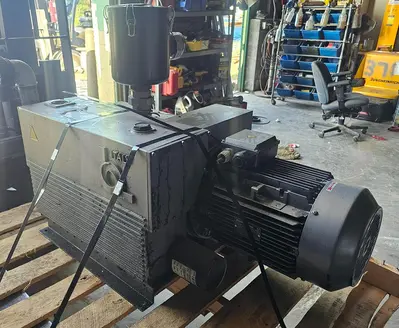

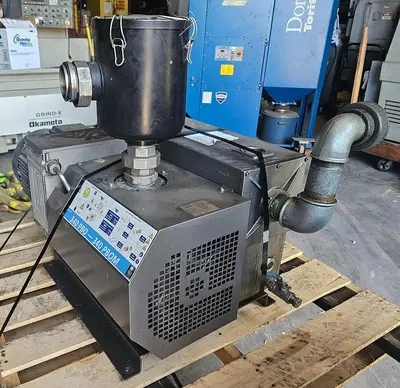

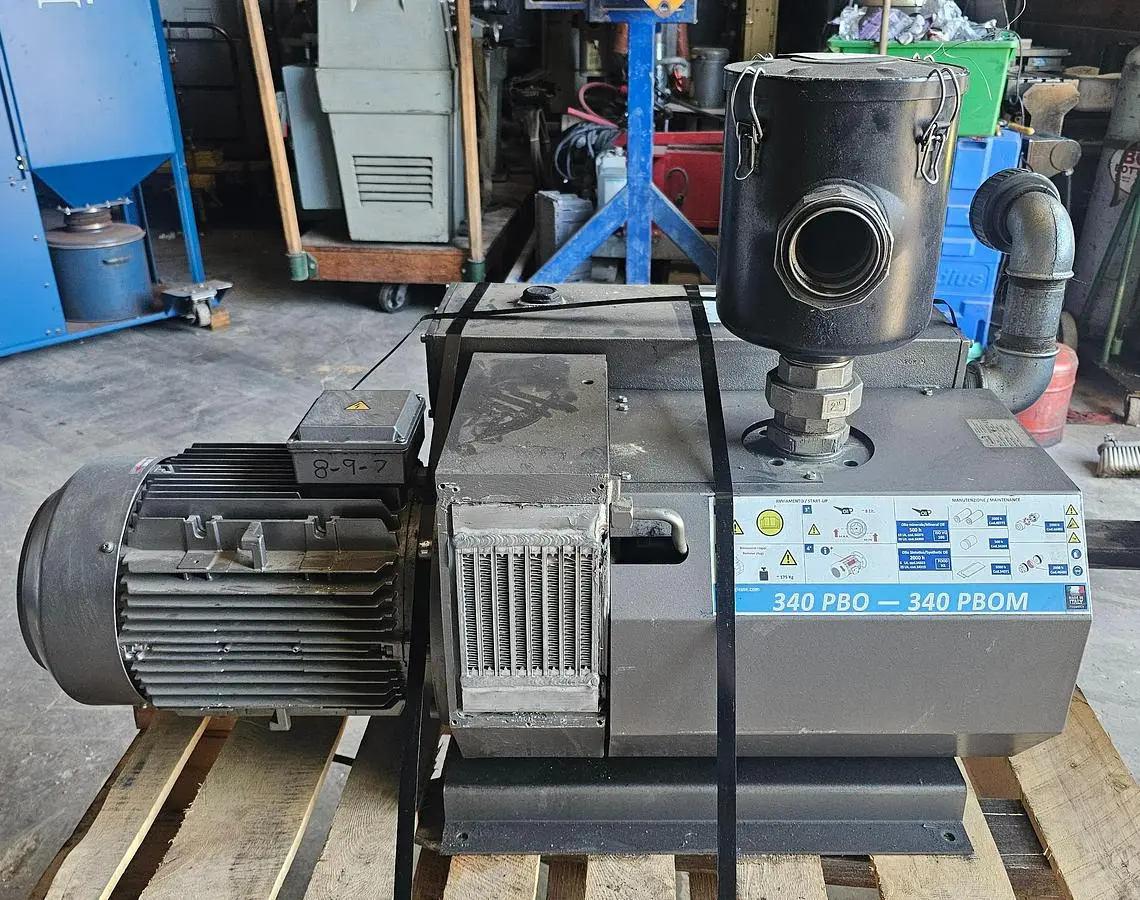

2020 General Bigiesse 340 PBOM-MT Rotary Vane Vacuum Pump340 m3/h Capacity | 0.5 mbar Ultimate Vacuum | S/N: 155483638Available for acquisition is a late-model General Bigiesse (BGS General) 340 PBOM-MT oil-lubricated rotary vane vacuum pump. Manufactured in 2020, this unit represents the current generation of Italian vacuum technology, offering a massive 340 m3/h (200 CFM) displacement. It is ideal for large-scale industrial applications, including CNC vacuum tables, medical suction, and central vacuum systems.Technical SpecificationsModel: 340 PBOM-MTYear of Manufacture: 2020Serial Number: 155483638Nominal Capacity: 340 m³/h (200 CFM)Ultimate Vacuum: 0.5 mbar (abs)Motor Power: 9.2 kW / 11.04 kW (15 HP Equivalent)Electrical: 230/460V, 3-Phase, 60HzWeight: 175 kg (385 lbs)Dimensions: 39" L x 18" W x 20" HKey Features & PerformanceIntegrated Oil/Air Separator: Features a high-efficiency aluminum separator that eliminates oil mist discharge, ensuring clean exhaust for indoor environments.Direct Flexible Coupling: The cast iron pumping unit is coupled to the motor via a flexible coupling, reducing mechanical stress and noise while extending the life of the motor bearings.Severe Duty Cooling: Equipped with a high-capacity air-cooling system and a suction check valve to prevent oil backflow during shutdown.Synthetic Fluid Ready: Designed to operate with BGS TORR F100 non-toxic synthetic fluid for maximum protection and reduced maintenance.Modern Control Logic: Compatible with most modern plant PLC systems for automated monitoring of vacuum levels and motor temperature.

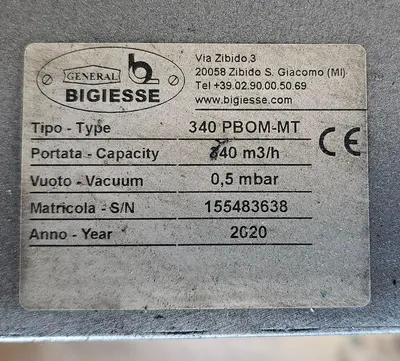

Type: 340 PBOM-MT
Capacity: 340 m3/h
Vacuum: 0.5 Bar
S/N: 155483638
