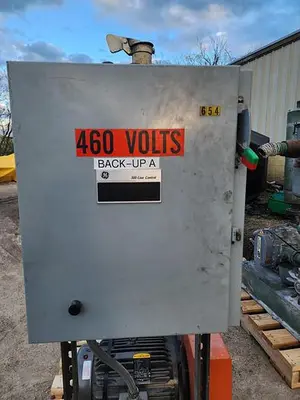

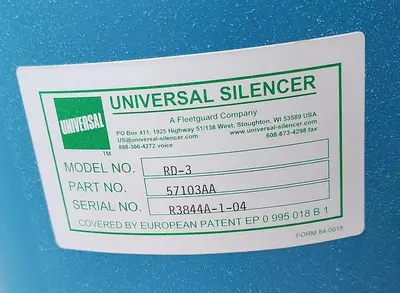

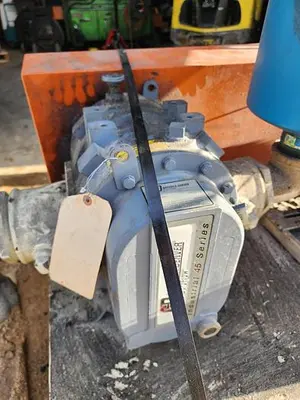

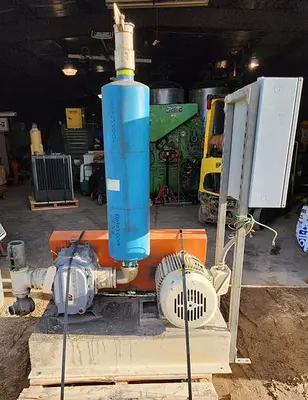

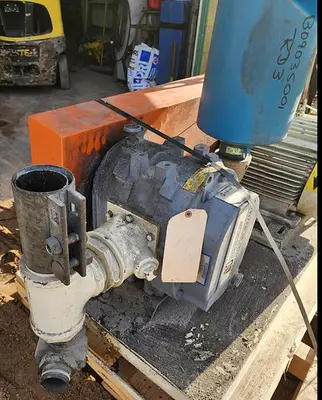

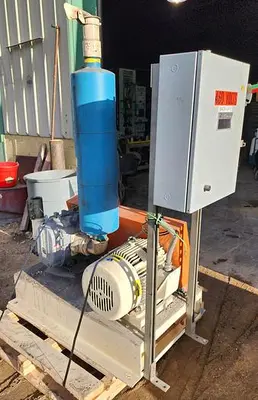

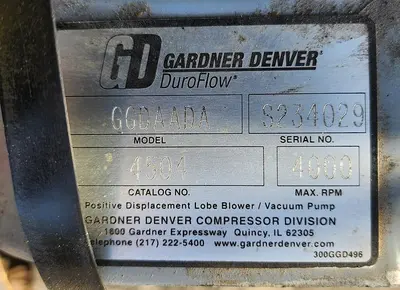

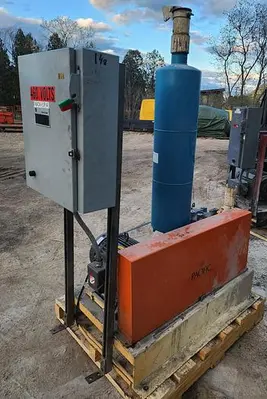

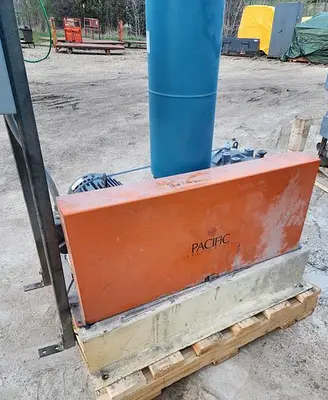

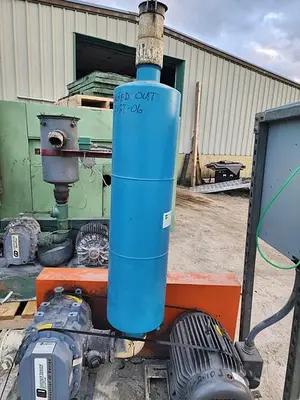

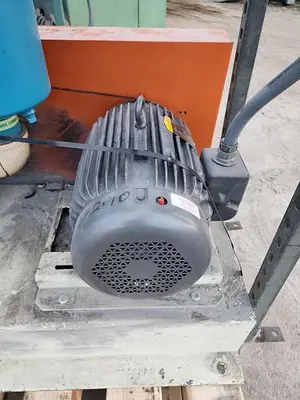

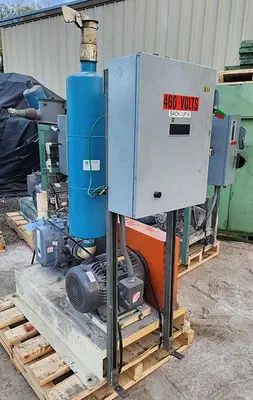

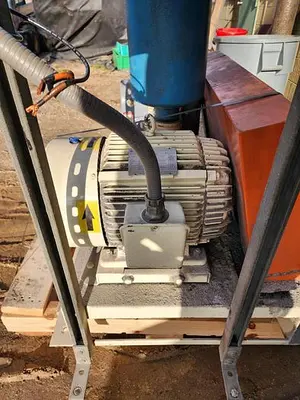

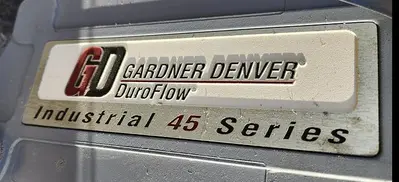

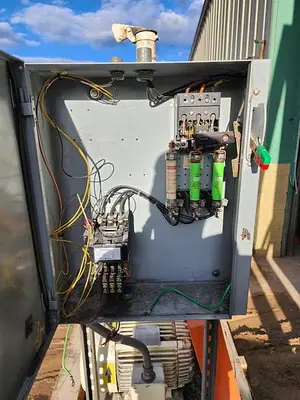

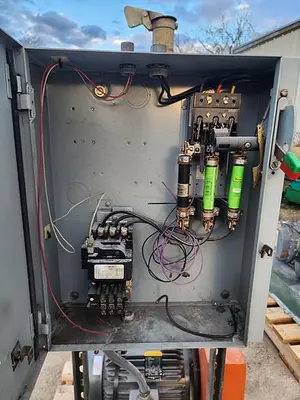

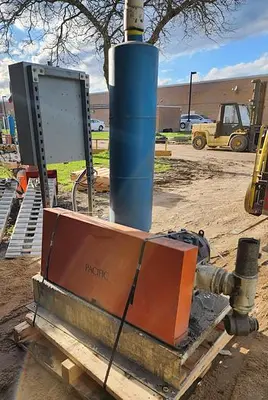

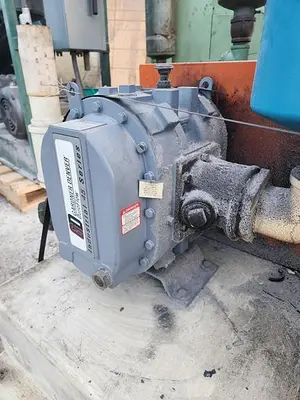

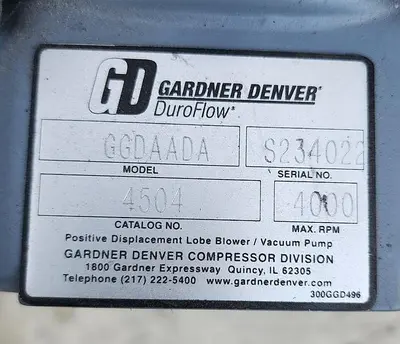

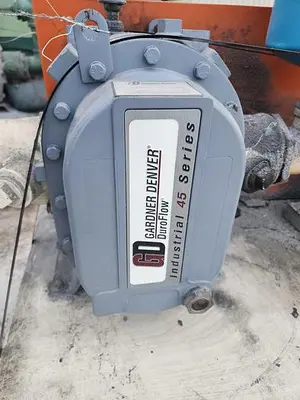

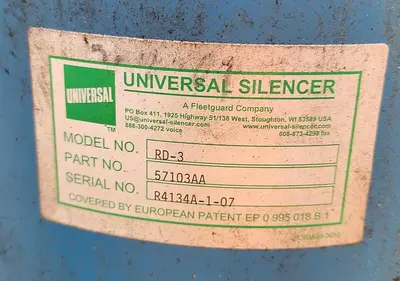

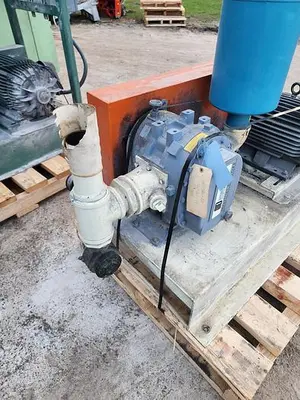

Pacific Engineering Positive Displacement Vacuum Blower PackageSterling Electric MotorHorsepower: 20 208-230/460V, 3 ph @ 60 HzModel #: JB0204FFATEFC EnclosureFrame: 256T Gardner Denver PD BlowerModel #: GGDAADACatalog #: 4504S/N: S234029Maximum RPM: 4000Universal Silencer RD-3 GE 300-Line Control Motor StarterMaximum Airflow: 403 CFMMaximum Pressure: 15 PSIGMaximum Vacuum: 16" HgSpeed Range: 1,750 RPM (Min) to 4,000 RPM (Max)Line Connection Size: 4" NPTShaft Diameter: 1.44"Lubrication: Dual Splash Lubrication (Oil at both drive and gear ends)Weight: ~300 lbs (Bare blower)Key FeaturesDurable Construction: Features a single-piece cast iron cylinder with integral ribs to prevent distortion under high pressure.Advanced Rotors: Equipped with high-strength ductile iron bi-lobe impellers that are dynamically balanced for vibration-free operation.Helical Timing Gears: Precision-machined from alloy steel to reduce noise and ensure long-term timing accuracy.Thermal Capability: Rated for discharge temperatures up to 350°F.
Horsepower: 20
Frame: 256T
Catalog #: 4504
S/N: S234029
Maximum RPM: 4000
