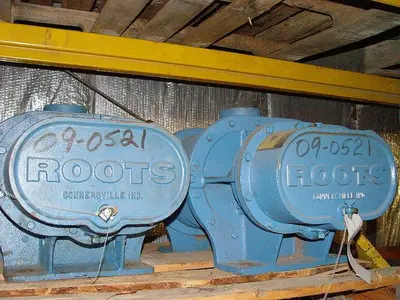

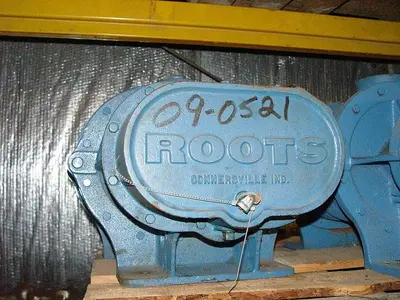

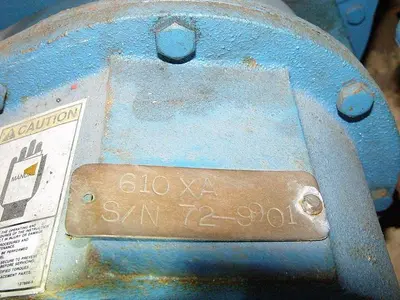

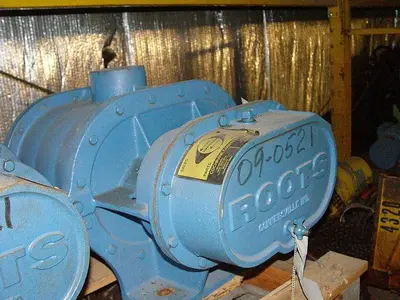

Roots model 610 XA gas pump
Flow Range: to 417 CFM
Max ΔPressure: 4 psi
Max ΔVacuum: 8 Hg
Maximum Speed: 1080 RPM
Minimum Speed: 636 RPM
Max ΔT: 115° F
Connection Size: 3"
Shaft Diameter: 1.25"
Drive End Lubrication: Grease
Gear End Lubrication: Oil
Required Oil for Gear End: 26 Fl Oz
Unit Weight: 430 lbThe Roots 610 XA is an older, standard-duty positive displacement blower for pressure/vacuum, offering up to 417 CFM flow, max 4 psi pressure, 8″ Hg vacuum, operating up to 1080 RPM, with a 3-inch connection and 1.25-inch shaft, known for its cast iron casing, tri-lobe impellers, quiet operation, and oil/grease lubrication, though now superseded by newer models like the Universal RAI-G. Key Specifications:Flow Range: Up to 417 CFM (Cubic Feet per Minute).Max Pressure: 4 psi (pounds per square inch).Max Vacuum: 8″ Hg (inches of Mercury).Max Speed: 1080 RPM (Revolutions Per Minute).Min Speed: 636 RPM.Max Temp Rise (ΔT): 115° F.Connection Size: 3 inches.Shaft Diameter: 1.25 inches.Lubrication: Grease (Drive End), Oil (Gear End).Unit Weight: Approximately 430 lbs. Design & Features:Tri-Lobe Impellers: Reduces pulsation and noise.Whispair Design: Further quietens operation.Construction: Cast iron casing, alloy steel gears, steel shafts.Seals: Split lip-type clipper seals.Bearings: Cylindrical roller bearings.Versatility: Suitable for both pressure and vacuum service.
Power source: BLOWER
Application: Industrial
Type: Vacuum
Weight: 430 Lbs
Shaft Diameter: 1.25"
Max CFM: 417
