USED HIBON - BOC EDWARDS 4263.01.B

HIBON TWO LOBE ROTARY HI-VOLUME VACUUM / PRESSURE BLOWERS
(BOC EDWARDS)
Drive Shaft Diameter: 2-1/8"
Drive Shaft Length: 4"
Flange O.A.D.: 13"

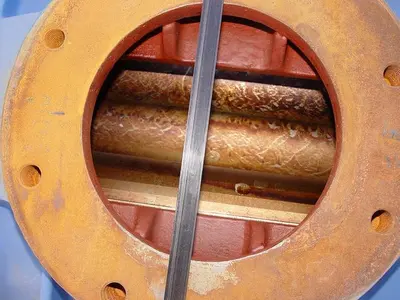

Inlet/Outlet I.D.: 8"

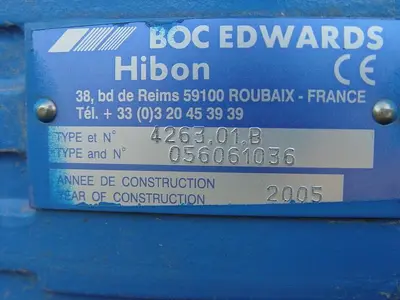

Model #: 4263.01.B
S/N's: 056061038 or 056061036
DOM: 2005 - NEW NEVER USED
SALE PRICE IS FOR ONE UNIT ONLYThe BOC Edwards Hibon 4263.01.B blower is a high-volume, two-lobe rotary unit for vacuum/pressure applications, featuring a 2-1/8" drive shaft, 8" inlet/outlet, cast iron casing, steel shafts, and oil-splash/grease lubrication, offering high flow rates (hundreds to thousands of CFM) with features for reliability, typical for industrial processes like aeration or pneumatic conveying, though exact performance curves require the specific blower's manual. Key Specifications & Features:Type: Two-Lobe Rotary Blower (Roots type)Model: 4263.01.BManufacturer: BOC Edwards (now part of Ingersoll Rand/Gardner Denver)Drive Shaft: 2-1/8" diameter, 4" lengthConnections: 8" Inlet/Outlet IDCasing: Close-grained cast iron, ribbed for strengthRotors: Cast iron with pressed-in steel shaftsGears: Ground and hardened alloy steel spur gearsBearings: Anti-friction, splash-lubricated (gear end) & grease-lubricated (drive end)Seals: Single lip seals (for air), special seals for gasApplications: Industrial air/gas handling (pneumatic conveying, aeration, filtration, etc.) Performance (General for Series):Flow Rates: Can range from 1175 CFM up to 5600 CFM (or much higher for other Hibon models), depending on configuration.Pressure: Handles positive pressure (up to ~1 bar g) and vacuum (down to ~500 mbar abs).

Seller notes: “NEW - N.O.S. 'NEW OLD STOCK' - NEVER PUT IN PRODUCTION/USE.”
Type: Vacuum
Power source: NONE INCLUDED - BUYER SUPPLIES
Application: Industrial
Modified item: No
