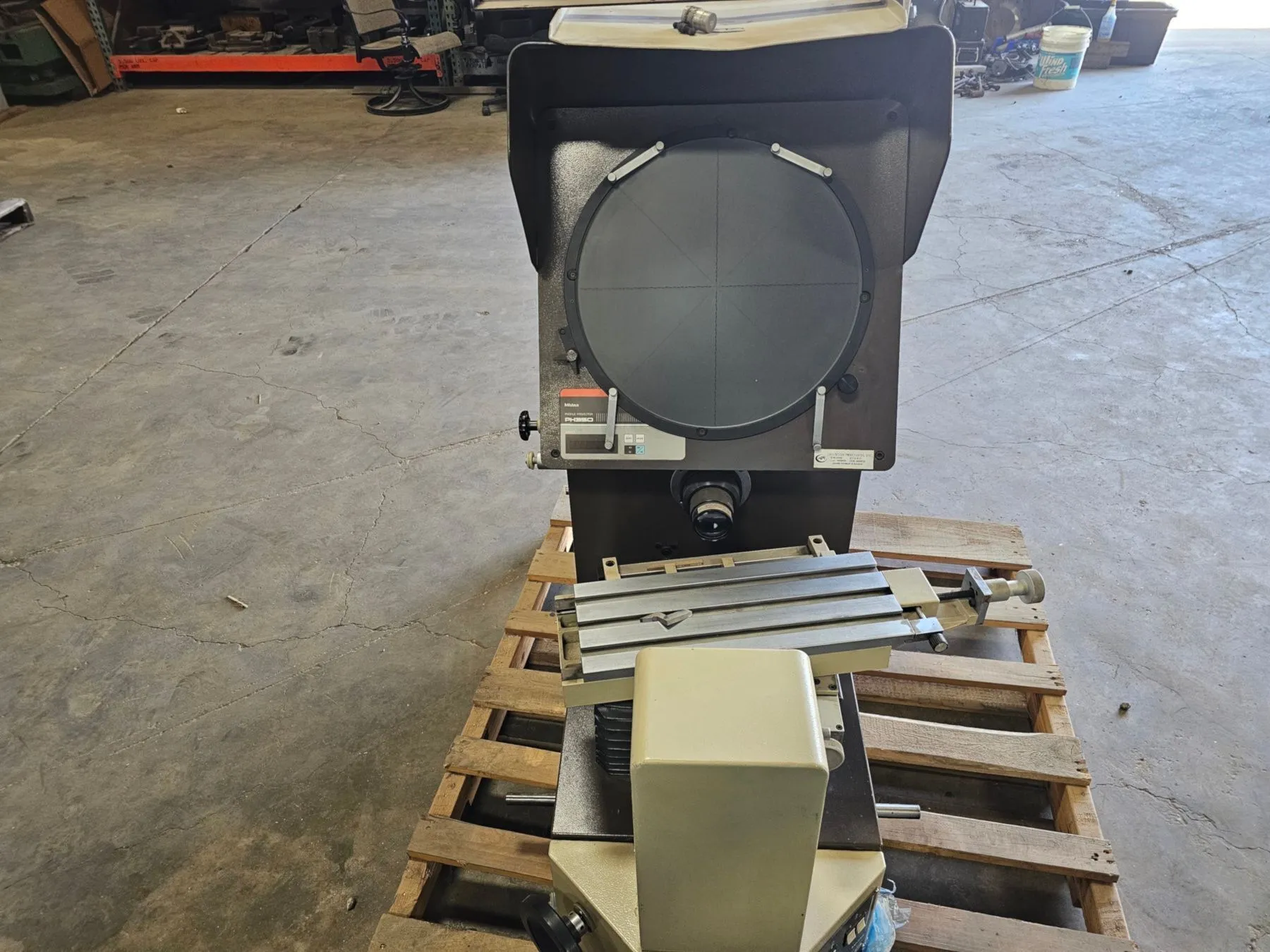

Mitutoyo PH-350 Horizontal Optical Comparator 14" Bench Type
| Dimensions | R-L 30"X F-B 48"X Height 36" | R-L 30"X F-B 48"X Height 36" |
| Weight | 250 Lbs. | 250 Lbs. |
Mitutoyo PH-350 Horizontal Optical Comparator 14" Bench Type
Plain crosshair screen...........................14"
Lens w/ Condenser Lens...........................10X
Travel...........................................6" x 4"
Linear Scale.....................................2um
DRO w/ Diameter / Radius Function................X,Y
Dimension........................................R-L 30"X F-B 48"
Height...........................................36"
Weight...........................................250 Lbs.
Profile Illumination Type........................Tungsten
Surface Illumination.............................Tungsten
Profile Light....................................Yes
Quick Release Stage..............................Yes
Vernier Protractor...............................Yes
Edge Detection...................................No
Helix Stage......................................No
User Manuals.....................................Yes
