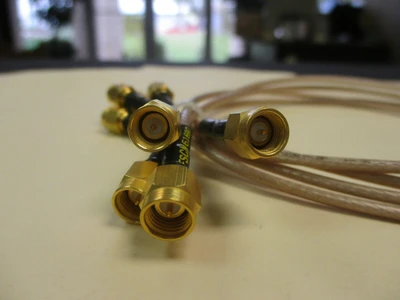

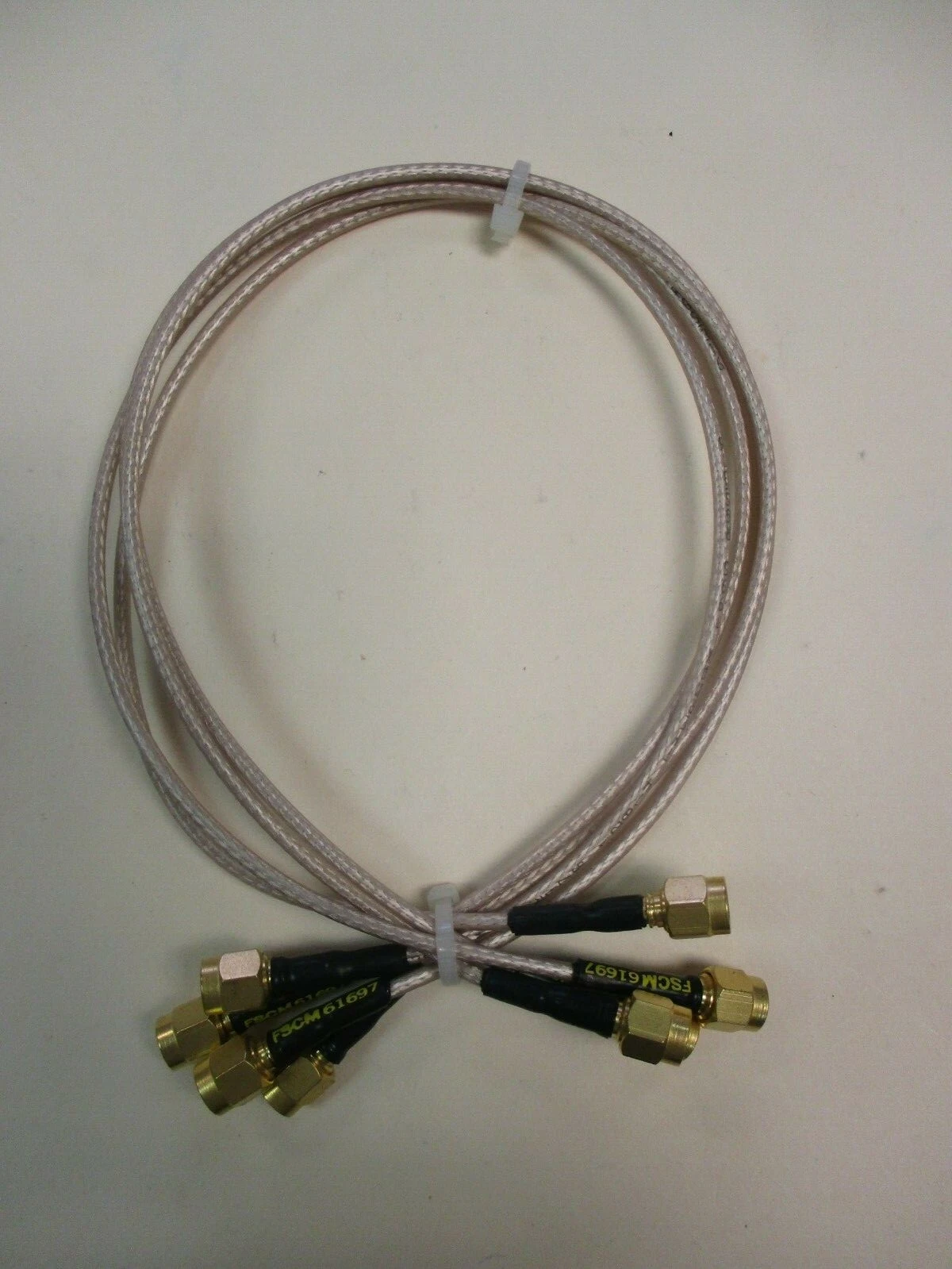

NEW Thermax M17/113-RG316

Press to translate Listing Translator by Hindi Portuguese Thai Korean French Chinese Spanish Arabic Japanese German Russian Italian YOU ARE BIDDING ON 1 UNUSED Thermax M17/113-RG316 Radio Frequency, Coaxial with a MA-Com Connector (PN:FSCM61697 MALE TO MALE) Thermax M17/113-RG316 MIL-C-17 Coaxial/Twinaxial 14 1/2" 14 1/2" LONG LOC: 128F Specifications Conductor Diameter - inches (mm) .020 (.159) Conductor Type Solid SPCW (Silver-plated copperweld (copper-covered steel) Impedance 50Ω Max. Working Voltage 900 Jacket Diameter - inches (mm) .098 (2.49) Capacitance (pF/ft) 32.0 (105) Attenuation @ 100 MHz (dB/100 ft.) 11.0 Attenuation @ 1 GHz (dB/100 ft.) 38.0 Attenuation @ 400 MHz (dB/100 ft.) 21.0 Insulation Diameter - inches (mm) .060 (1.52) Jacket Type Extruded FEP (Fluorinated Ethylene Propylene) Insulation Type Extruded PTFE (polytetrafluoroethylene) Braid Type Single 38 SPC (Silver-plated copper) Braid Diameter - inches (mm) .078 (1.98) Max. Conductor Resistance - Ohm/100 ft. (ohm/100 meters) 8.41 (27.6) Min. Dielectric Strength - KV RMS 2.00 Min. Corona Extinction - KV RMS 1.20 Max. Power @ 100 MHz (Watts) 430 Max. Power @ 400 MHz (Watts) 210 Max. Power @ 1 GHz (Watts) 130 Thermax Type RGS-316 Cable Type Coaxial
