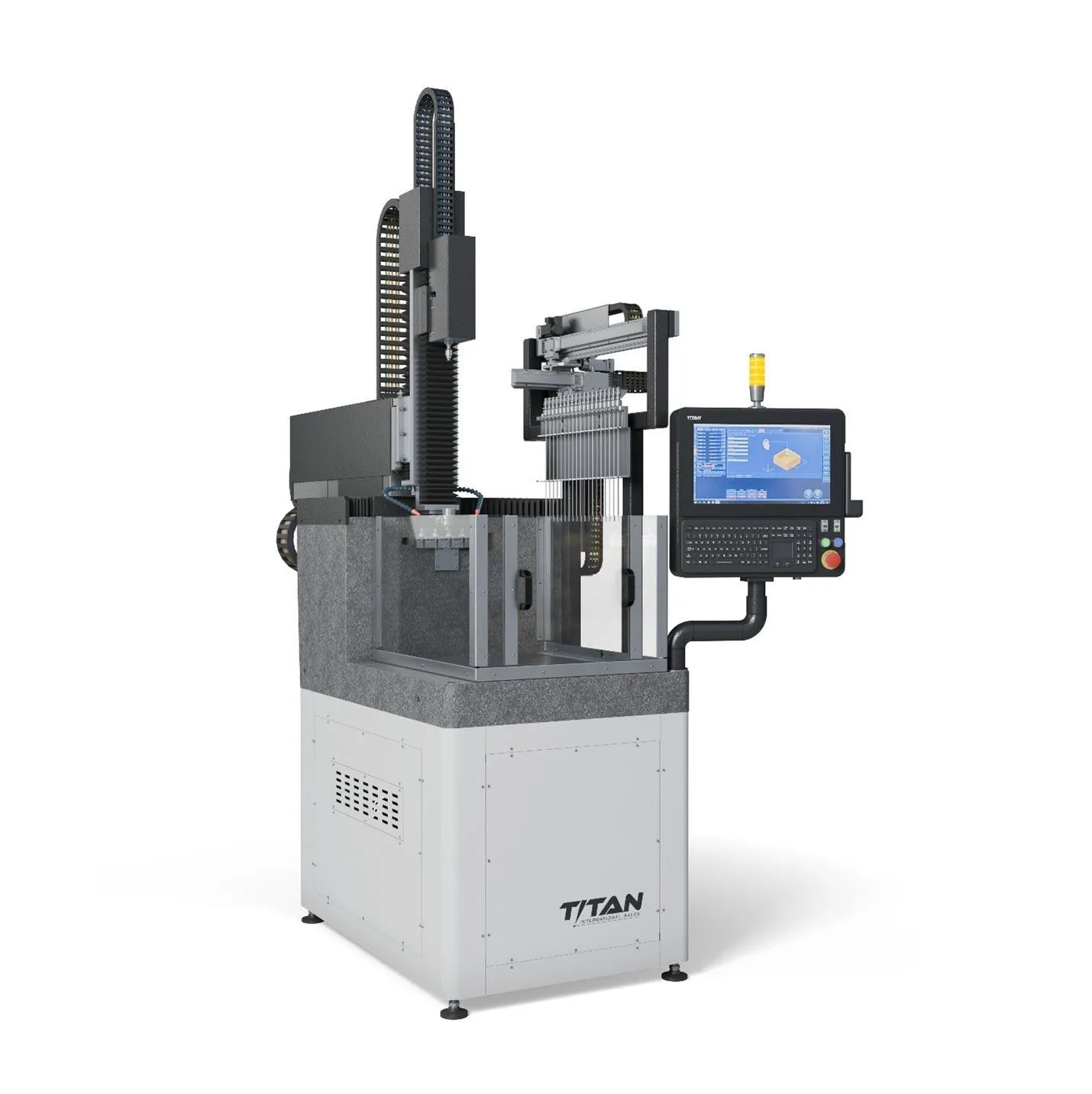

NEW TITAN INTERNATIONAL SALES FORCE 30

SOFTWARE FEATURES
• Embedded Windows 11 operating system allows for controller flexibility and HMI customization
• Standard G code programming G and M code programming; NC and DXF file reading function
• Automatic electrode compensation offers automatic reset and depth calculation of Z axis
• Soft start feature reduces burr formation by changing amperage levels during the burn process
• Cutting technology storage allows for user defined setting management and sample test bank
• Programmable work piece pickup ID, OD, cylindrical and shapes
• Depth control / blind hole capabilities offer automatic probing of hole depth
• Multiple work piece setup allows for simultaneous programming and machining
• On screen editing offers point and click programming options with hole elimination
• Dry run function with single block option
• Drilling timer both cycle time and program time
• Program input by USB, or Ethernet
• M Codes I/O functionality for indexers, robotics, air chucks or other functions (optional)

MACHINE RIDIGITY
• Lapped granite stage for mounting of X / Y Frame
• Precision linear motion guides with preloaded ball bearings for support
• Precision ball screws with nut preload for stability and proper stretching
• Direct motor couplers to servo system compensate for axial deviation

MACHINE CONTROLLER / DRIVE SYSTEM
• CK5M Omron Delta Tau 16 axis controller
• Omron 1S servo motors with 20 Bit absolute encoders on all axis
• Omron Digital / Analog IO, Ethercat VFD’s for pump and spindle
• TeamViewer remote control monitoring and support

INTERNAL FILTRATION SYSTEM (STANDARD)
• 65 gallon closed loop filtration and water deionizing system
• Digital water level monitoring via optic sensor with service beacon
• Digital conductivity monitoring with service beacon (optional 0818 resin bottle)
• Digital monitoring of filter pressure via pressure transducer with service beacon
• 2HP CAT high pressure pump

MACHINE TOOLING (STANDARD)
• Precision granite work surface plate
• M8 stainless steel granite inserts
• 20pc 1mm electrodes, 1pc 1mm guide, 5pc 1mm seals included
• Keyless drill chuck included

FILTRATION TECHNOLOGY
• 65 gallon closed loop filtration and water deionizing system
• Digital water level monitoring via optic sensor
• Digital conductivity monitoring with (optional 0818 resin bottle)
• Digital monitoring of filter pressure via pressure transducer
• 2HP CAT high pressure pump

CONTROLLER TECHNOLOGY (PROBING)
• Renishaw GoProbe iHMI: on-machine probing application that provides users with a simple and intuitive method of using a Renishaw machine tool software with Picture Executor.
• The GoProbe app also includes animations of each probing cycle for visual reference, allowing the user to use the electrode as a machine tool probe.

CONTROLLER TECHNOLOGY (DRILLING)
• Multi-depth controlled drilling with parameter stepping

AUTOMATIC ELECTRODE CHANGER (OPTIONAL)
• Chucking rack system proven, stable, repeatable, low maintenance tool changer
• Depth probing allows for mid-hole tool changes without losing depth accuracy
• Fully programmable allows for multiple programmed tool changes
• Variable electrode lengths machine calculated electrode compensation for accurate lengths
• Includes 20 chucks for each position (no other tooling required to operate)

AUTOMATIC GUIDE CHANGER (OPTIONAL)
• Actuator Gripper System offers significant benefits over traditional chucking based systems
• Stationary guide system quick setup and tear down
• Custom guides setup allows for custom guides with automatic program adjustment
• Includes 3pc 0-3mm guide arbors, 1pc 3-6mm guide arbor

6MM SPINDLE TOOLING SET (OPTIONAL)
• Increases maximum electrode capacity from 3mm to 6mm
• 2pc ER11 collet chuck with arbors
• ER11 stainless steel wire cut collet set (15pc, 0.2mm increments)
