USED SIEMENS 2721990026

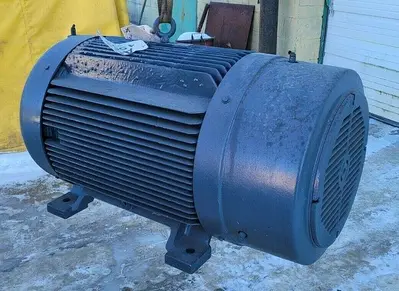

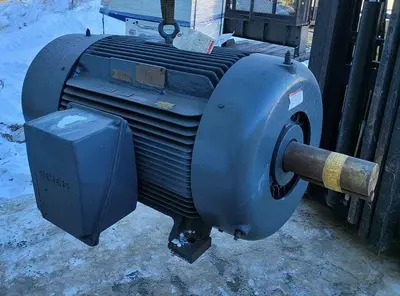

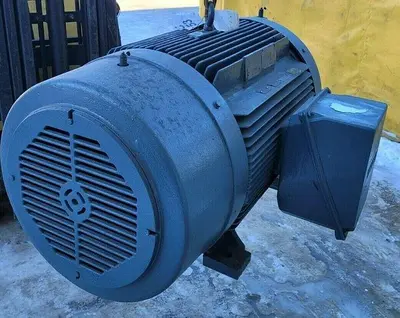

Siemens Heavy Duty Inverter Duty Motor
Model #: 2721990026
Frame: B447T
200 Hp
460V, 3 ph @ 1785 RPM, 225 Amps
4 Poles
Motor Weight: 2000 lbs
Service Factor: 1.15
Variable Torque

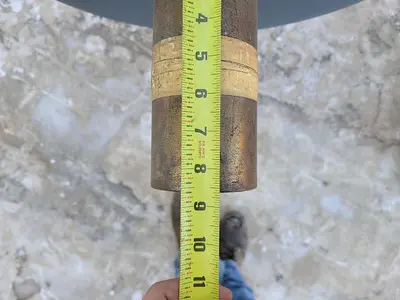

Shaft Length: 8 5/8''
Shaft Diameter: 3 3/8''

Seller notes: “Rebuilt Refurbished Motor”
Inverter/vector duty rating: Inverter Duty
Actual rated input voltage: 460
Full load amps: 225
Nema design letter: Design B (General Purpose)
Rated load (hp): 200
Ac frequency rating: 60 Hz
Base rpm: 1785
Shaft type: Keyed
Ac motor type: Induction/Asynchronous
Shaft diameter: 3 3/8 in
Insulation class: F (Max 311°F)
Mounting type: Foot-Mounted
Current type: AC
Service factor: 1.15
Nominal rated input voltage: 480v, 460 V
Nema frame suffix: T
Ac phase: Three Phase
