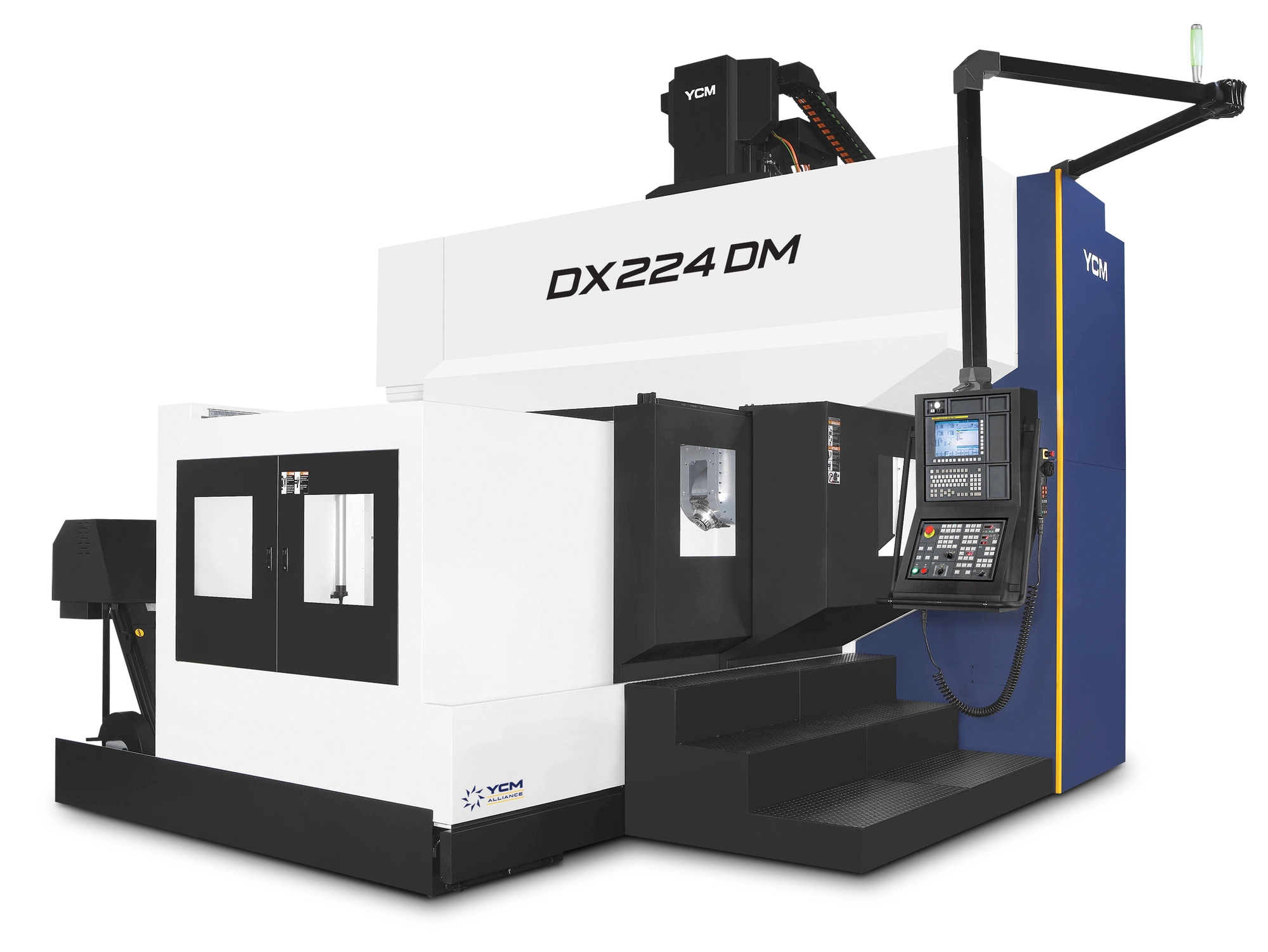

NEW YCM ALLIANCE DX224DM
Overview
Description
The 5-axis DX Series double column vertical machining centers delivers high-caliber performance providing superb cutting ability with reduced vibration. Every machine tool is precision built and handcrafted for rigidity, thermal stability, and repeatability. The DX series produces consistent high-quality results from the first part to the last.
Specifications
| X | 86.6" | 2,199.6 mm |
|---|---|---|
| Y | 94.5" | 2,400.3 mm |
| Z | 30" | 762 mm |
| Power | 54 hp | 40.3 kW |
| RPM | 16,000 RPM | 16,000 RPM |
| # ATC | 60 | 60 |
| Taper | DM HSK100 / AERO HSK63 | DM HSK100 / AERO HSK63 |
| Table-W | 78.74" | 2,000 mm |
| Table-L | 59.1" | 1,501.1 mm |
