USED LINCOLN ELECTRIC AN8S3TC61Q15
Overview
Description

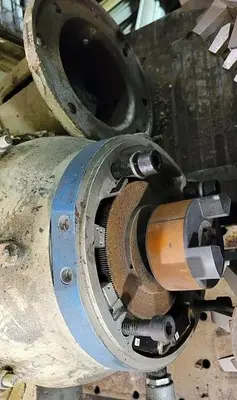

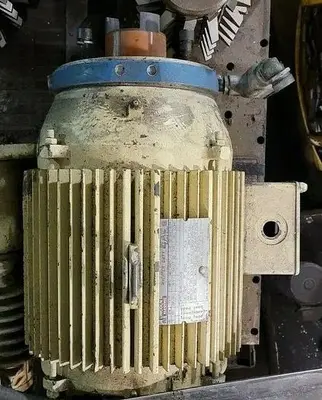

Lincoln Inverter Duty Electric Motor & Gear Reducer

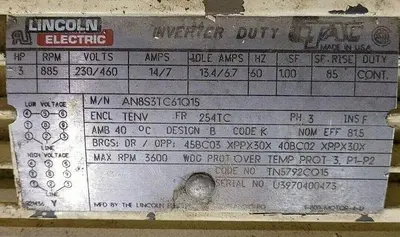

Model #: AN8S3TC61Q15
885 RPM
3 Hp
230/460V
Three Phase
Frame: 254TC
Enclosure: TENV
Max RPM: 3600
S/N: U3970400473

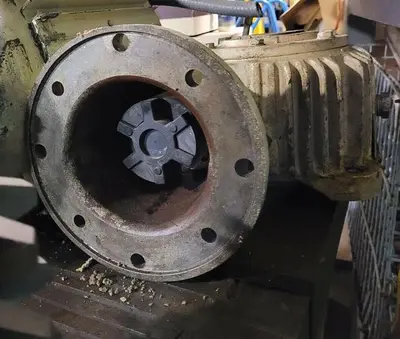

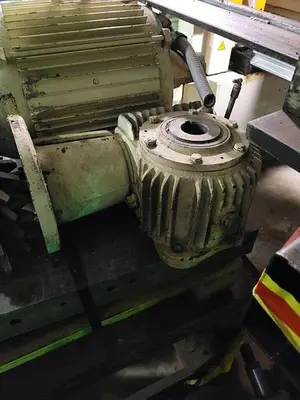

Matched Gear Reducer Included

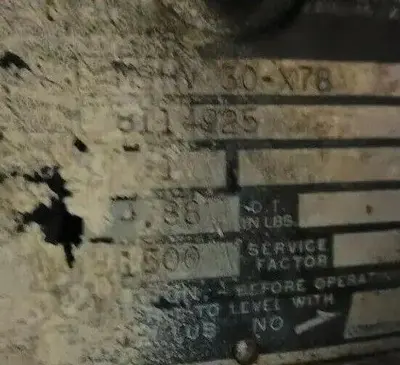

Model #: MSHV 30-X78
S/N: 8114925
Ratio: 4.88
Output RPM: 1500
Specifications
Actual rated input voltage: 230/460
Inverter/vector duty rating: Inverter Duty
Special motor construction: Inverter Duty
Base rpm: 885
Custom bundle: No
Insulation class: F (Max 311°F)
Current type: AC
Service factor: 1.00
Nema frame suffix: TC
Full load amps: 14/7
Iec frame size: 254TC
Rated load (hp): 3
Nema design letter: Design B (General Purpose)
Ac frequency rating: 60 Hz
Shaft type: Straight
Ac motor type: Inverter
Mounting type: Base-Mounted, Face-Mounted
Modified item: No
Dc stator/winding type: N/A
Reversible/non-reversible: Reversible
Nominal rated input voltage: 230 V, 460 V
Ac phase: Three Phase
