1100 KVA Westinghouse Electrical Transformer H.V. 13200 DELTA / L.V. 460/266

Overview
Manufacturer:
WESTINGHOUSE
Year:
1984
Description

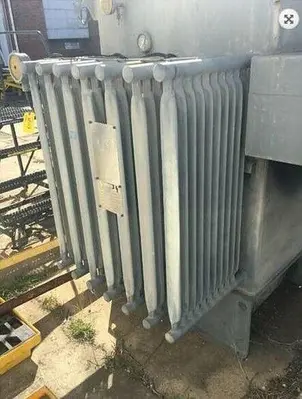

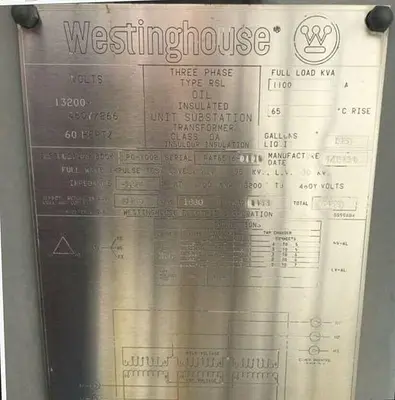

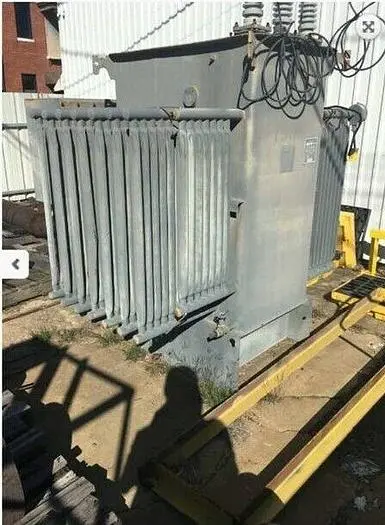

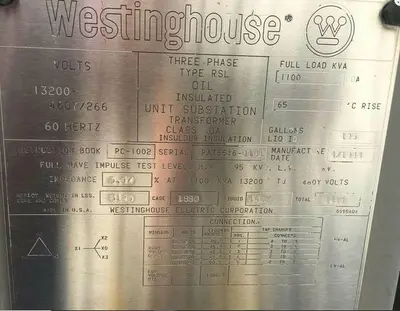

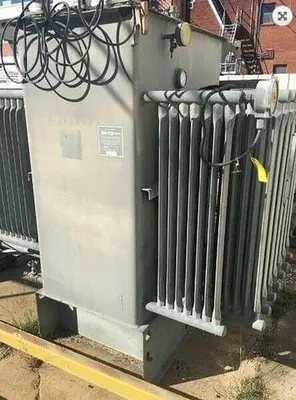

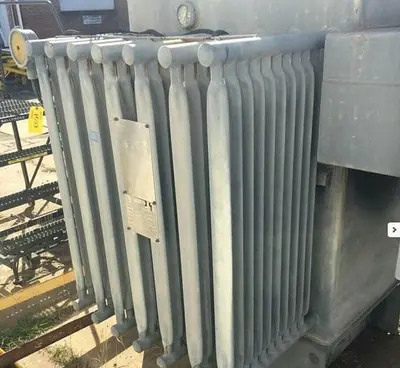

1100 KVA Westinghouse OA-3 Electrical Transformer
High Voltage (H.V.):  13,200
Low Voltage (L.V.):   460Y / 266
S/N: PAT6516-0101 (1984)
Oil Insulated:  195 Gallons
Weight: 6500 lbs.
Floor Standing / Pad Mount Design

Specifications

Seller notes: “USED - IN GOOD WORKING CONDITION WHEN DISCONNECTED FROM POWER.”
Power rating: 1100 kVA
Mounting style: Floor Standing
Nominal current rating: 1100 KVA
Current conversion: AC to AC
Voltage rating: 13,200 DELTA - 460Y/266
Number of phases: 3
Conversion function: Step-down
Modified item: No
Nominal primary impedance: 60 mΩ
Termination type: Hard Wire
Ip rating: CLASS AA
Nominal secondary impedance: 60 mΩ
