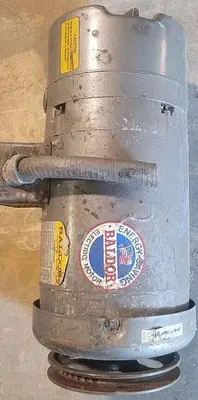

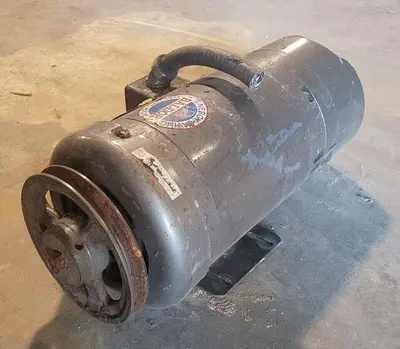

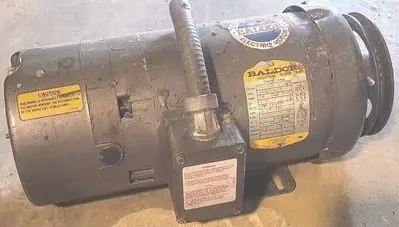

USED BALDOR BM3542

Baldor Electric Motor with Motor Brake

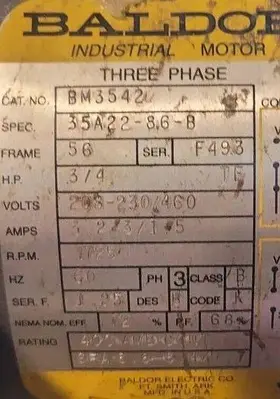

Cat #: BM3542
Frame: 56
S/N: F493
3/4 Hp, 208-230/460V, 3 ph, 60 Hz
RPM: 1725
Service Factor: 1.25
Totally Enclosed Motor

Actual rated input voltage: 208-230/460
Inverter/vector duty rating: Not Inverter/Vector Duty Rated
Special motor construction: Brake Motor
Base rpm: 1725
Custom bundle: No
Insulation class: F (Max 311°F)
Current type: AC
Service factor: 1.25
Nema frame suffix: T
Full load amps: 3
Rated load (hp): 3/4
Iec frame size: 56
Nema design letter: Design B (General Purpose)
Ac frequency rating: 60 Hz
Enclosure type: TE (Totally Enclosed)
Shaft type: Keyed
Ac motor type: Induction/Asynchronous
Shaft diameter: 1 1/2"
Mounting type: Base-Mounted
Modified item: No
Dc stator/winding type: Permanent Magnet
Reversible/non-reversible: Reversible
Protection against liquids: Dripping Water
Nominal rated input voltage: 460 V
Ac phase: Three Phase
Protection against solids: Dust Protected
