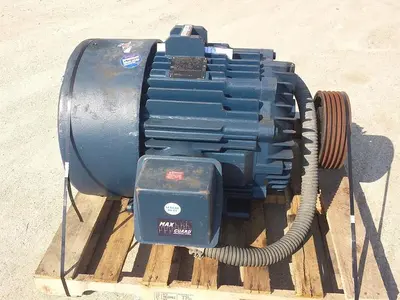

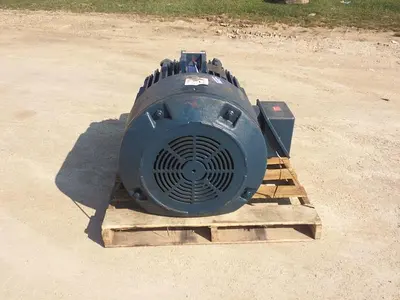

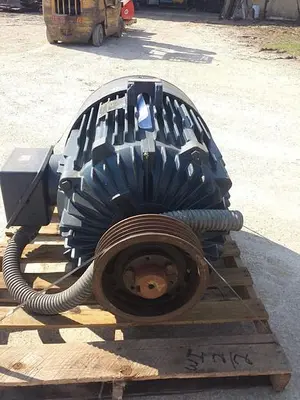

USED MARATHON ELECTRIC E630, 445TTFN6536

Marathon 150 Hp Hazardous/Severe Duty Electric Motor

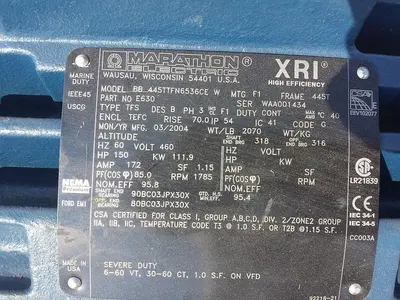

Hp:  150
Voltage:  460, 3 ph, 60 Hz
MPN:  E630, 445TTFN6536
Frame:  445T
RPM:  1800
Rigid Base
Installation:  MARINE/HAZARDOUS/SEVERE DUTY
XRI Efficiency
kW:  112
FL Amps:  172
FL Eff: 95.8 %
Continuous Duty Service Factor 1.15
Insulation Class:  F
Enclosure TEFC
Ambient Temp:  40* C
Mounting Rigid
NEMA Design:  B
Orientation HORIZONTAL
Starting Type LINE OR INVERTER
Assembly F1 (F2 Modification Available)
KVA Code: G
Drive End Bearing: BALL IP Code 54
Opposite End Bearing: BALL
Drive End Bearing Size: 318
Opposite End Bearing Size: 316
Hazardous Location: DIVISION 2 T2B
Inverter Speed Range: CONSTANT 2:1 CE Y CSA Y UL
Recognized Construction Thermal Protection

Nominal rated input voltage: 460 V
Nema frame suffix: HP
Type: General Purpose Motor
Service factor: 1.15
