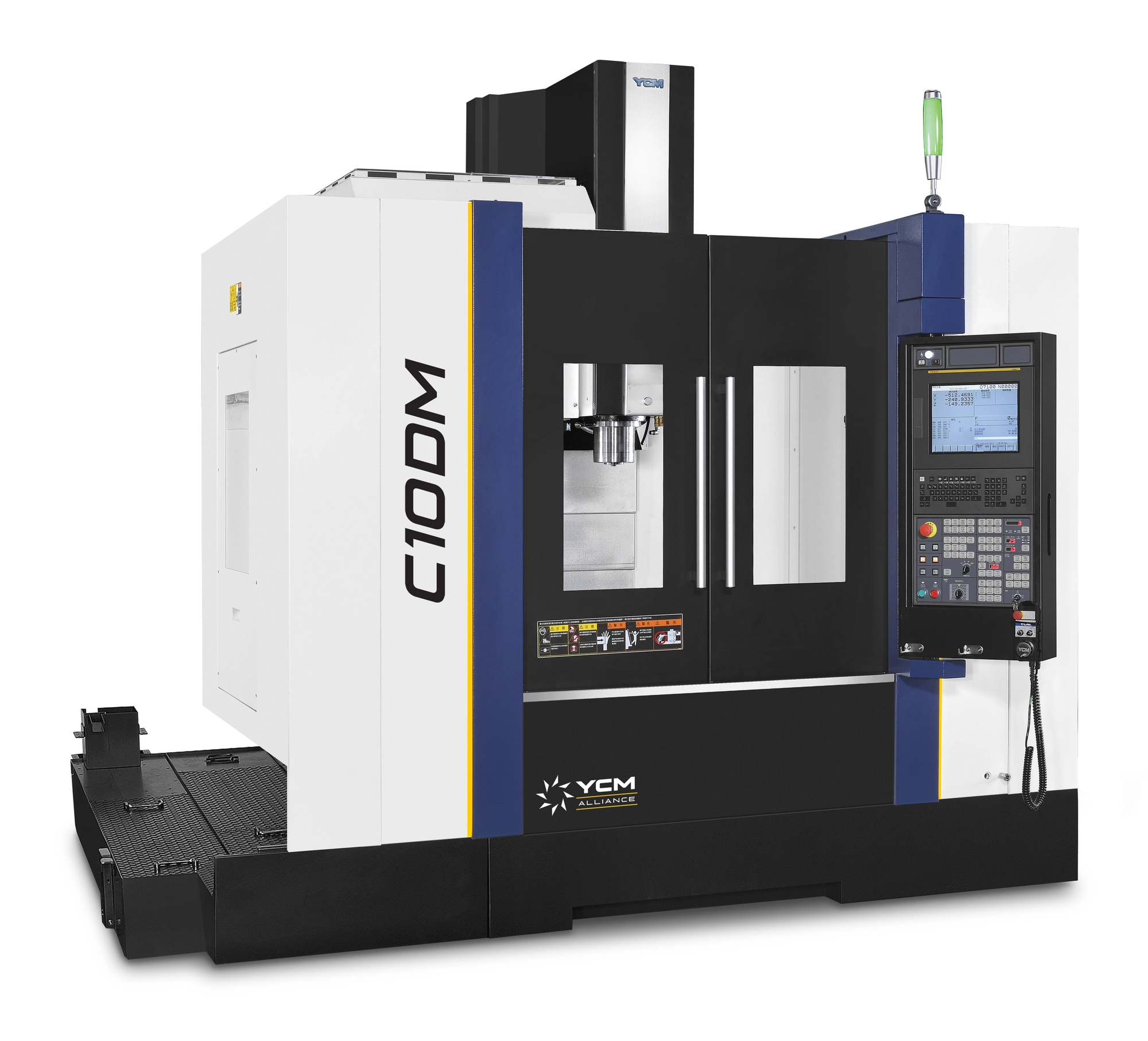

The C Series vertical machining centers deliver high-caliber performance providing superb cutting ability and accuracy. The C Series is built with an extra large delta shaped casting at the base of the machine’s column to ensure the highest level of stability during machining. Every machine tool is built and handcrafted for rigidity, thermal stability, and repeatability. The C Series produces consistent high-quality results from the first part to the last.
| X | 40.1" | 1,018.5 mm |
| Y | 23.6" | 599.44 mm |
| Z | 23.6" | 599.44 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 30 | 30 |
| Taper | Dual Contact CAT-40 / BBT-40 | Dual Contact CAT-40 / BBT-40 |
| Table-W | 40.16" | 1,020.1 mm |
| Table-L | 25.59" | 649.99 mm |
| # Axis | 3 | 3 |
STANDARD OPTIONS
• Circular Coolant Nozzle
• Shower Coolant System
• Heavy Duty Coolant Pump
• ATC Auto Door
• 30T ATC
• 15,000rmp Spindle
• Cutting Air Blast
• Spindle Air Blast
• Spindle Air Seal (Labyrinth)
• 4 - Standard M-Codes
• Spindle Cooling System
• Oil Skimmer
• Interior Work Light
• 3-Color Status light
• Automatic Power Off
• Interlocking Door Safety Switch
• Central Auto-Oil Lubrication System
• Guideway Covers on X/Y/Z
• (2) Y-Axis Chip Augers
• (1) Chip Conveyor
• Full Chip Enclosure
• Leveling Blocks and Bolts
• Heat Exchanger for Electrical Cabinet
• Mechanical, Electrical & Operating Manuals (CD)
• Tool Kit
