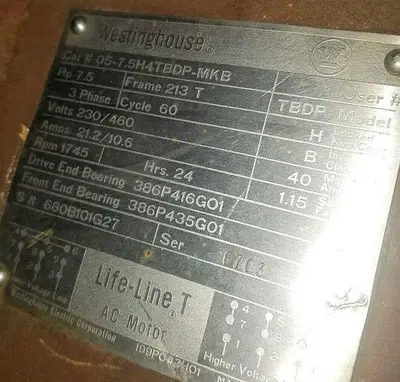

USED WESTINGHOUSE 05-7.5H4TBDP-MKB

Westinghouse Electric Motor
7.5 Hp
Catalog #: 05-7.5H4TBDP-MKB
3 Phase
213T Frame
230/460 Volt

Ac motor type: Induction/Asynchronous
Enclosure type: TBDP
Modified item: No
Nema design letter: H
Full load amps: 21.2
Ac frequency rating: 50/60 Hz
Current type: AC
Ac phase: Three Phase
Insulation class: B (Max 266°F)
Iec frame size: 213T
Rated load (hp): 7 1/2
Special motor construction: Explosion-Proof Motor
Nominal rated input voltage: 230/460
Reversible/non-reversible: Reversible
Service factor: 1.15
Base rpm: 1745
Shaft type: Straight
