USED HEIAN BS-65

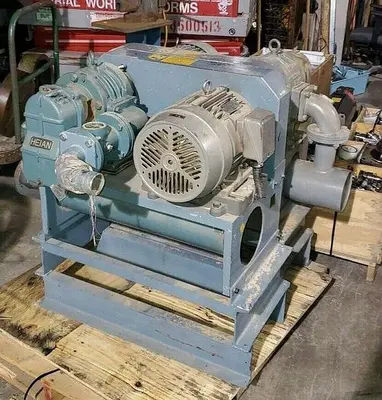

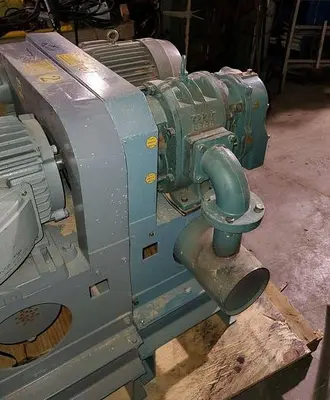

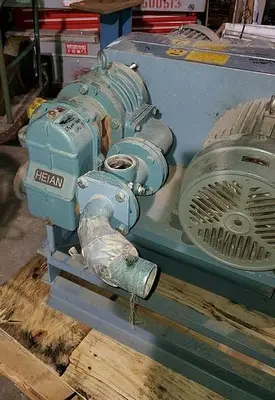

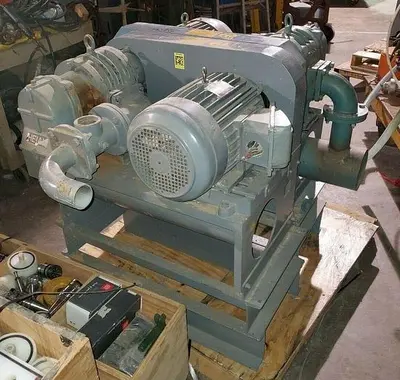

HEIAN 10 Hp. Electric Positive Displacement Vacuum/Blower

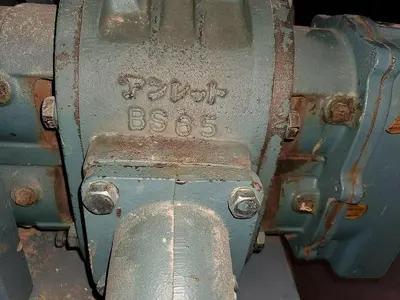

Model #: BS65 (from CNC Router)

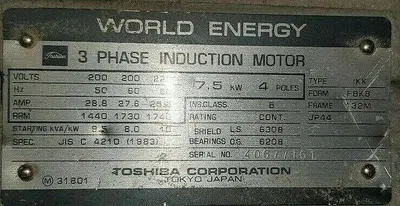

Motor: 7.5 kw (10 Hp), 200-220V, 3ph, 50/60 Hz, 4 Pole, 1440-1740 RPM
2x Units Available - Sale is for ONE (1) unit ONLY!

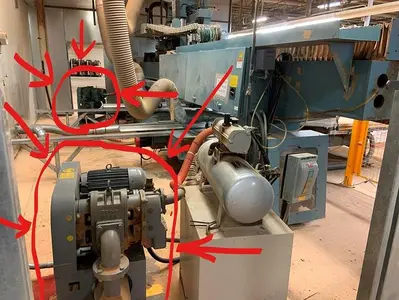

Blowers are circled in Red on last picture are items for sale in said photo.Technical SpecificationsBased on the electrical and mechanical configurations for this model:Motor Power: 7.5 kW (10 Horsepower)Voltage: 200–220V (Standard for Japanese industrial equipment)Phase: 3-PhaseFrequency: 50/60 HzMotor Poles: 4 PoleOperating Speed: 1,440 – 1,740 RPMType: Rotary Positive Displacement (Twin Lobe or Triple Lobe)Country of Origin: JapanPerformance Data (Estimated)While exact CFM depends on the final pulley ratio and vacuum level, a 10 HP PD blower of this frame size (65mm port size class) typically delivers:Airflow Capacity: Approximately 120 – 160 CFM (at open flow).Vacuum Depth: Typically capable of 12" to 15" Hg (inches of Mercury).Port Size: Generally 2.5" to 3" (65mm) inlet and outlet.Key Application: CNC Vacuum TablesThe BS65 is a "high-vacuum, low-flow" style blower compared to regenerative blowers. It is specifically chosen for CNC router tables because:Constant Suction: Unlike centrifugal fans, a PD blower maintains high vacuum even when parts of the table are uncovered.Heat Dissipation: These units are designed for continuous duty but require a vacuum relief valve to prevent overheating if the table is completely sealed.

Rated horsepower: 7.5 kW
Modified item: No
