USED TWIN CITY FAN & BLOWER BAV-SW, BCV
Overview
Description

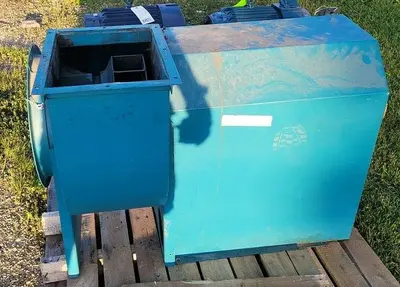

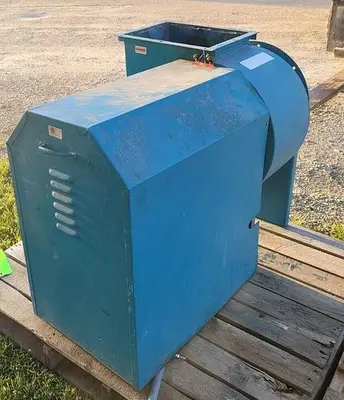

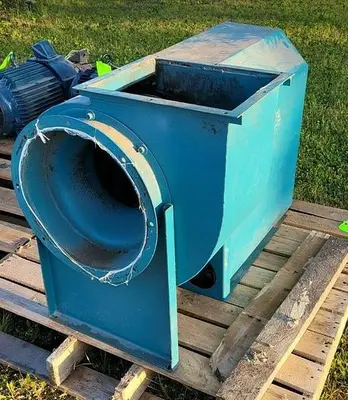

Twin City Fan & Blower Co. Blower Fan
Size: 135

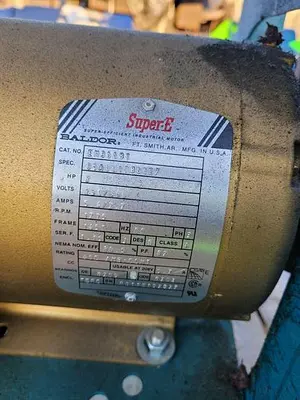

2 Hp Motor
1775 RPM
230/460V, 3 ph

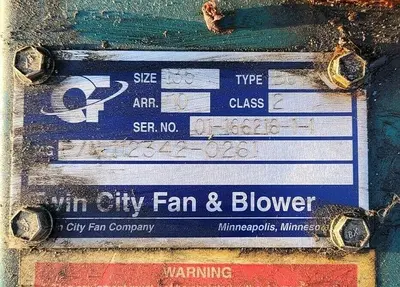

P/N: 112342-0261
Type: BCV
Class 2
S/N: 01-166216-1-1Unit Specifications: Size 135 BCVManufacturer: Twin City Fan & Blower (TCF)Type: BCV (Belt Driven Centrifugal Utility Set)Wheel Type: Backward Inclined Flat Blade (Non-overloading)Size: 135 (Indicates a 13.5-inch nominal wheel diameter)Class: 2 (Built for higher static pressures and tip speeds than Class 1)Motor: 2 HP Industrial MotorSpeed: ~1775 RPM (Standard 4-pole motor speed, usually reduced via belt drive)Electrical: 230/460V | 3-Phase | 60HzConstruction: Heavy-gauge welded steel housing (Class II units typically feature continuously welded housings)Performance EstimatesBecause this is a Class 2 unit, it is engineered to handle more "aggressive" static pressures than a standard utility set.Airflow Capacity: Typically ranges from 1,200 to 2,800 CFM depending on the static pressure (SP) it is working against.Static Pressure: Capable of operating efficiently up to 4.0" – 5.0" w.g. (water gauge), whereas Class 1 units often peak at 2.5" – 3.0".Temperature Rating: Standard construction is rated for up to 300°F. (If equipped with a shaft cooler/heat gap, it can go higher).Key Features of the BCV-135Non-Overloading Design: The backward-inclined wheel ensures that the motor will not burn out if the system's static pressure drops (i.e., if a duct is removed), as the horsepower curve flattens out at higher volumes.Adjustable Performance: Being a belt-driven (BCV) unit rather than direct-drive (DCV), you can change the fan speed by swapping the pulleys (sheaves), allowing you to "dial in" the exact CFM needed for your shop.Rotatable Housing: The discharge can typically be rotated to any of 8 standard positions (Upblast, Top Horizontal, Bottom Horizontal, etc.) to fit your ducting layout.Compact Footprint: Utility sets like the 135 are designed to be "self-contained," meaning the motor, drive, and fan are all mounted on a single pedestal, making them easy to install on rooftops or equipment pads.
Specifications
Seller notes: “Used - in good working condition when removed from service”
Blower motor speed: Single Speed
Power phase: 3 Phase
Power source: Corded Electric
Type: AIRFOIL
Color: Blue
Voltage: 230 V
