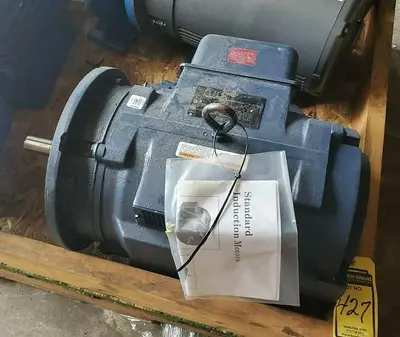

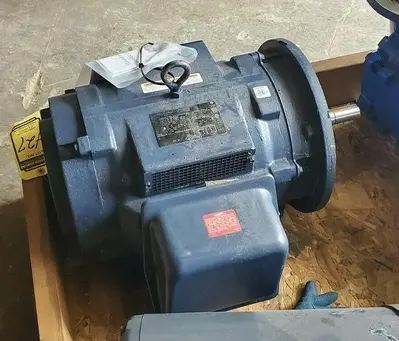

USED LEESON F14L 284TTDP14013AA

Leeson Drip Proof Electric Motor
Model #: F14L 284TTDP14013AA
Part #: G801040.00
Design: B General Purpose
Manufacture Date: 06/2014
30 Hp
230/460V
Service Factor: 1.15
3600 RPM

Enclosure type: DP (Drip-Proof)
Nema design letter: Design B (General Purpose)
Nema frame suffix: J
Ac phase: Three Phase
Iec frame size: 284
Mounting type: Base-Mounted

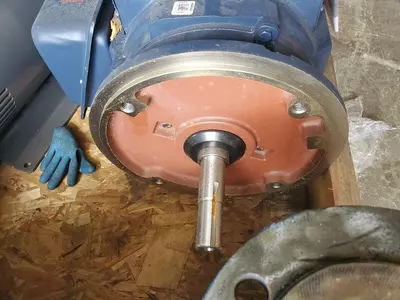

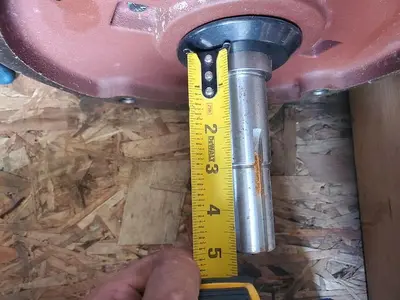

Shaft diameter: 1 1/8 in
Ip rating: IP23
Rated load (hp): 40
Nominal rated input voltage: 230 V
Service factor: 1.15
Base rpm: 3530
Shaft type: Keyed
