USED RELIANCE ELECTRIC P14H1928N-US
Overview

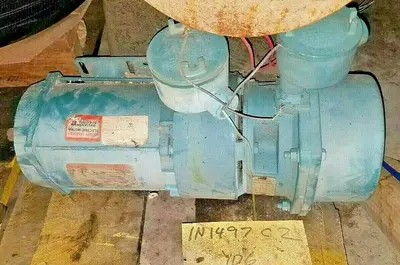

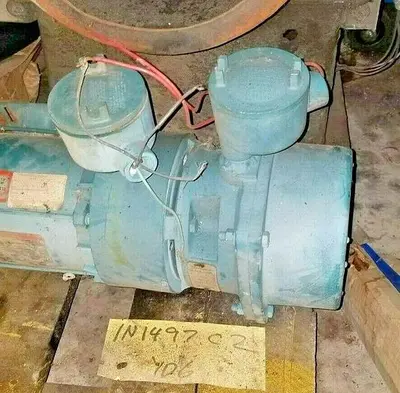

5 Hp Reliance Electric A/C Heavy Duty Master Motor with Electronic Brake
Motor I.D. #: P14H1928N-US
Frame: H3145TC
Power Requirements: 230/460V, 3 ph, 60 Hz
RPM: 1725
5.6 Load Amps
Continuous Duty
Specs
Ac motor type: Synchronous
Enclosure type: TE (Totally Enclosed)
Full load amps: 5.6
Nema frame suffix: C
Ac frequency rating: 50/60 Hz
Current type: AC
Dc stator/winding type: Straight/Shunt Winding
Actual rated input voltage: 230/460
Ac phase: Three Phase
Insulation class: B (Max 266°F)
Iec frame size: 145TC
Shaft diameter: 3/4 in
Rated load (hp): 5
Special motor construction: Brake Motor
Nominal rated input voltage: 460 V, 230 V
Reversible/non-reversible: Reversible
Service factor: 1.15
Base rpm: 1725
Shaft type: Keyed
