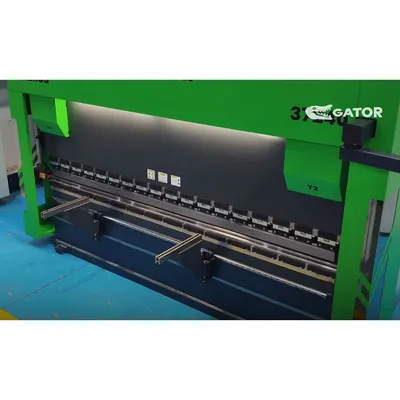

The GATOR FAB 13 ft x 220 Ton 6-Axis Hydraulic CNC Press Brake G-ULTIMATE CAP 41200 machine body is manufactured using advanced technology with high precision tolerances and stress relief has been applied to large welded components. All stress points are designed with wide radii to eliminate stress concentrations and potential weld cracks.
| Pressure/Tonnage | 220 T | 199.581 t |
| Bending Length | 161" | 4,089.4 mm |
| # Axis | 6 | 6 |
| Throat Depth | 16.14" | 409.96 mm |
| Stroke | 10.23" | 259.84 mm |

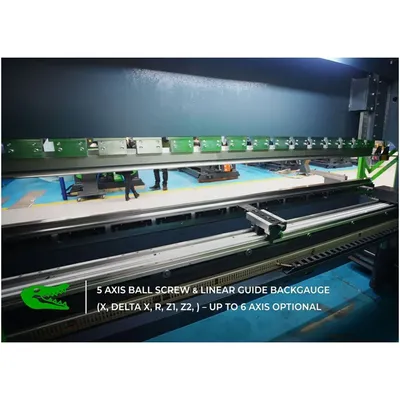

| Back Gauge X-Axis Distance | 30" | 762 mm |
| Daylight | 20.85" | 529.59 mm |
| R-Axis Speed | 7.88 | 7.88 |
| Distance Between Columns | 139" | 3,530.6 mm |
| Axis | Y1, Y2, X, R, Z1, Z2 | Y1, Y2, X, R, Z1, Z2 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts
