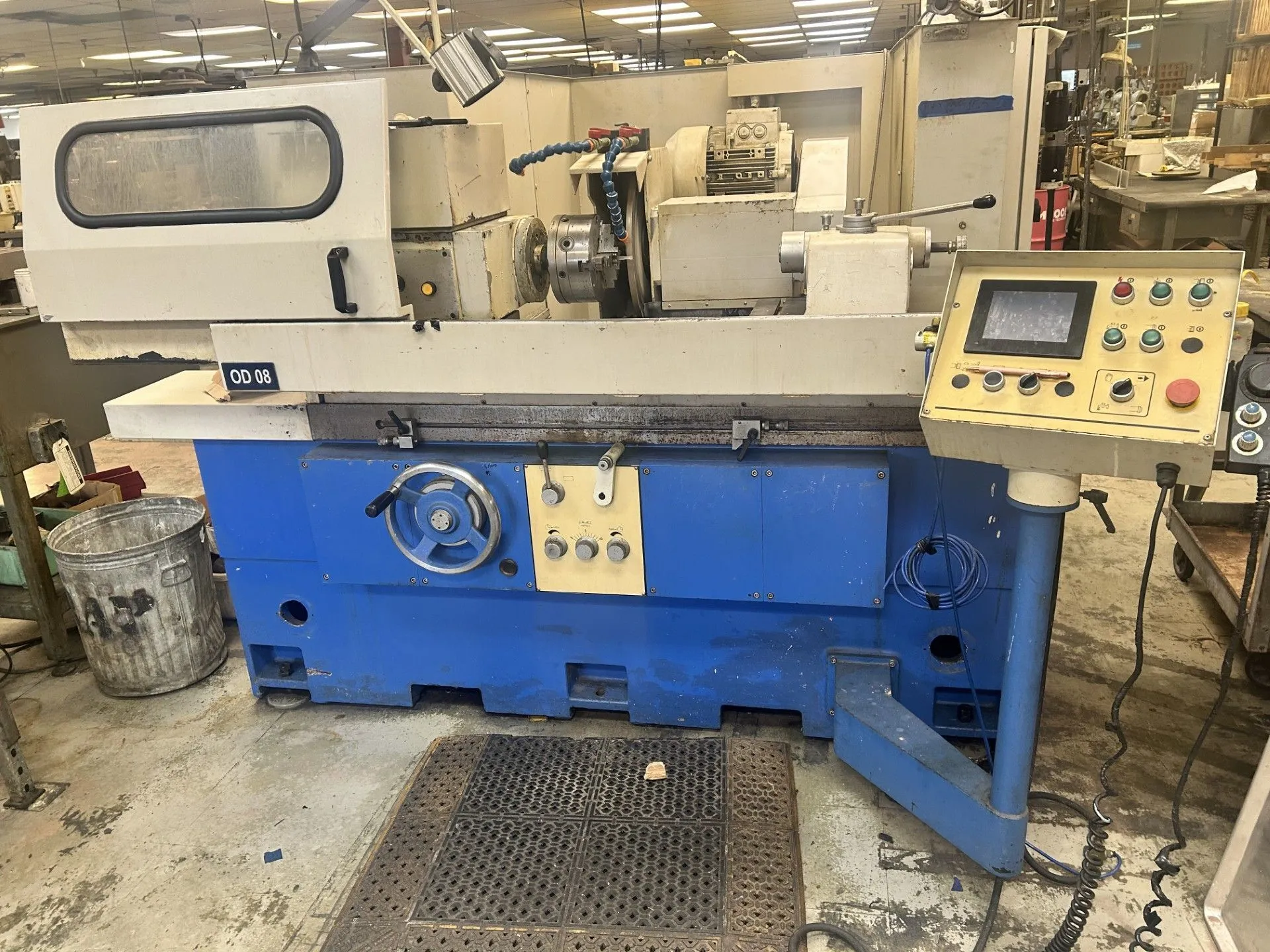

USED 2012 SUPERTEC G38P-60NC

Supertec G38P-60NC CNC Universal Cylindrical Grinder
New 2012

GENERAL CAPACITY
Distance Between Centers: 24"
Swing Over Table: 15"
Max. Grinding Diameter: 14"
Max. Load Held Between Centers: 330 lbs

WHEELHEAD
Hand feed travel: 7.8"
Auto incremental infeed (CII) 0.0001" ~ 0.0999"
Handwheel per division: 0.0002"
Handwheel per revolution: 0.08"
Infeed travel: 9.6"
Top slide sliding travel: 7"
Swiveling angle (R&L): ±30°
Automatic rapid travel: 1.75"

GRINDING WHEEL
Diameter x Width x Bore: 16" x 2" x 5"
Wheel speed: 1650 rpm

TABLE
Swivelling angle (R&L): ±9°
Traverse speed (infi variable): 1.2"~275"/min
Handwheel per revolution: 0.39"

WORKHEAD
Swiveling angle (R&L): 90°
Center taper: MT4 (option MT5, 5C)
Spindle speed (infi variable): 30~350 rpm

TAILSTOCK
Center taper: MT4 (option MT5)
Quill travel: 1"

INTERNAL GRINDING SPINDLE
Spindle speed:G32P/G38P 12000/18000 rpm or 25000 rpm
Max. grinding bore: 4.33" or 2.17"
Max. chucking length: 8"~12.4"
Max. chucking diameter: 6"

MOTOR
Wheel spindle motor: 7.5HP(4P)
Workhead motor: 2HP(4P)
Hydraulic pump: 2HP(4P)
Coolant pump: .25HP(2P)
Internal grinding motor: 2HP(2P)

MACHINE
Net weight: 8580lbs
Gross weight: 9460lbs
Packing dimension: 119"x90"x79"(L x W x H)

STANDARD ACCESSORIES:
- Grinding wheel w/flange
- Tool box w/ adjusting tools
- Dial gauge
- Carbide tip centers
- Splash guard
- Leveling screws w/ blocks
- Balancing arbor
- Diamond dresser(fixed on table)
- Wheel extractor
- Operation manual with parts list
- Auto lube system
- Coolant system
