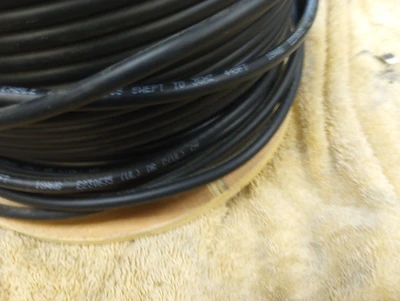

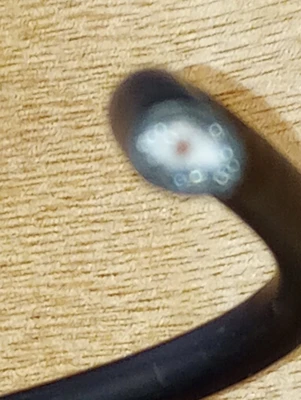

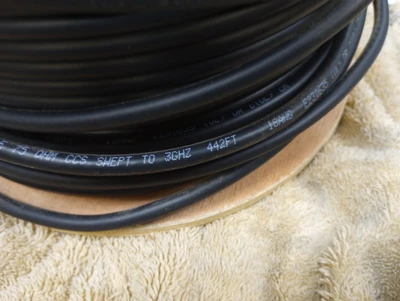

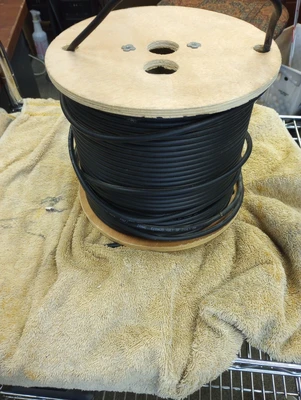

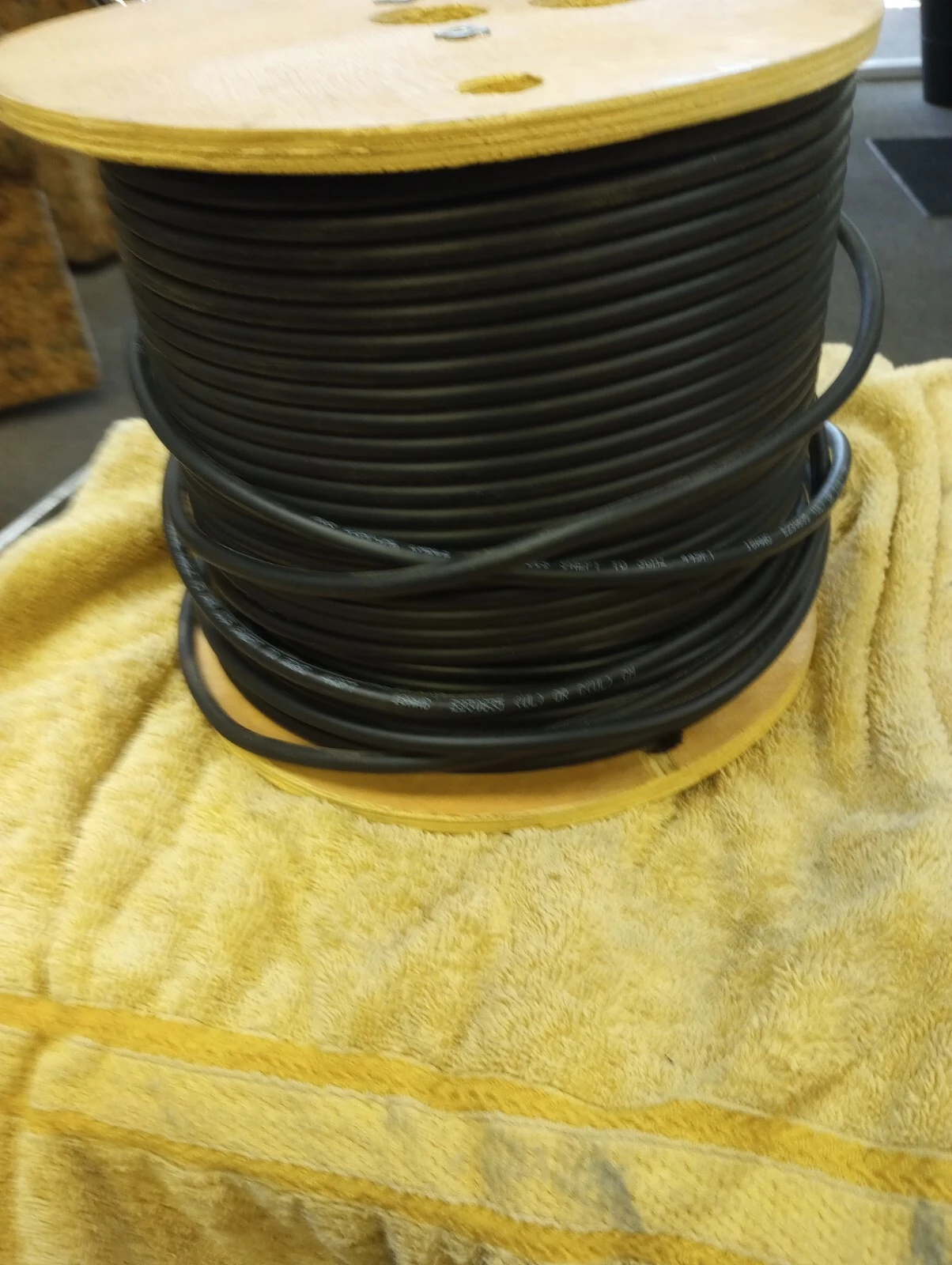

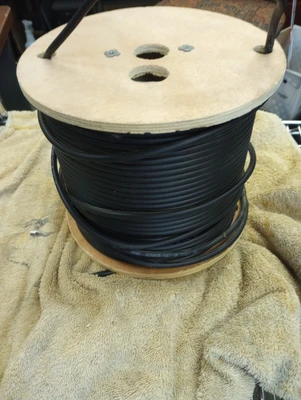

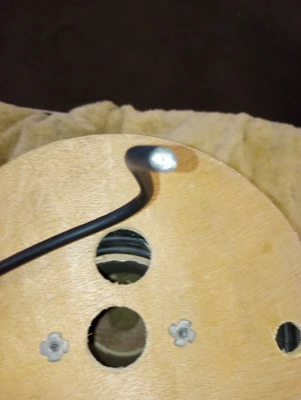

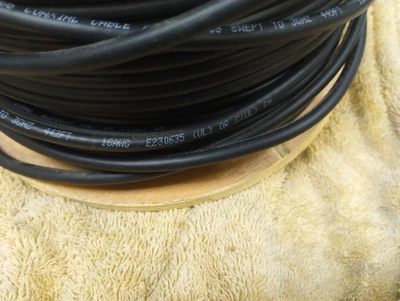

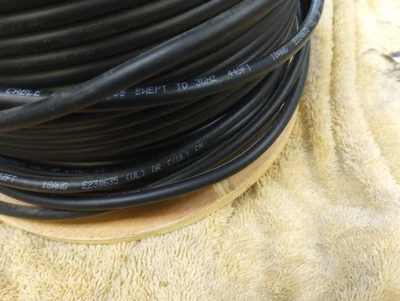

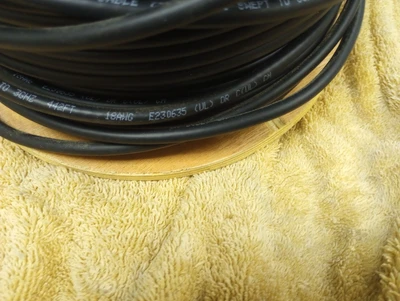

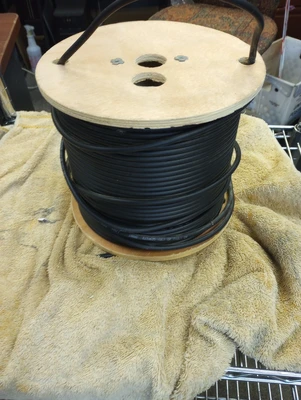

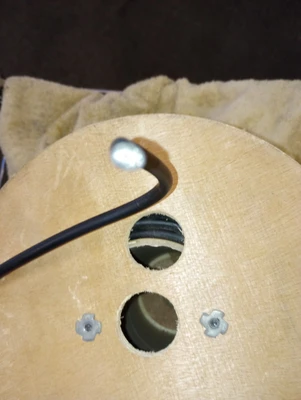

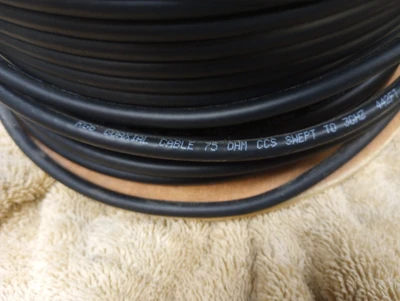

SELLING 1 OPEN BOX , 10 FEET ,CERRO WIRE E230635 18AWG, RG6 COAXIAL CABLE 75 OHMS SWEPT TO 3GHZLOC: WALL WIRE CABLE RACK ; J203APPLICATIONS Permitted for use with audio/video, radiofrequency, and CCTV transmissions. Meets or exceeds UL® and NEC requirements. MECHANICAL ASSEMBLY Conductors: 1-18 AWG copper-clad steel .040" Dielectric: 70-mil wall of foamed polyethylene to a nominal diameter of .180" Shield: Bonded aluminum/polyester Braid: Aluminum braid with 60% coverage Jacket: 30-mil 80 °C flame-retardant polyvinyl chloride (PVC) to a nominal diameter of .272" Put-Up: 500-ft. reels or 100' coils. Other put-ups available via special order. ELECTRICAL ASSEMBLY Voltage Rating: 300 volts D.C. Resistance (Nom): 30.41 ohms per 1,000 ft. at 68 °F Velocity of Propagation (Nom): 85% Impedance (Nom): 75 ohms Capacitance (Nom): 50 pF/ft "DUAL SHLDS RG/6U TYPE SWEPT TO 2.2 GHZ" CM/CL2/CATV 18 AWG (UL) c(UL) CMH MADE IN CHINA RoHS COMPLIANT INDUSTRY STANDARDS/CERTIFICATIONS UL® Standard 444 UL Standard 13 UL 1685 (UL 1581 Vertical Tray) Flame Test NEC Article 800 NEC Article 725 RoHS Compliant GrenSpec™ Listed SURFACE PRINT RG6 COAXIAL CABL
| Dimensions | 12.0 x 4.0 x 4.0 INCH | 12.0 x 4.0 x 4.0 INCH |
| Weight | 1.25 POUND | 1.25 POUND |
