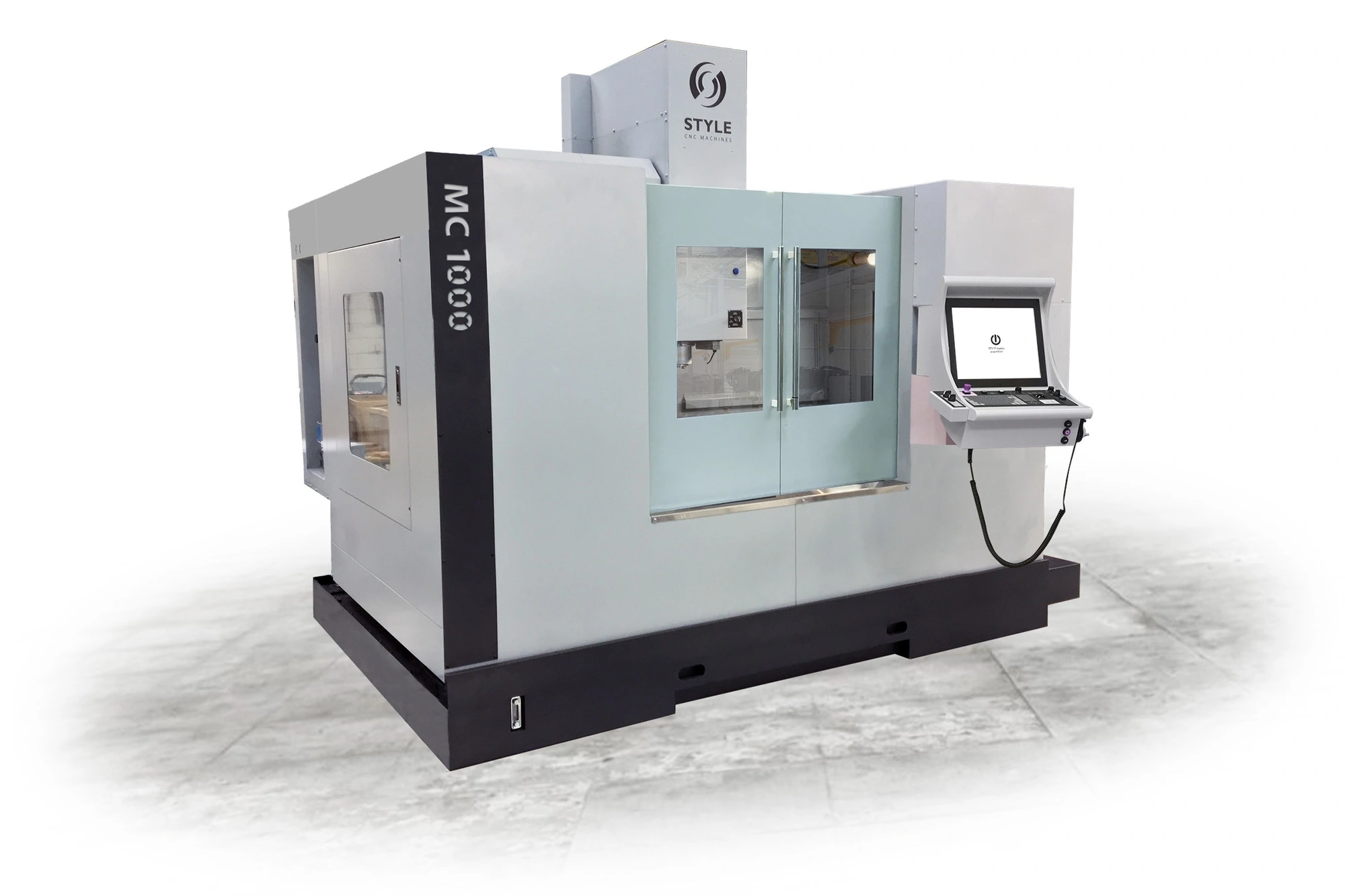

The STYLE MC series are the right machining centers for the demanding machine operators. Machining centers are known for their wide working range and versatility when it comes to machining parts. These machining centers are suitable for single pieces and small series. The STYLE MC 1000 is a CNC controlled machine with a very accessible operation and always a good view of the drawing and product.
STYLE MC 1000 machining center at a glance:
• Class C3 prestressed ball screws prevent thermal expansion for high milling accuracy
• The X / Y / Z axis is driven directly by the axis motors, which ensures high positioning
• Stroke X-axis: 1000 mm, Stroke Y-axis: 560 mm, Stroke Z-axis: 550 mm
• Table size 1200 x 520 mm
• 12000 rpm at 22 kW
The machining center with very accessible controls
The STYLE MC 1000 machining center is equipped with a very stable cast iron frame with linear guides. The machine was built and designed by real Dutch machine builders. The machining center MC series is a line of closed, compact milling machines with an X stroke of 1000 mm respectively, a modern CNC machine for the production and flexible machining of parts. The control system offers novice machineries the accessibility to get started with just a few hours of training and the experienced operator the tools to make high-quality complex products.
Programming from the office
You can place all your programs that you want to mill on a USB stick, but it is also possible to place the computer of the milling machine in your network. This allows you to program your programs outside the machine.
| X | 1,000 mm | 39.37" |
| Y | 510 mm | 20.079" |
| Z | 510 mm | 20.079" |
| Power | 11 kW | 14.8 hp |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | BT – SK/DIN698711 40 | BT – SK/DIN698711 40 |
| Dimensions | (l/w/h) m 3.0 (4.0) x 2.6 x 2.6 | (l/w/h) m 3.0 (4.0) x 2.6 x 2.6 |
| Weight | 6700 kg | 6700 kg |
X-axis movement mm 1000 (1500)
Y-axis movement mm 510
Z-axis movement mm 510
Table size mm 1070 (1570) x 500
Maximum table load kg 600
Height work table mm 910
Distance spindle nose to work table mm 120 – 630
Distance spindle nose to column mm 625
Main spindle
Main motor power (S6) kW 11 / 15 / 18.5
Maximum spindle speed rpm 10000 – 12000
Spindle taper BT – SK/DIN698711 40
X-, Y- and Z- axis
Rapid movement m/min 24
Feed rate m/min 12
Tool changer
Automatic tool changer # 20 / 24 / 30
General
Weight kg 6700 (7300)
Machine dimensions (l/w/h) m 3.0 (4.0) x 2.6 x 2.6
