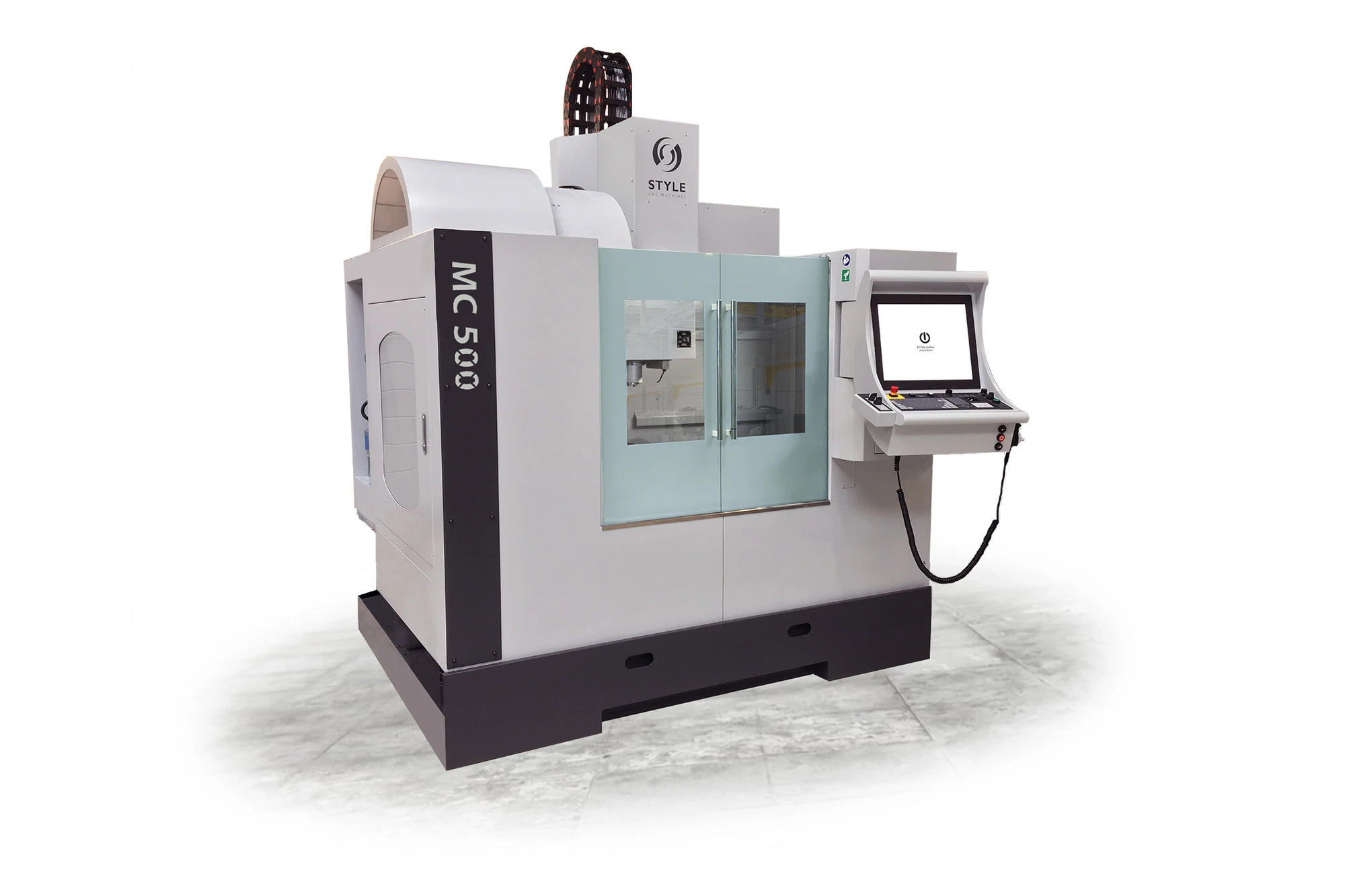

The STYLE MC series are the right machining centers for the demanding machine operators. Machining centers are known for their wide working range and versatility when it comes to machining parts. These machining centers are suitable for single pieces and small series. The STYLE MC 500 is a CNC controlled machine with a very accessible operation and always a good view of the drawing and product.
STYLE MC 500 machining center at a glance:
• Class C3 prestressed ball screws prevent thermal expansion for high milling accuracy
• The X / Y / Z axis is driven directly by the axis motors, which ensures high positioning
• Stroke X axis: 500 mm, Stroke Y axis: 380 mm, Stroke Z axis: 400 mm
• Table size 650 x 380 mm
• 12000 rpm at 3.7 / 5.5 kW
The machining center with very accessible controls
The MC 500 machining center is equipped with a very stable cast iron frame with linear guides. The machine was built and designed by real Dutch machine builders. The machining center MC series is a line of closed, compact milling machines with an X stroke of 500 mm respectively, a modern CNC machine for the production and flexible machining of parts. The control system offers novice machineries the accessibility to get started with just a few hours of training and the experienced operator the tools to make high-quality complex products.
Programming from the office
You can place all your programs that you want to mill on a USB stick, but it is also possible to place the computer of the milling machine in your network. This allows you to program your programs outside the machine.
| X | 500 mm | 19.685" |
| Y | 380 mm | 14.961" |
| Z | 400 mm | 15.748" |
| Power | 3.7 kW | 5 hp |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 20 | 20 |
| Taper | BT – 30 | BT – 30 |
| Dimensions | (l/w/h) m 1.6 x 2.2 x 2.4 | (l/w/h) m 1.6 x 2.2 x 2.4 |
| Weight | 2900 kg | 2900 kg |
X-axis movement mm 500
Y-axis movement mm 380
Z-axis movement mm 400
Table size mm 650 x 380
Maximum table load kg 200
Height work table mm 805
Distance spindle nose to work table mm 150 – 550
Distance spindle nose to column mm 435
Main spindle
Main motor power (S6) kW 3.7 / 5.5 / 7.5
Maximum spindle speed rpm 12000
Spindle taper BT – 30 SK/DIN698711
X-, Y- and Z- axis
Rapid movement m/min 24
Feed rate m/min 10
Tool changer
Automatic tool changer # 20
General
Weight kg 2900
Machine dimensions (l/w/h) m 1.6 x 2.2 x 2.4
