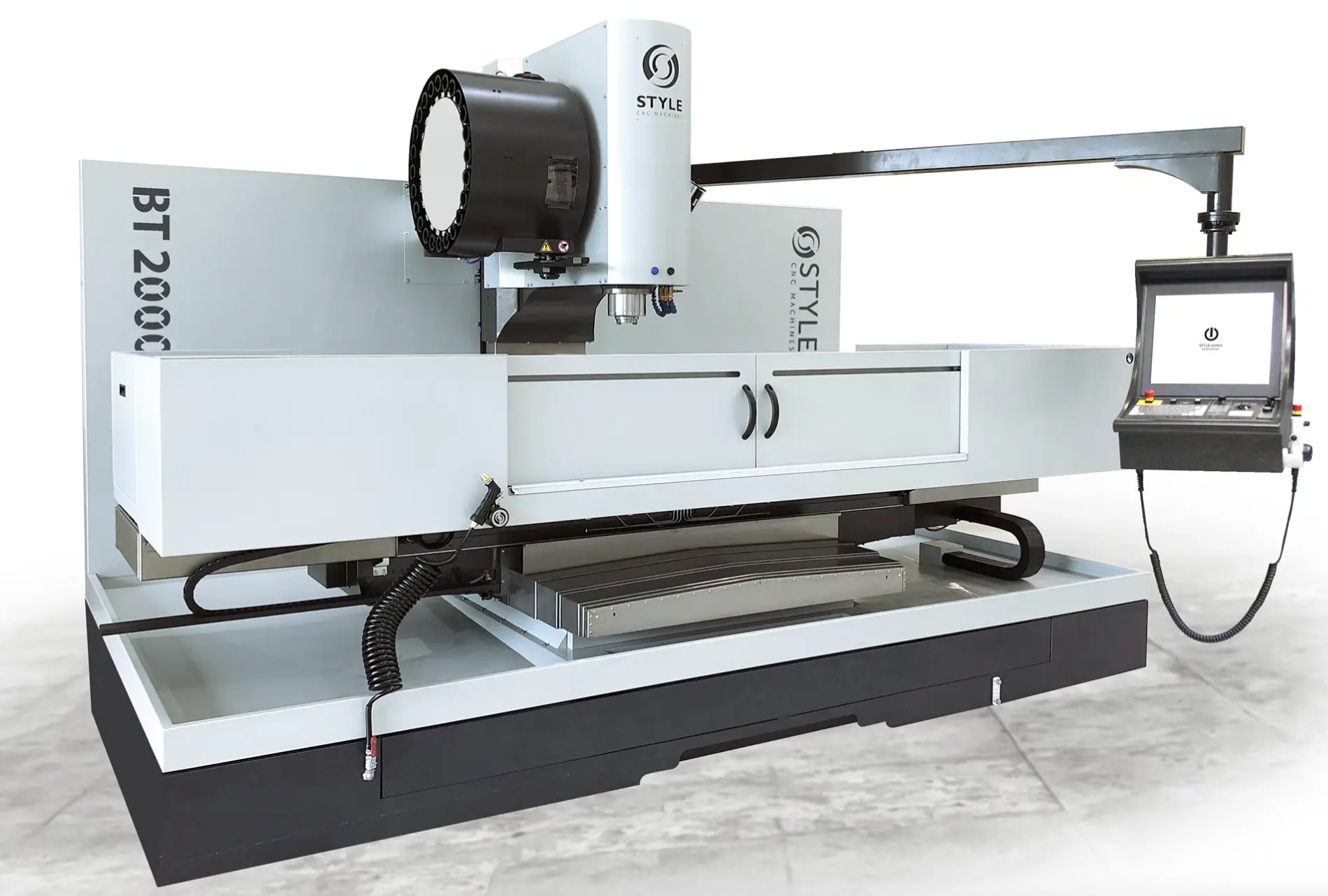

The STYLE BT series consists of six models of milling machines, with a number of models available for a fully enclosed machine. The BT 2000 is a true powerhouse. The simple control makes operations such as planning and drilling possible in a few clicks. Complex operations such as dimensional milling, working with a 4th A-axis and programming with G codes are also extremely simple. These milling machines are designed and developed especially for the production of custom work and small series.
STYLE BT 2000 freesbank at a glance:
• Cast iron frame cast in one piece for high loads
• Accessible controls Stroke X / Y 2000 x 800 mm
• Table load up to 2000 kg
• Maximum speed 12000 rpm
• Fully Dutch development and production
| Table-W | 23.62" | 599.95 mm |
| Table-L | 86.61" | 2,199.9 mm |
| Travel-Long | 78.74" | 2,000 mm |
| Travel-Cross | 31.5" | 800.1 mm |
Machine
X-axis movement mm 2000
Y-axis movement mm 800
Z-axis movement mm 7001 / 8002
Bed width mm 1250
Dimensions work table mm 2200 x 600
Maximum table load kg 15001 / 20002
Height work table mm 900
Distance spindle nose to table mm 120 – 8201
220 – 10202
Distance spindle nose to column mm 880
1 Spindle taper 40, 2 Spindle taper 50
Main spindle
Main motor power (S6) kW 11 / 15 / 18.5 / 22 / 26
Maximum spindle speed rpm 6000 – 120001
6000 – 80002
Spindle taper BT – SK/DIN698713 40 / 50
1 Spindle taper 40, 2 Spindle taper 50, 3 Choose for a BT or SK/DIN69871 spindle taper
X-, Y- and Z- axis
Rapid movement m/min 8
Feed rate m/min 4
Tool changer BT 2000
Automatic tool changer # 24 (6 Choice of vertical / horizontal)
General
Weight kg 85001 / 125002
Machine dimensions (l/w/h) m 3.8 x 3.0 x 2.9
1 Spindle taper 40, 2 Spindle taper 50
