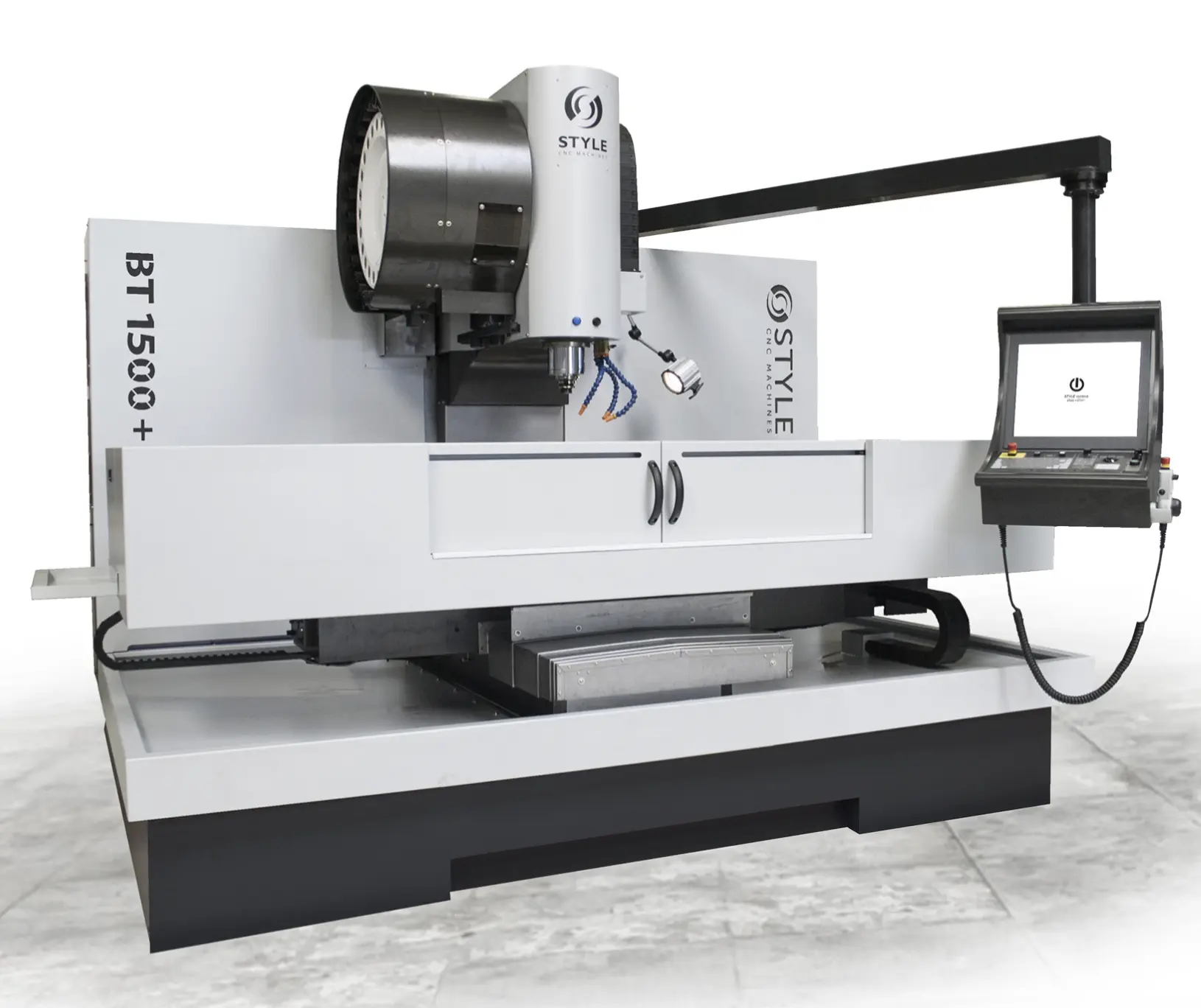

The STYLE BT series consists of six models of milling machines, with a number of models available for a fully enclosed machine. The BT 1500+ is the most reliable powerhouse for demanding milling work. These milling machines are designed and developed especially for the production of custom work and small series.
STYLE BT 1500+ freesbank at a glance:
• Cast iron frame cast in one piece for high loads
• Accessible controls
• Stroke X / Y 1500 x 650 mm
• Table load up to 1000 kg
• Maximum speed 12000 rpm
• Fully Dutch development and production
| Table-W | 24.02" | 610.11 mm |
| Table-L | 72.83" | 1,849.9 mm |
| Travel-Long | 59.06" | 1,500.1 mm |
| Travel-Cross | 25.59" | 649.99 mm |
Machine
X-axis movement mm 1500
Y-axis movement mm 650
Z-axis movement mm 700
Bed width mm 700
Dimensions work table mm 1850 x 610
Maximum table load kg 1000
Height work table mm 850
Distance spindle nose to table mm 80 – 780
Distance spindle nose to column mm 660
Main spindle
Main motor power (S6) kW 11 / 15 / 18.5
Maximum spindle speed rpm 6000 – 12000
Spindle taper BT – SK/DIN698713 40
X-, Y- and Z- axis
Rapid movement m/min 8
Feed rate m/min 4
Tool changer BT 1500+
Automatic tool changer # 24 (6 Choice of vertical / horizontal)
General
Weight kg 5800
Machine dimensions (l/w/h) m 3.1 x 2.3 x 2.8
