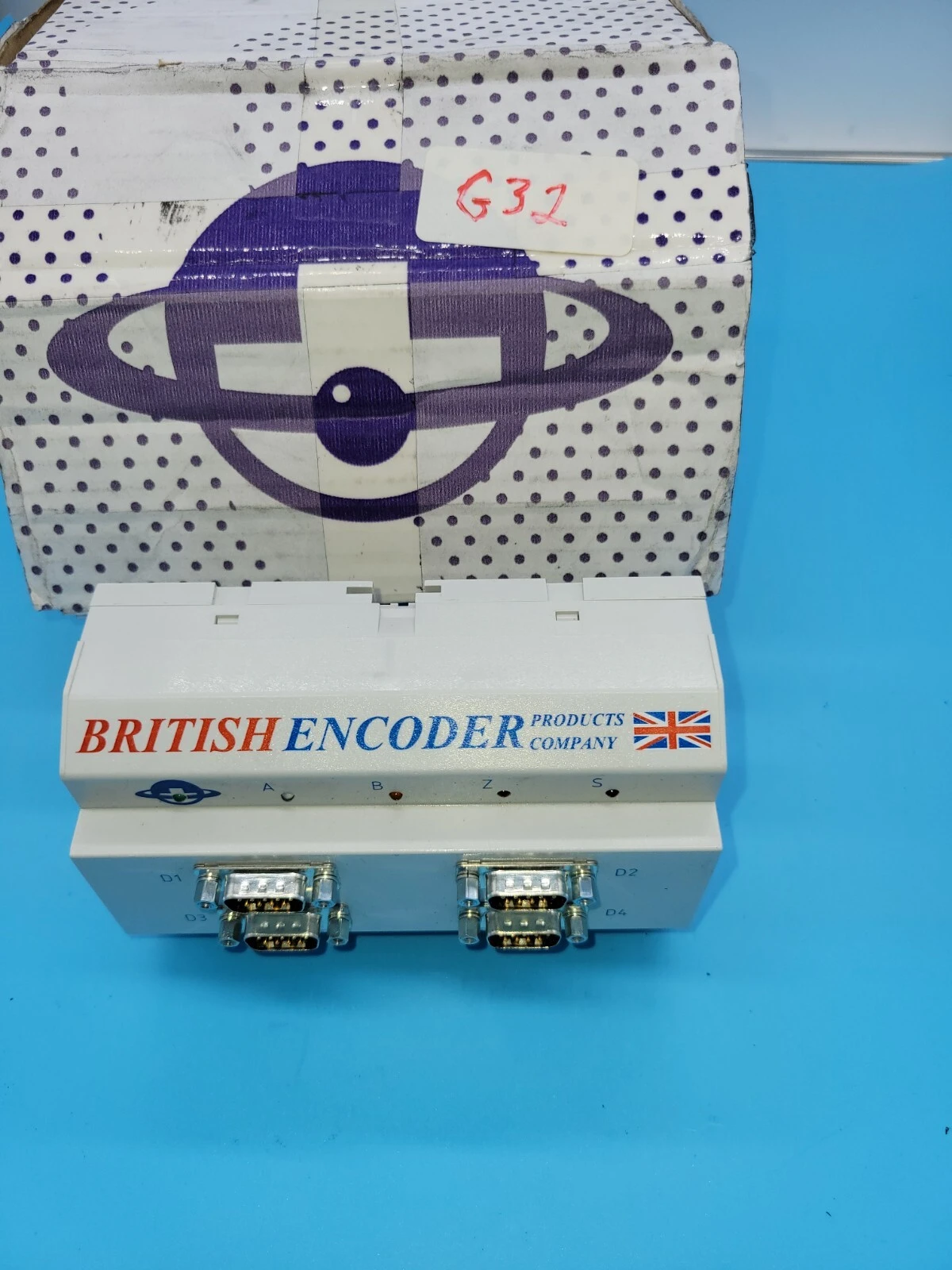

NEW British Encoder Products SPTXD-4

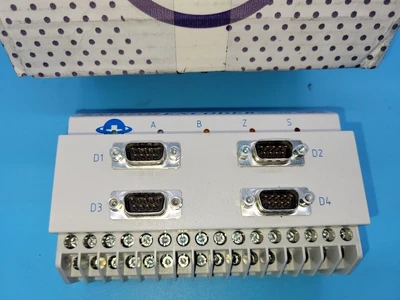

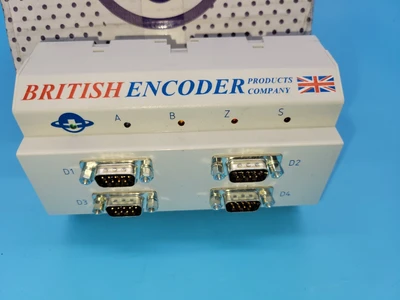

SELLING 1 UNUSED OPEN BOX - British Encoder Products SPTXD-4 SPLITTERSplitter-Transmitter Module Encoder Signal BroadcasterSPEC IS FOR INFORMATION ONLYFeatures • DIN Rail or Flange Mountable • Up to 5 Way Splitter • Level Changes to 5V, 12V or Vcc • Tristatable Outputs • Power On and Signal LEDs Introducing the SPTX splitter-transmitter! DIN-rail or flange mountable, the module can be configured as a repeater, splitter, level changer, signal conditioner or encoder tester and will accept PP, HV or OC inputs at 5-24V via screw terminal connections. Up to four separate outputs can be delivered through 9pin D-type connectors on the front panel, with an additional 5V output capability via screw terminals (for daisy-chaining with subsequent units). Each D-type output can also be tristated by pulling its respective control line to +5V. A bank of LEDs on the case provides indication for power and signals. Specifications Input Voltage .6V to 26V Max Current Consumption .300 mA Typical Repeater Output Voltage .5V, 12V or Vcc Frequency Response Up to 800 Khz14 DAY INSPECTIONLOC: blk tel cab G32TEL 3 T922
