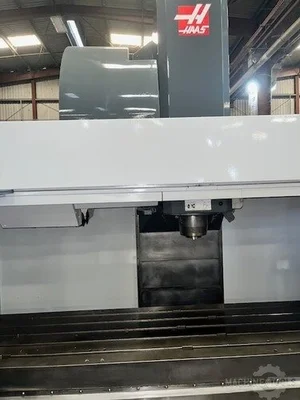

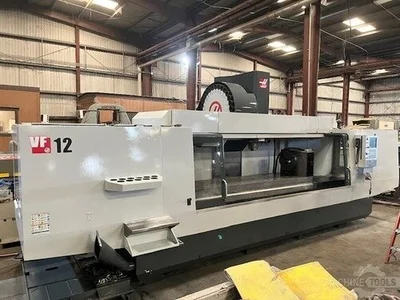

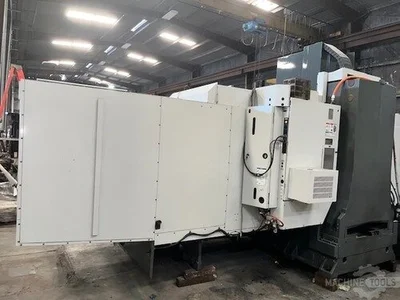

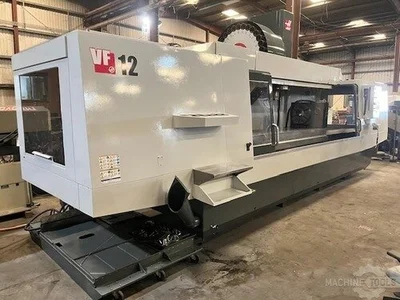

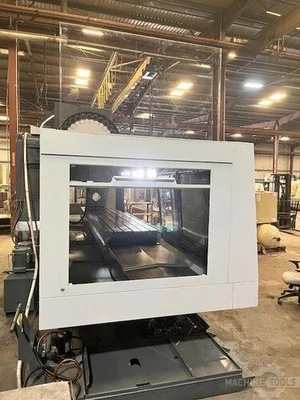

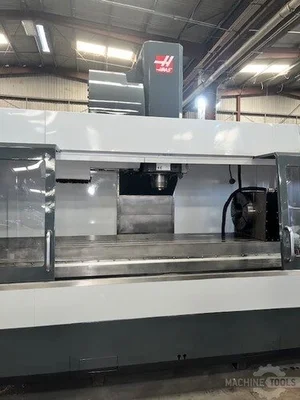

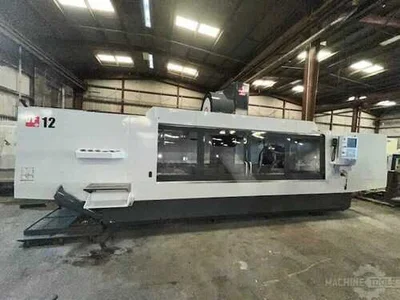

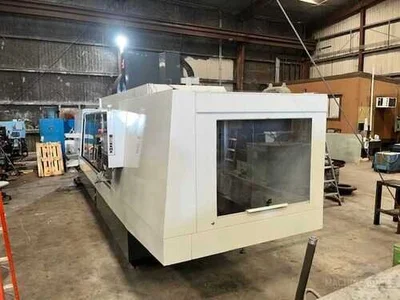

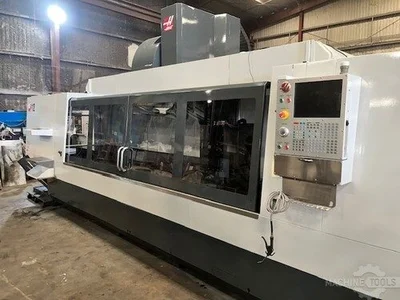

Haas VF-12/50 CNC Vertical Machining Center, VMC w/ HRT-450 4th-Axis Rotary Table (2014)
| X | 150" | 3,810 mm |
| Y | 32" | 812.8 mm |
| Z | 30" | 762 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 31 | 31 |
| Taper | CT or BT 50 | CT or BT 50 |
| Table-W | 28" | 711.2 mm |
| Table-L | 150" | 3,810 mm |
| # Axis | 3 | 3 |
General Info
Stock #: 143250010
Location: Houston, TX
Brand: Haas
Model: VF-12/50
Year: 2014
Approx. Shipping Weight: 40,000 LBS.
Approx. Shipping Dimensions: Main Machine: 360"L x 110"W x 130"H Additional Components: 96"L x 96"W x 36"H
Skidding Fee: Skidding Unavailable
Loading Fee: Loading Included
Specifications

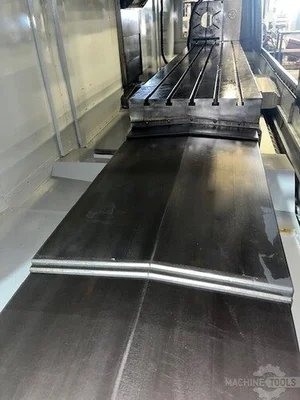

Table Dimensions: 150"L x 28"D
Maximum Table Load: 4,000 LBS
X-Axis Travel: 150"
Y-Axis Travel: 32"
Z-Axis Travel: 30"
Spindle Nose to Table Distance (Min-Max): 4" - 34"
Maximum Spindle HP: 30 HP
Maximum Spindle Speed: 7,500 RPM (2-Speed Gearbox)

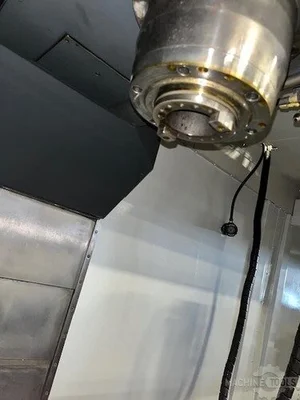

Spindle Taper: CT-50
Rapid Traverse Rates (X) / (Y,Z): 360 IPM / 600 IPM

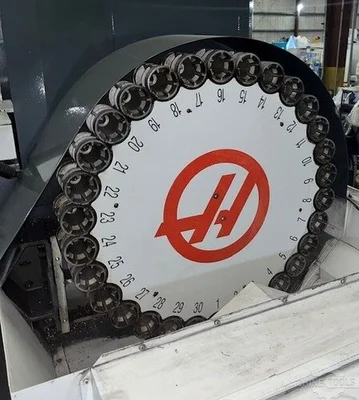

Side Mount ATC Capacity: 30 + 1
Electrical: 230V / 3PH
Equipped With

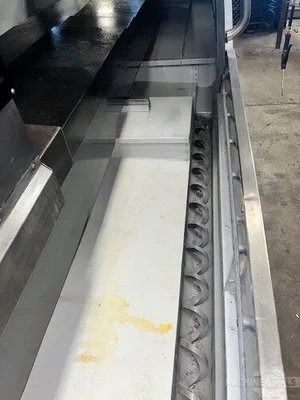

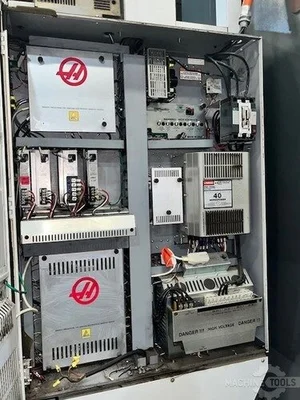

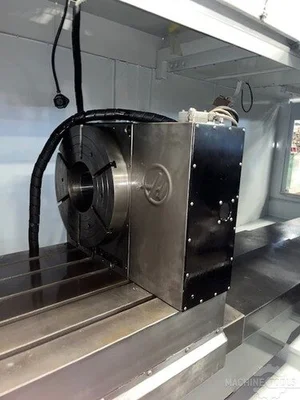

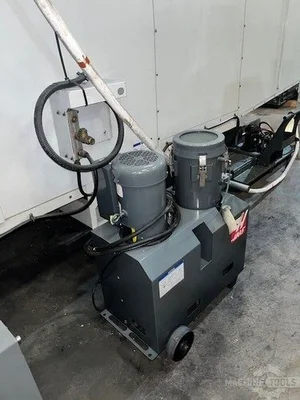

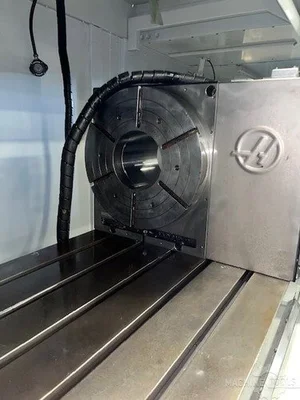

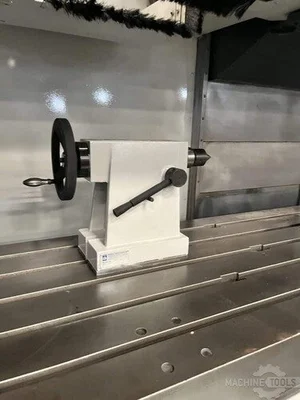

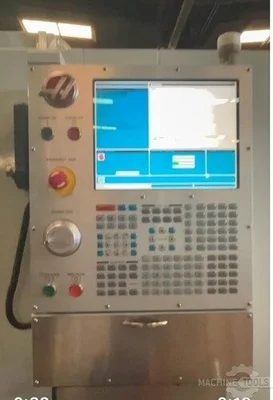

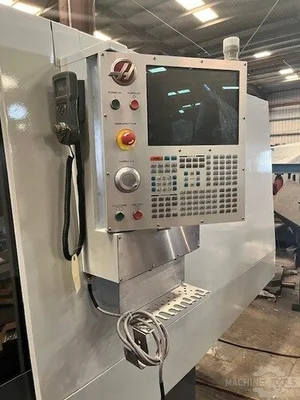

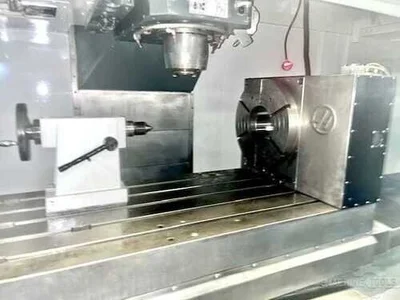

15" Color LCD Haas Control, HRT-450 Rotary Table w/ Tailstock, CT-50 Spindle, X-Axis Scale Feedback, 1,000 PSI TSC (Through Spindle Coolant), 4th Axis Drive & Wiring, 2-Speed Gear Box, Programmable Coolant Nozzle, Haas WIPS Renishaw OMI (No Spindle Probe / Tool Pre-setter Included), Visual Quick Code Programming, User-Definable Macros, Spindle Orientation, Coordinate Rotation & Scaling, Rigid Tapping, 1GB Program Memory, USB Port, Auger Style Chip Removal System, CNC Control Cabinet Cooler, High Intensity Lighting, Remote Jog Handle, 95 Gallon Coolant Tank
