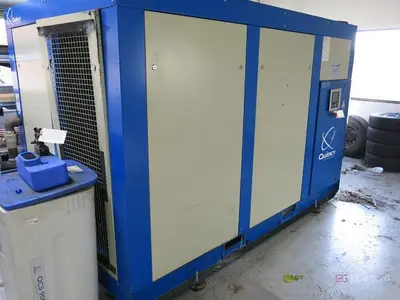

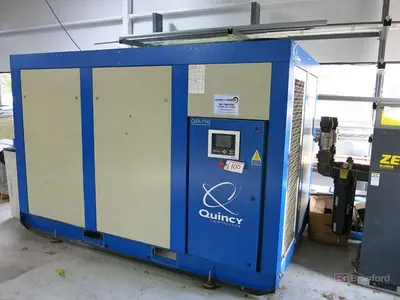

USED 2016 QUINCY QSI-750

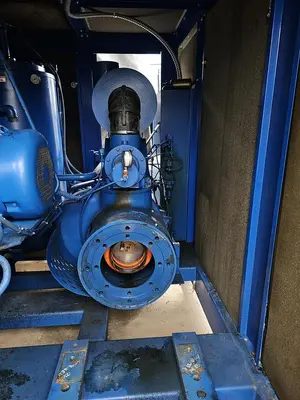

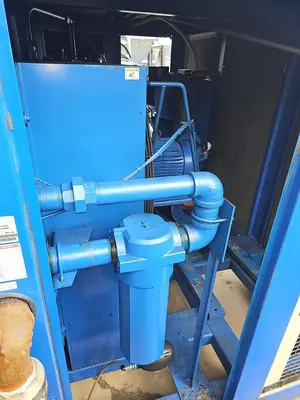

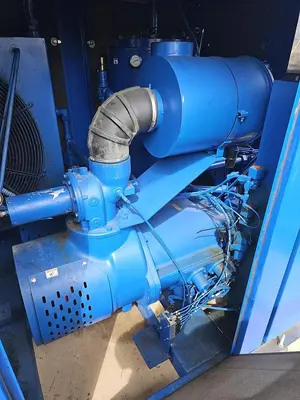

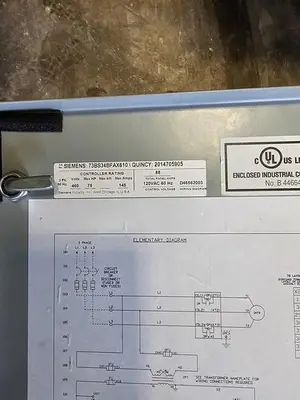

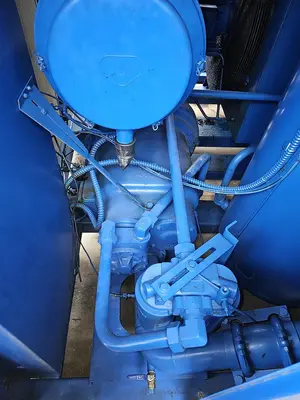

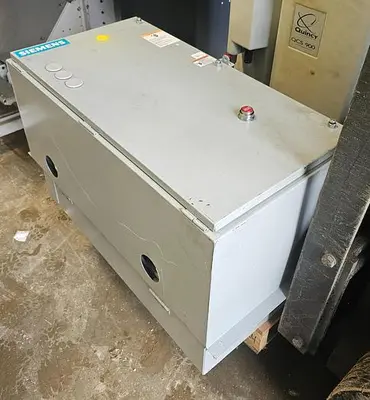

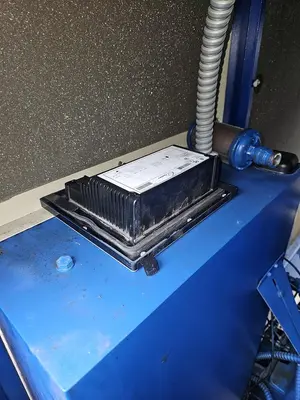

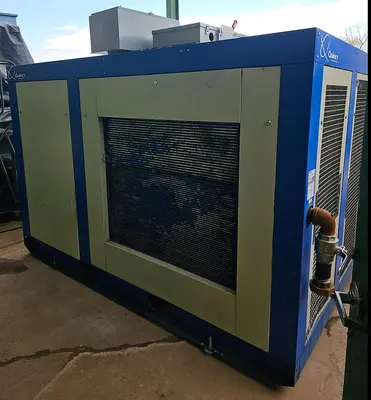

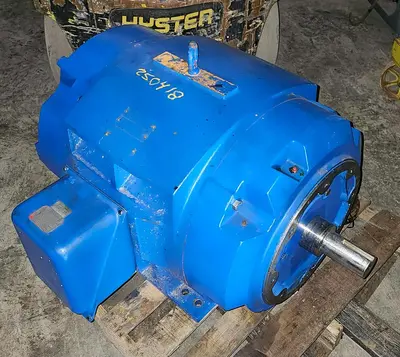

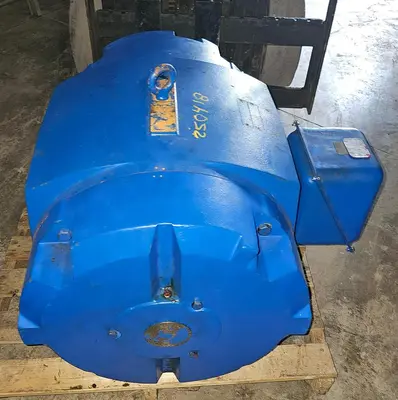

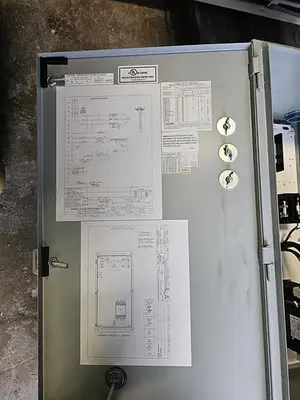

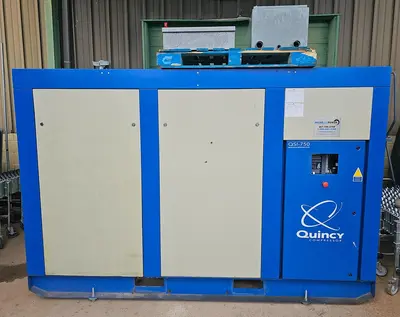

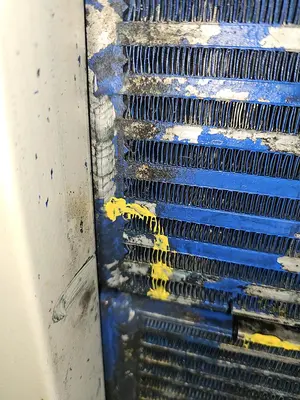

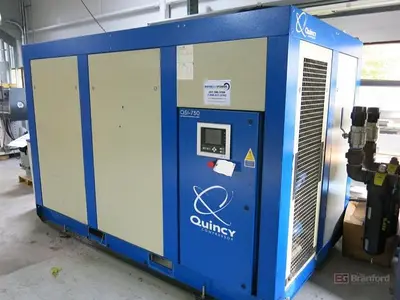

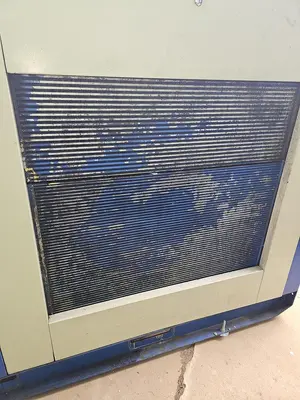

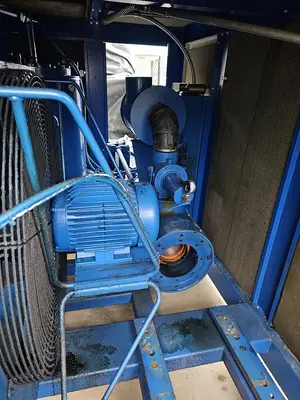

2016 Quincy QSI-750 150 HP Variable Speed CompressorFOR PARTS OR REPAIR | S/N: UTY202291 | CORE UNITAvailable for acquisition is a 2016 Quincy QSI-750 industrial rotary screw air compressor. This is a high-capacity, 150 HP variable speed unit (VSD) that delivers exceptional CFM for large-scale industrial applications.CONDITION SUMMARY: This machine is being sold As-Is for Parts or Repair. It was recently decommissioned due to a moisture event affecting the motor and leaks in the cooling package.Airend: VERIFIED GOOD (prior to motor failure). Features the massive 10-inch (255mm) rotor set.Controller: VERIFIED GOOD. Original Quincy microprocessor is intact and functional.Motor: REQUIRES REBUILD. The 150 HP electric motor has internal moisture/insulation damage and will not start.Coolers: REQUIRES REPAIR. Leaks are present in both the oil cooler and the after-cooler assembly.Technical SpecificationsModel: QSI-750Serial Number: UTY202291Year of Manufacture: 2016Horsepower: 150 HPMax Capacity: 745 CFM @ 110 PSITotal Hours: 45,960 (Recorded at time of decommissioning)Electrical: 460V / 3-Phase / 60HzWeight: 7,900 lbs (Heavy-Duty Skid Mount)Dimensions: 116" L x 68" W x 77" HValue for Rebuilders:A new 150 HP QSI-series compressor retails for over $70,000, and a replacement 255mm airend alone costs nearly $20,000. Because the airend and controller are functional, this unit represents a prime rebuild candidate for a service company or a facility with internal motor-repair capabilities.CONFRIMED ISSUES: Unit has Leak in the Oil Cooler & After Cooler. Control & Air End are Good. 150 Hp Electric Motor has Internal Moisture and will need to be Rebuilt.

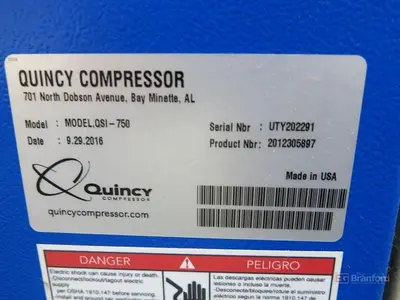

S/N: UTY202291
Horsepower: 150
Full Load: 745 cfm
M3/min @ 7.58 BAR: 21.10
Motor HP/rpm: 150/1800
Weight: 7900 lbs
