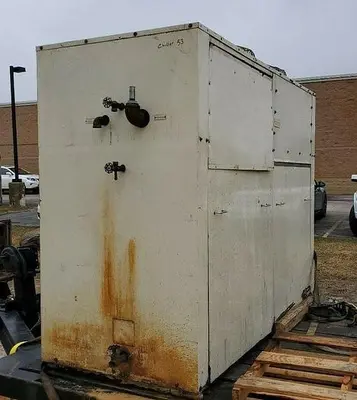

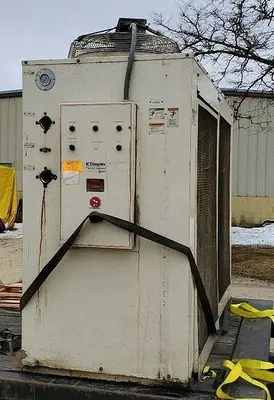

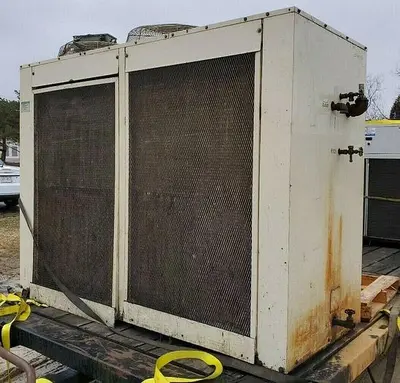

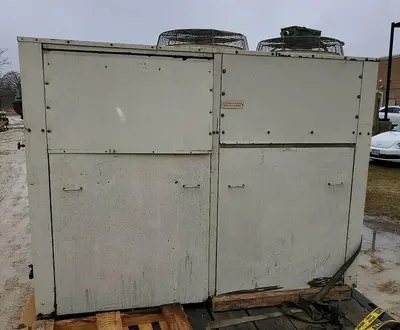

Dimplex 2000AC Refrigerated Air-cooled Chiller by Schreiber Engineering Corp.

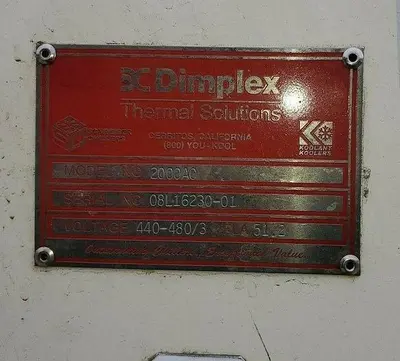

Model #: 2000AC
S/N: 08L16230-01
Voltage: 230/460V, 3 ph, 60 Hz @ 115/50 Amps respectively
Compressor Motor: 2x - 10 hp
2x - 2 Hp Condensing Coil Cooling Fans
R 22 Refrigerant Charge: 27 lbs.
The refrigeration system is a medium temperature system with a range from 35*F to 70*F
Recirculation Pump: 5 Hp
GPM Flow Rate: 120
PSI: 41.3
Reservoir Capacity: 145 Gallons
BTU Per Hour: 240,000
Unit Weight: 3150 lbs
Overall Dimensions: 92" L x 38" Dp x 70" Tall
Seller notes: “Used - in good working condition when removed from service”
Operating pressure: 41.3
Temperature: 35* - 70*F
Item length: 92
Cooling capacity: 20 ton
Equipment type: Air Cooled Chiller
Power phase: 3 Phase
Components: Compressor, Condensing Unit, Heat Exchanger, Refrigerant tank
Tank capacity: 145
Type: Air Cooled Chiller
Btu cooling rating: 25000 BTU or Greater
Item height: 70
Supply voltage: 460 V
Features: Dual Fan Condenser
Item width: 38
Item weight: 3150
