60" Dallas Heavy Duty Servo Feed Straightener Combination
Coil Width: 60 inches
Coil Thickness: .250 inches
Standard Specifications60" Dallas Servo Feed Straightener CombinationHeavy Duty Model #DRFS-860 & P.T.S.- 582Includes New Dallas Servo Feed Controls PackageProfile Select Feed Software & Uni-Drive M700 Digital Servo Controller60" Maximum Coil Width.250" Thick Coil Capacity @ 60" Wide.312" Maximum Coil Thickness @ 24" Wide
Eight inch diameter feed rollsNew Gearbox Motor, Pulley and CablesNew Pendant Controls (Jog Forward/Reverse)New 7" Full Color Screen
Matte chrome finish on upper and lower feed rolls
Precision cluster gear driven upper feed
Heavy duty adjustable stock width edge guidesPull Thru Straightener Model PTS-582Five servo feed straightening rolls Screw jack upper servo feed straightening roll adjustments Servo feed pinch roll for stock threading (Motorized)Air operated upper pinch roll adjustment
Cascade loop support rollers
Cabinet base mounted with heavy duty pass line adjustment
AC servo drive and control system
Job memory micro adjust batch count etc

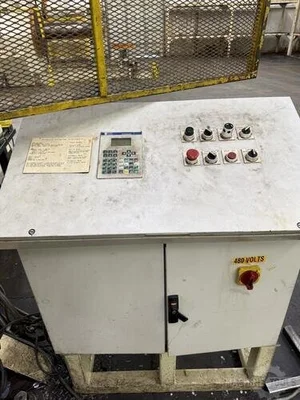

Free standing sloped front control console
Auto ModeCan be seen under power in the S & G Press and Machinery Warehouse.

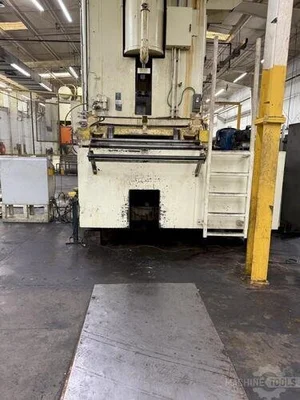

Dallas 60" Servo Feed-Straightener Combination
This Dallas Model DRFS-860 & P.T.S.-582 is a robust, high-performance solution for heavy-gauge coil processing. Engineered for versatility, it handles a massive 60" maximum width with a capacity of .250" thickness at full width, increasing to .312" for narrower 24" stock.

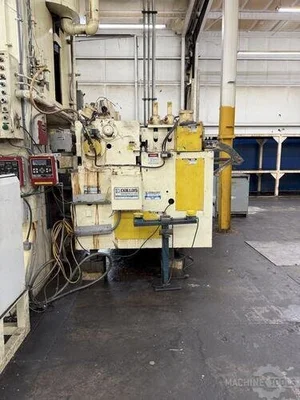

The system features 8-inch diameter matte chrome feed rolls driven by a precision cluster gear assembly, ensuring consistent material movement without slippage. The integrated P.T.S.-582 Pull-Thru Straightener utilizes five rolls with screw-jack adjustments to eliminate coil set, while the motorized pinch rolls and air-operated adjustments simplify the threading process. Controlled via a free-standing AC servo console, the unit supports job memory and batch counting for high-efficiency "Auto Mode" production.
