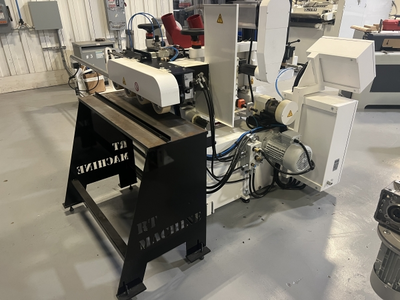

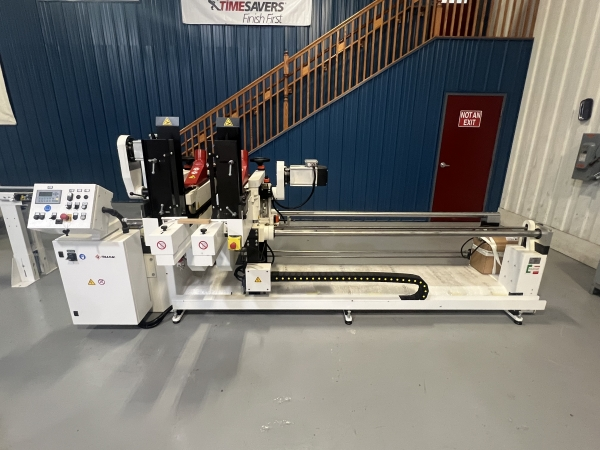

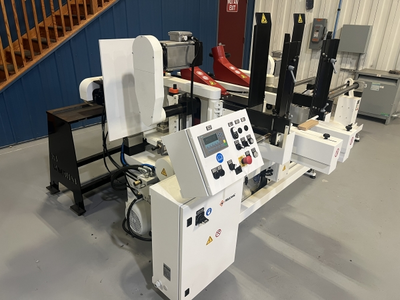

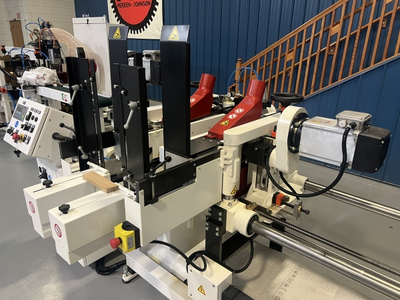

NEW FRIULMAC DUALFEED

Friulmac Model Dualfeed 2.5 Automatic Double Crosscut saw & Moulder Feeder
Working Units on each side

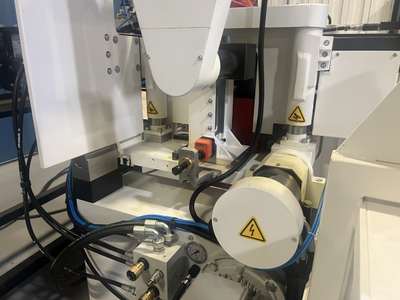

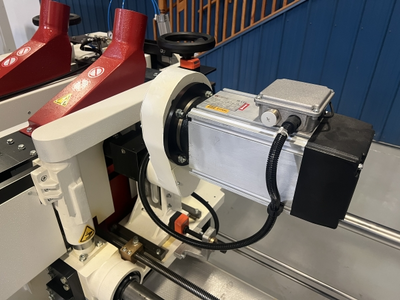

Trimming Unit:
Motor Power: 4kW (5.36HP)
Spindle RPM: 3750RPM
Spindle Diameter: 30mm
Max Blade Diameter: 250mm
Adjustments:
In/Out: Manual
Up/Down: Manual
Dust Extraction:
1+1 Dust Ports with 100mm outside Diameter
30-34 M/Sec Extraction Speed
1000 CFM Required
Hydraulic Unit
Unit Capacity: 75L
Motor Power: 2.2kW (~3HP)
Double Gear Pump Flow Rate: 23 + 16 L/Min
Production Capacity
Maximum Production Capacity: 40pcs/min
Vertical Work Piece Magazine
Working Dimensions: Min/Max
Cutting Length: 200/2500mm (7.874"/98.452")
Work Piece Width: 30/230mm (1.18"/9.05")
Thickness: 15/45mm (.59"/1.77")

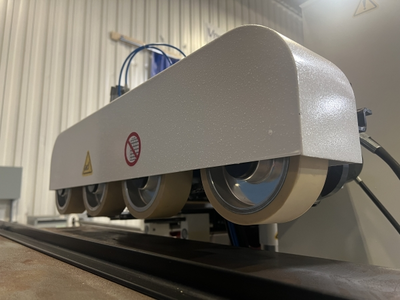

Top Belt Pressure System
