Used

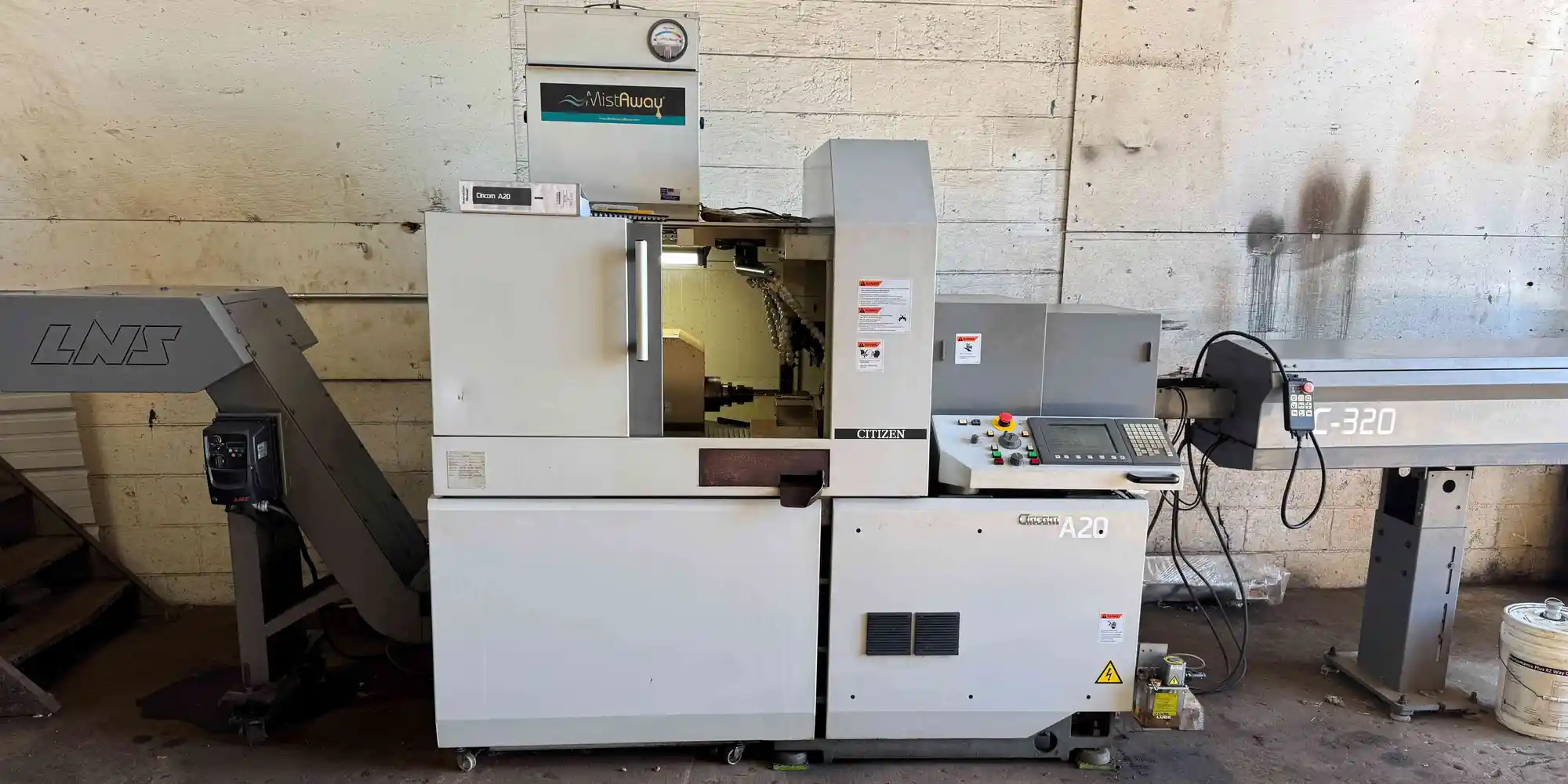

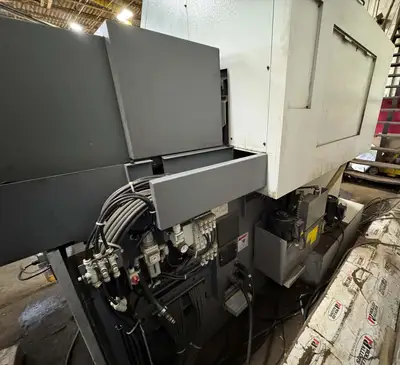

USED 2015 CITIZEN A20VII

Ohio, United States
247Listings|103Followers
Overview
Swiss Type Automatic Screw Machines

(1) CITIZEN A20VII (3F7) Swiss Type CNC Lathe (used) New 2015 - CHUCKER CONVERTIBLE & Equipped with Citizen C320 (Edge Minuteman 320) Magazine Bar Loader, LNS/Turbo Chip conveyor, Mist collector, misc tooling, inserts, collets, guide bushings, stick tools, tool kit, manuals, keys. Ran oil. The Cincom A320 Type VII is a High Precision Swiss type Automatic Lathe manufactured by CITIZEN Machinery Miyano Co. Ltd. With its Fanuc Series 32i Model B System Control and Seven Cutting Axes (X, X2, Y, Z, Z2, C1, C2) the A320 offers Quick Set-ups and High Speed-High Precision Performance. And with the additional X2 axis, front/back simultaneous machining is possible. The A20 has many Features not found in other Swiss Automatics.

Specs
Spindle Hole Dia
20 mm
0.7874"
Power
5 hp
3.7 kW
RPM
8,000 RPM
8,000 RPM
# Axis
5
5
Control
CNC (Fanuc 32iB)
CNC (Fanuc 32iB)
