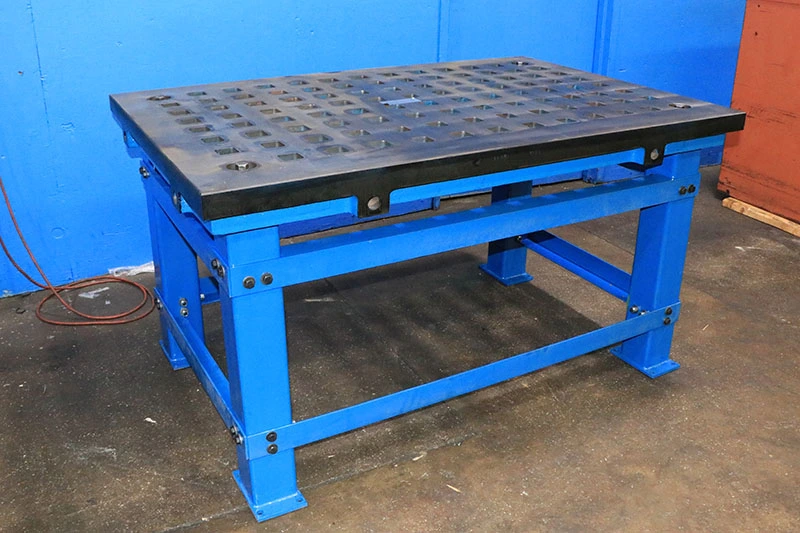

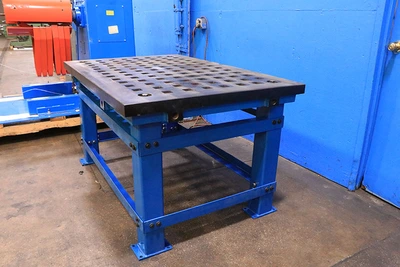

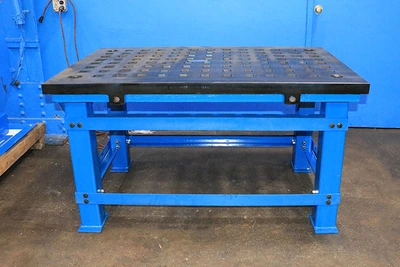

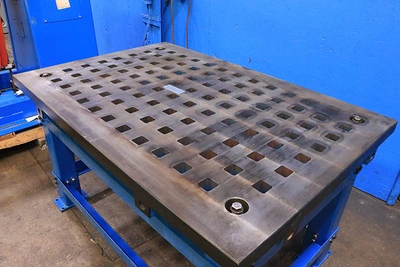

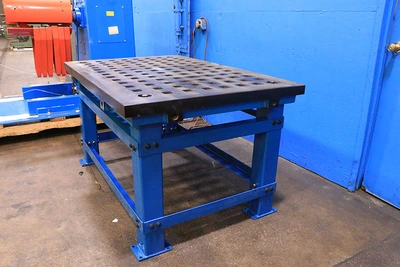

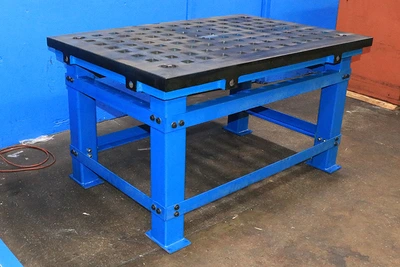

USED FPM 3' X 5'

3' Length 5' Width FPM 3' X 5' WELDING TABLE

NEW 3' x 5' Cast Iron Welding Table

Specifications:

Platen Material - Cast Iron

Length - 59.06" (1,500 mm)

Width - 39.37" (1,000 mm)

Platen Height - 3.94" (100 mm)

Height w/ Stand - 32.05" (814 mm)

Platen Ledge Thickness - 2.36" (60 mm)

Platen Holes - 1.75" Square (45 mm)

Hole Center Distance - 4.19" (106 mm)

Flatness of Platen Face - 0.005" / 12"

Platen Hardness - 173 - 219 BHN

Platen Weight - 1,367 lbs.

Stand:

Fabricated Steel / Bolt (Comes with all hardware for assembly)

331 lbs

FOR MORE INFORMATION: Call Rick at 973-497-7560
