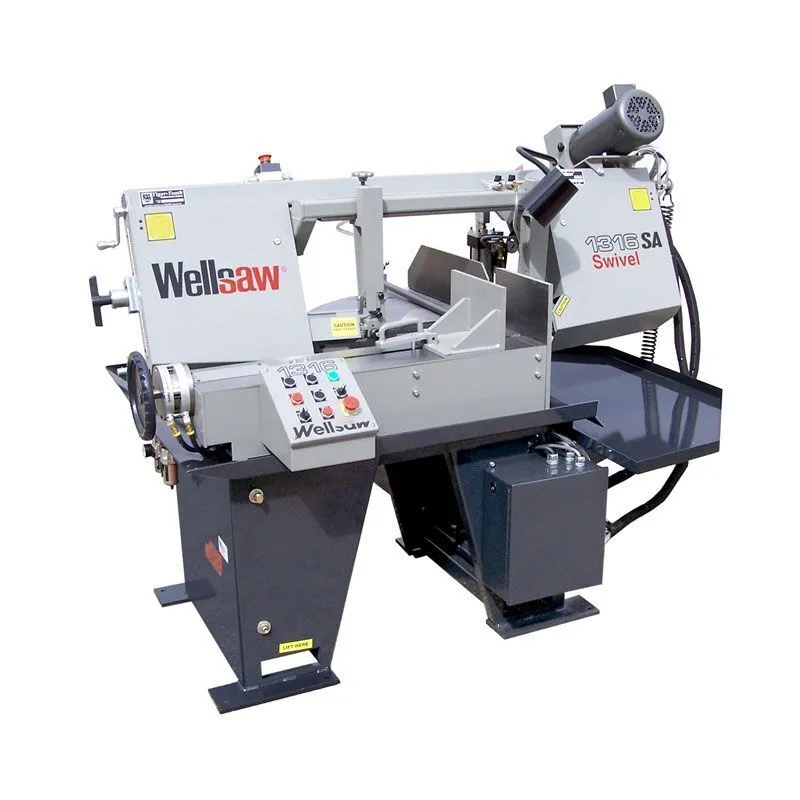

Wellsaw Model 1316S-SA Swivel Head Miter Bandsaw w/ Semi-Automatic Operation has a 13” x 16” capacity at 90 degrees. 13” x 11-1/2” capacity at 45 degrees. 8” x 8-1/2” capacity at 60 degrees. 1” Blade is standard. For sale at Sierra Victor Machinery.
| Round at 90° | 13" | 330.2 mm |
| Rectangle at 90° | 13" H x 16" W | 13" H x 16" W |
| Round at 45° | 11.5" | 292.1 mm |
| Rectangle at 45° | 13" H x 11-1/2" W | 13" H x 11-1/2" W |
| Round at 60° | 8" | 203.2 mm |
| Rectangle at 60° | 8" H x 8-1/2" W | 8" H x 8-1/2" W |
| Solid Round at 0° | 13" | 330.2 mm |
| Blade Size | 1" x .035" x 12'-6" (150") | 1" x .035" x 12'-6" (150") |
| Blade Guide | Carbide Guides, Zero Clearance, with Rollers | Carbide Guides, Zero Clearance, with Rollers |
| Blade Tension | Manual Rite-Tension® | Manual Rite-Tension® |
| Sawing Force | Gravity with Adjustable Counterbalance Spring | Gravity with Adjustable Counterbalance Spring |
| Blade Speed | Infinitely Variable 70-375 SFPM | Infinitely Variable 70-375 SFPM |
| Blade Motor | 2 HP | 2 HP |
| Power | 230v/60/1-phase | 230v/60/1-phase |
| Coolant System | Submersible Pump: 115V/.6 Amp/3 GPM | Submersible Pump: 115V/.6 Amp/3 GPM |
| Coolant Tank Capacity | 8 gal | 30.3 L |
| Bandwheel Size | 15" | 381 mm |
| Bed/Table Height | 35" | 889 mm |
| Vise | Pneumatic with Quick position and Manual Screw adjustment | Pneumatic with Quick position and Manual Screw adjustment |
| Shipping Weight | 1,990 lb | 902.6 kg |
| Dimensions | 90" W x 76" L (including infeed conveyor) | 90" W x 76" L (including infeed conveyor) |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Machine
WARRANTY: 90 DAY – Parts
*Note: 2 HP ODP motor is used when single phase is specified.
*Saws are not multi-voltage
*Choose only one part number when ordering.
*Please select one voltage and phase at time of order. Machine is not multi-voltage.
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
