USED CINCINNATI 2OM

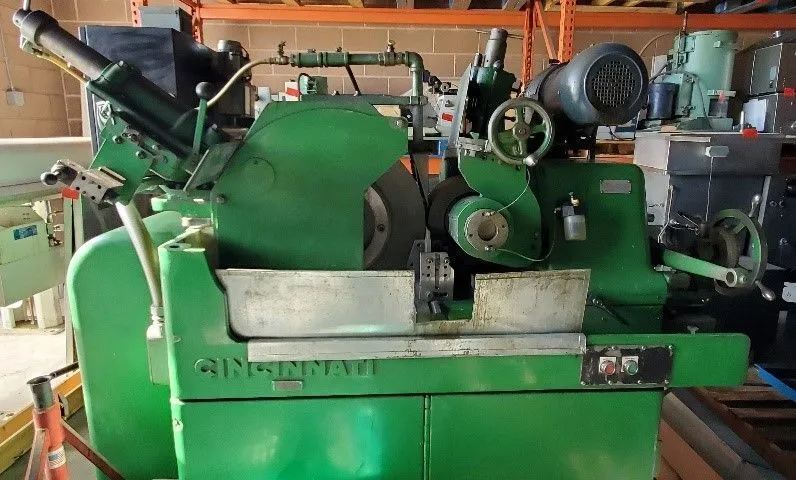

Cincinnati 2OM Through Feed Centerless Grinder

Capacity – Contingent upon on work rest:
– Standard work rest…………1/16″ to 3 1/2″ dia.
– Low thru feed work rest…………2″ to 4 3/4″ dia.
– Bar work…………1/8″ to 2″ dia. 18″ long
Grinding Wheel:
– Width…………4, 6, or 8″
– Hole…………12″
– Maximum diameter…………20″
– Minimum diameter…………14″
Regulating Wheel:
– Width…………4, 6, or 8″
– Hole…………5″
– Maximum diameter…………12″
– Minimum diameter…………9″
Motor Drives:
– Grinding wheel…………15 HP
– Regulating wheel…………1 1/2 HP
– Hydraulic pump…………1 1/2 HP
– Cutting fluid…………1/4 HP
Dimensions – Catalog…………53″ x 86″
Weight – Catalog …………6,400 lbs.
