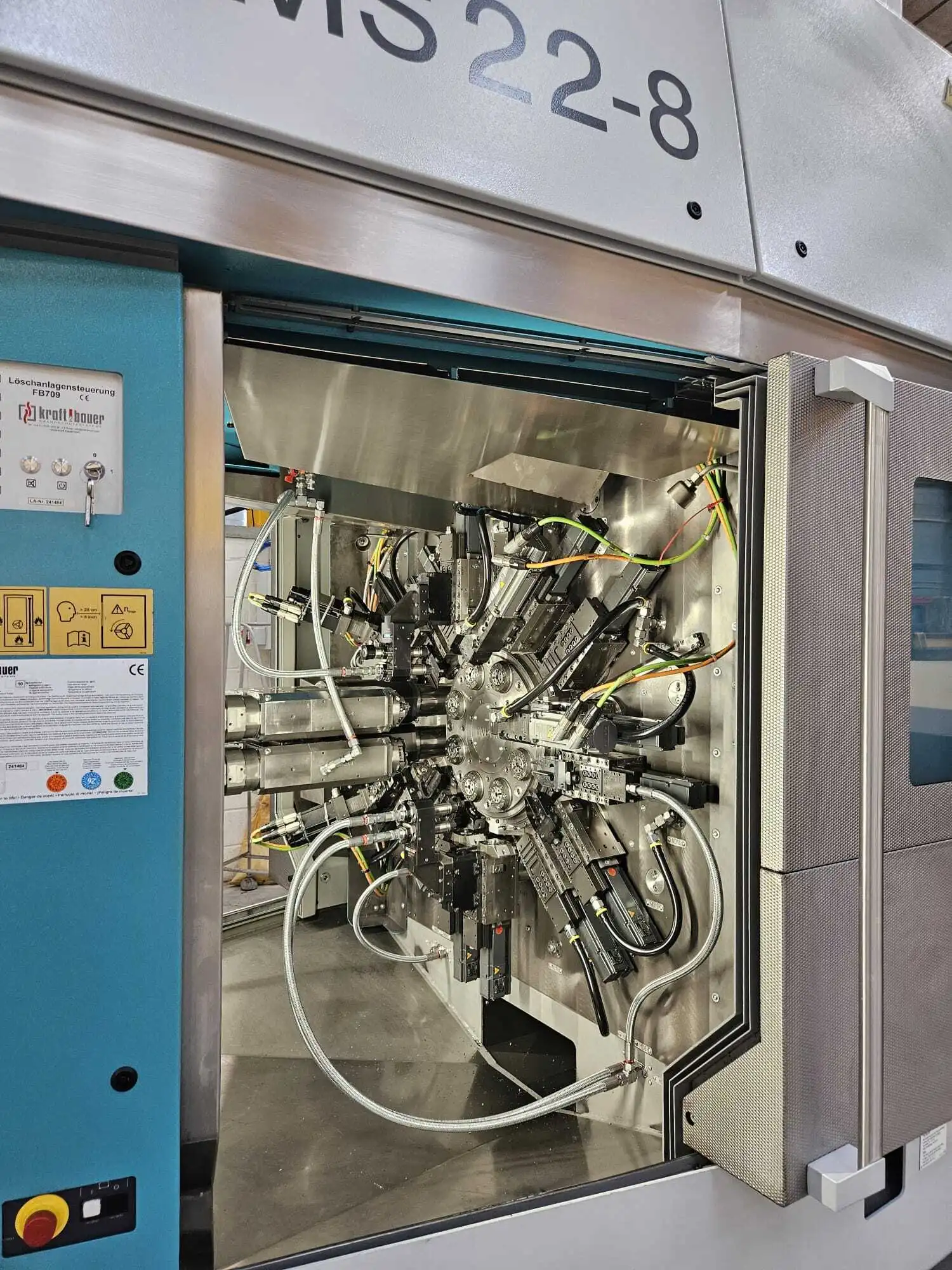

INDEX MS22-8
Mfd. 2024
2 NCU
(4) Y-Axis
SL Control
Cutting hours: 1,000
Turnkey Available
Located in Europe
4-Meter IEMCA SIR MS22-8/43/P
Rack loader 50 Hz D9-13-19-25
Bar length 4300 mm
with drilling unit and minimum quantity lubrication unit
additional end-of-bar sensor
Bar stock 500mm (D12-D24)
Bar stock 340 mm (D5-D11).
Additional storage chain for 22 bars
with Profinet interface.
1 11007253
(21711)
1 set (8 pieces) bar stock pushers,
external clamping for bar stock diameters D7-D10 mm,
internal clamping for bar stock diameters D13-D18 mm, consisting of:
8 bar stock pushers D12
8 rotating sleeves D12
1 10287026
(21712)
1 set (8 pieces) bar stock pushers,
external clamping for bar stock diameters D11-D16 mm,
internal clamping for bar stock diameters D19-D24 mm, consisting of:
8 bar stock pushers D18
8 rotating sleeves D18
1 10536056
(21713)
1 set (8 pieces) bar stock pushers for bar diameters D17 mm-D22 mm,
consisting of:
8 bar stock pushers D23
8 rotating sleeves D23
1 10414481
(21702)
1 set (8 pcs.) of internal clamping sleeves D12mm
for bar diameters D13 mm - D18 mm
Drill diameter D8 mm.
1 10472413
(21704)
1 set (8 pcs.) of external stops D12 mm
for bar diameters D13 mm - D18 mm
pre-machined.
1 10264327
(21703)
1 set (8 pcs.) of internal clamping sleeves D18mm
for bar diameters D19 mm - D24 mm
Drill diameter D15mm.
1 10058206
(21705)
1 set (8 pcs.) of external stops D18 mm
for bar diameter D19 mm - D24 mm
pre-machined.
1 12123486
Drill for drilling unit consisting of:
1 indexable insert drill D 15 mm
10 indexable inserts for steel
2 solid carbide drills D 8 mm
