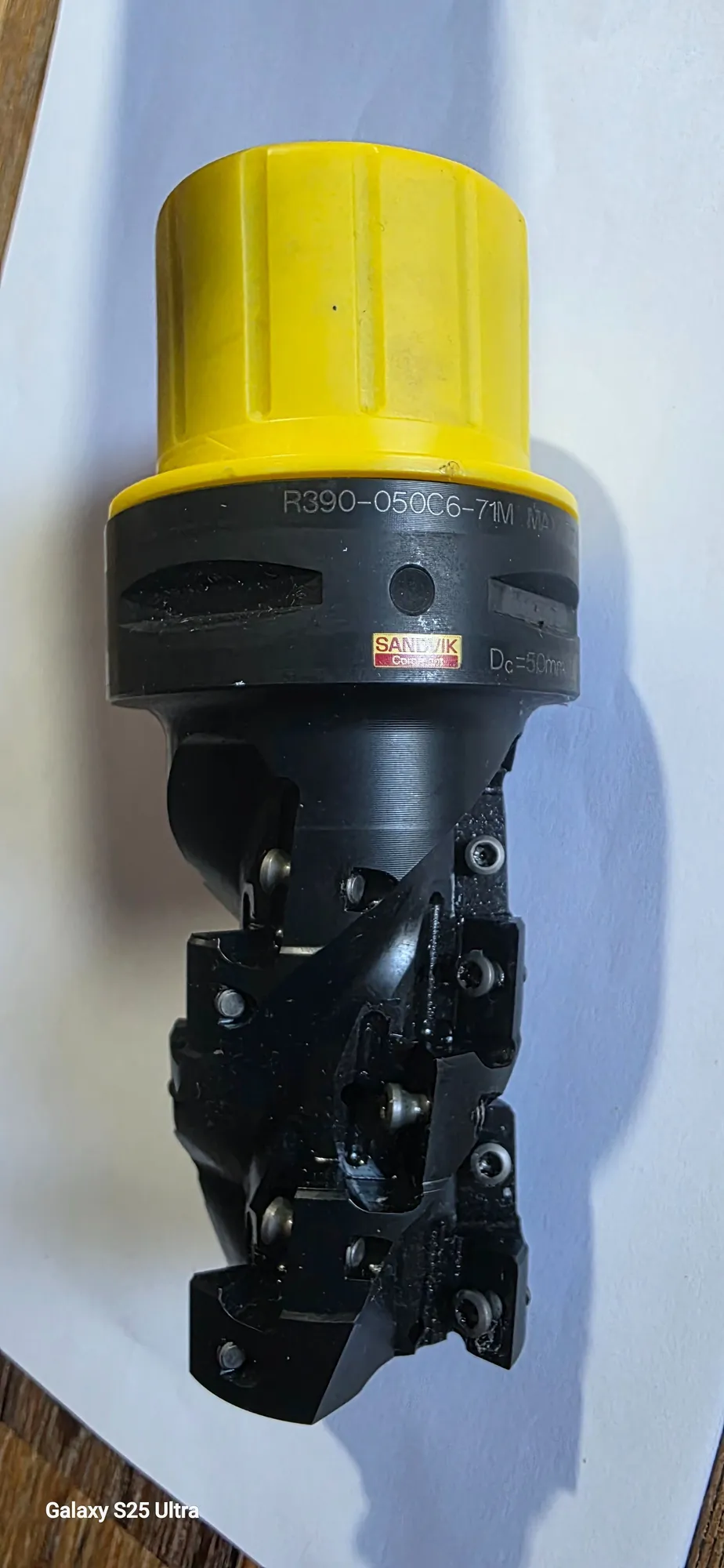

NEW SANDVIK R390-050C6-71M

Product data
MetricInch
Tool cutting edge angle (KAPR)
90 °Search Icon
Cutting diameter (DC)
50 mm
Cutting item count(CICT_1)
3
Clamping type code(MTP)
clamp with screw through hole
Part 2 of cutting item interface identifiers(CUTINT_MASTER_1)
CoroMill 390 -size 18 (R390-18)
Cutting item count(CICT_3)
12
Part 2 of cutting item interface identifiers(CUTINT_MASTER_3)
CoroMill 390 -size 18 (R390-18)
Depth of cut maximum (APMX)
71 mm
Working engagement ratio maximum(AERMX)
0.5
Maximum ramping angle (RMPX)
0 °
Maximum plunge depth(AZ)
0 mm
Usable length (LU)
81 mm
Peripheral effective cutting edge count(ZEFP)
3
Connection - machine side(ADINTMS)
Coromant Capto (bolt and segment clamping) -size C6
Hand (HAND)
Right
Coolant entry style(CNSC)
axial concentric and radial entry
Coolant pressure(CP)
10 bar
Connection diameter machine side(DCONMS)
63 mm
Functional diameter(DFC)
44 mm
Standard number(STDNO)
ISO26623-1
Functional length(LF)
108.7 mm
Radial rake angle(GAMF)
-7.5 °
Axial rake angle(GAMP)
13.5 °
Torque(TQ)
3 Nm
Body material(BMC)
Steel
Rotational speed maximum(RPMX)
7,900 1/min
Weight of item(WT)
1.539 kg
Overall length(OAL)
146.7 mm
Insert seat - metric(SSC_M)
18
Insert seat size code imperial view(SSC_N)
18
Release date(ValFrom20)
1/28/02
Release pack id(RELEASEPACK)
02.1
