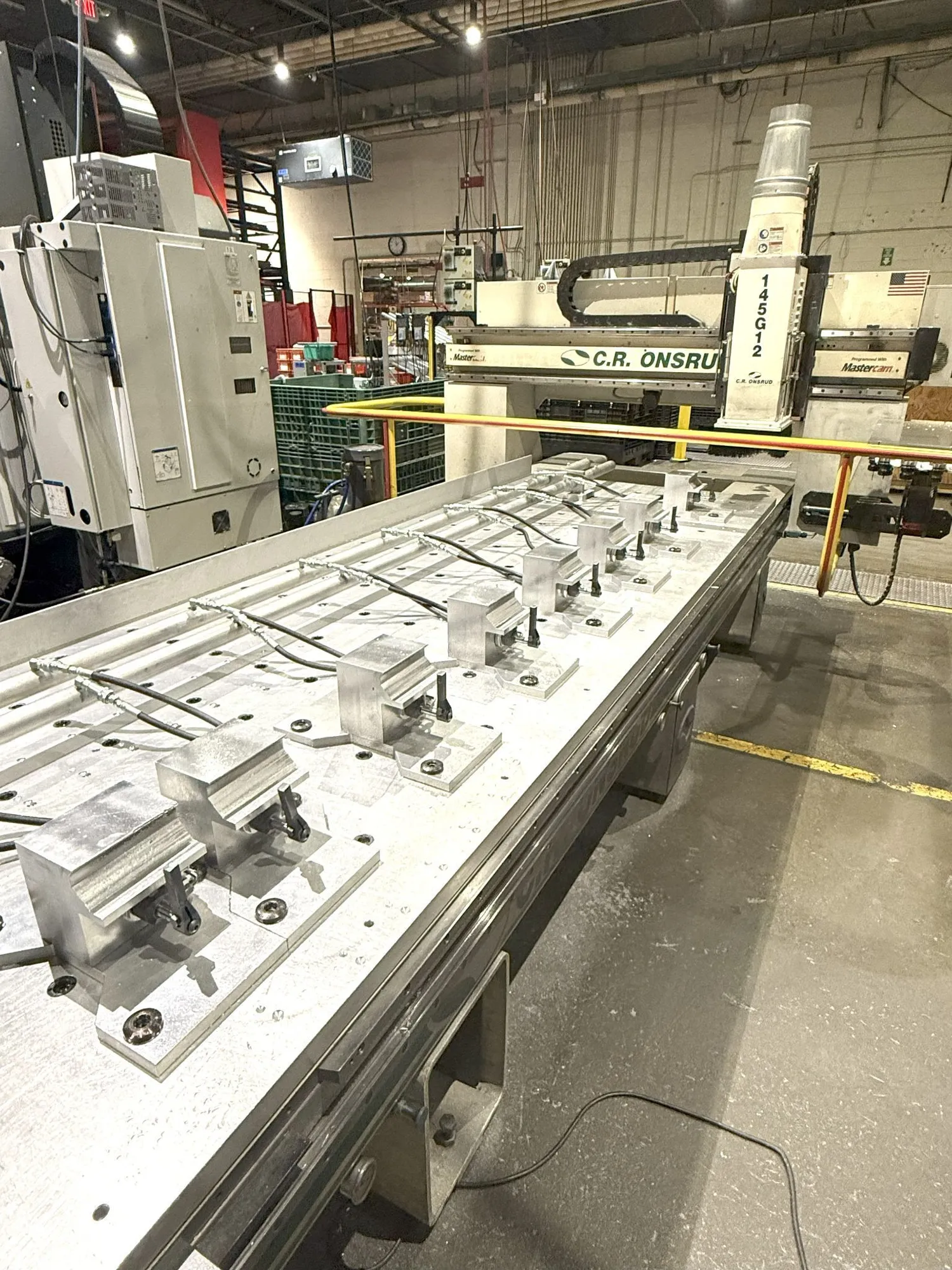

2,200 Cutting Hours, 144" x 60", Fanuc Control, 24,000 RPM, HSK-63F, Renishaw Probe System, Vacuum Table. This remanufactured 2018 CR Onsrud 145G12 "Control Retrofit Panel Pro Series" CNC Router is under power and ready for immediate inspection and purchase.
| TABLE LENGTH | 144" | 3,657.6 mm |
| TABLE WIDTH | 60" | 1,524 mm |
| X-AXIS TRAVEL | 145" | 3,683 mm |
| Y-AXIS TRAVEL | 61" | 1,549.4 mm |
| Z-AXIS TRAVEL | 11" | 279.4 mm |
| SPINDLE SPEED | 24,000 RPM | 24,000 RPM |
| SPINDLE MOTOR | 12 hp | 8.9 kW |
| SPINDLE TAPER | HSK 63F | HSK 63F |
| TOOL CAPACITY (ATC) | 12 | 12 |
| RAPID TRAVERSE - X AXIS | 2,000 in/min. | 50.8 m/min. |
| RAPID TRAVERSE - Y AXIS | 2,000 in/min. | 50.8 m/min. |
FANUC 0I HANDHELD MACHINE CONTROLLER SYSTEM
FULL 3-D CAPABILITY
FANUC i-PENDANT HMI W/TOUCH SCREEN
RMI-Q RF RECEIVER
VACUUM TABLE
12 HP SPINDLE
12 TOOL - DYNAMIC AUTOMATIC ROTARY TOOL CHANGER
QUICK CHANGE CARTRIDGE STYLE SPINDLE W/AIRBLAST
AUTOMATIC OIL MIST LUBRICATOR
11-INCHES OF Z STROKE
15KVA ISOLATION TRANSFORMER
STANDARD CENTRALIZED MANUAL GREASED LUBRICATION
AIR CONDITIONED ELECTRONICS CABINETS
PNEUMATIC CONTROLLED VACUUM TABLE SWITCH
INTEGRATED DUST TRANSITION SYSTEM
ALUMINUM T-SLOT TABLE
ETHERNET
CONTROL RETROFIT FOR C.R ONSRUD MODEL 144G12 "CONTROL RETROFIT PANEL PRO SERIES" CNC ROUTER:
- REPLACEMENT OF CURRENT CONTROL AND SPINDLE COMPONENTS ON MACHINE WITH MODERN UPGRADES WITH:
- 2,000” PER MINUTE MACHINING SPEED & 2,000” PER MINUTE RAPID TRAVERSE
- FULL 3-D CAPABILITY
- NEW COMPLETE CONTROL SYSTEM & ELECTRONICS WITH ETHERNET
- NEW HSD 12HP HSK-63F FULLY PROGRAMMABLE VARIABLE SPEED SPINDLE CAPABLE OF ROUTING AND DRILLING
- PROGRAMMABLE FEED RATES WITH OVERRIDE CAPABILITY
** ORIGINAL OWNER
** AS OF OCTOBER, 2025 - CUTTING TIME HOURS: 2,151
** MACHINE CUTTING PRIMARILY ALUMINUM
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
