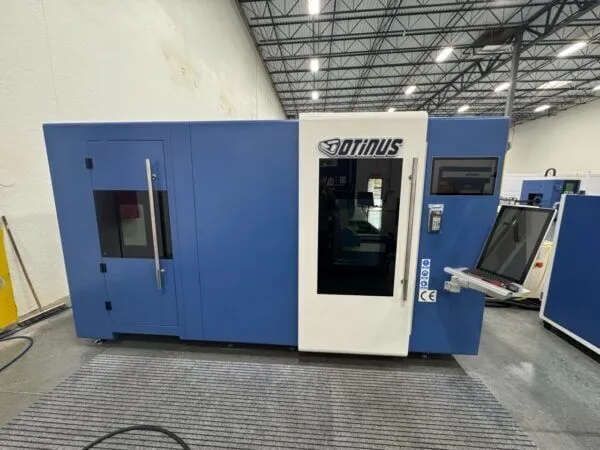

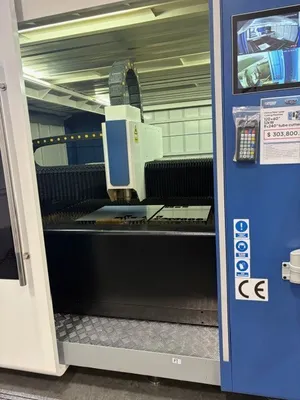

NEW 2024 OTINUS FIBER LASER CUTTING MACHINE 120 X 60″ 12KW WITH ROTARY TABLE 9 X 20″

OTINUS 12000 WATT; FIBER LASER 10' X 5'; w/ 9" x 240 Tube Cutter, In stock , Demo Ready 4 U
Price includes
2-day training including machine installation
1st day up to 8 hours - machine installation and learning how to use the controller.
2nd day up to 8 hours - independent work on the machine under the supervision of our technician - possibility of
programming specific parts that are made by the Client.
Telephone consultation with a specialist from 7.30 to 21.00 (Mon-Sat) – 8 hour time package to be used within 12 months

Terms of cooperation
24 month warranty.
The machine is brand new.
Warranty and after-sales warranty service
The Client is responsible for the machine during unloading and transport on-site.

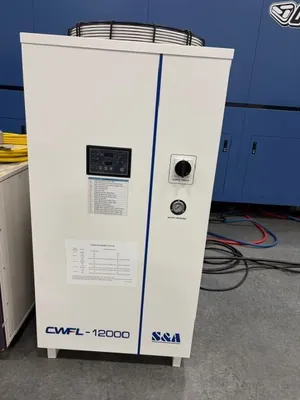

A 12,000 Watt (12kW) 5'x10' Otinus Fiber Laser Cutting Machine features a 61" x 120" working area, can reach speeds of 240 m/min, and boasts a high positioning accuracy of ±0.05 mm. Key components often include an IPG or other high-quality laser source, a precise Hans Focus laser head, a Beckhoff CNC system, and advanced motion systems like Alpha servo motors and Rexroth linear guides, all built on a durable structure with included water chillers.
THE DIFFERENCE IS OUR OUR ASSETS

US BRANCH
Our United States facility is equipped with state-of-the-art technology for sheet metalworking and manufacturing. This branch specializes in providing advanced solutions tailored to the needs of the North American market. With an experienced team and a commitment to innovation, we deliver high-quality machines that meet the highest industry standards.

POLISH HEADQUARTERS
Located in Poland, our European branch combines cutting-edge engineering with decades of expertise in the metalworking industry. This facility focuses on serving the European market, offering customized solutions and efficient production processes. We pride ourselves on delivering excellent service and maintaining strong relationships with our customers across Europe.

Why choose our turn-key solutions?
By choosing our turn-key solutions, you can rest assured that your company is in good hands, and the implementation of new technologies is smooth and stress-free.
Save time and money: We eliminate the need for external providers, allowing for immediate production start-up.
Hassle-free implementation: With our complete installation and training, you can be confident that every aspect is under control.
Full technical support: We are available at every stage to provide technical and service support.

Power Supply: 380V/60HZ
Max sheet size: 10′ x 5′
Positioning accuracy of X/Y axes: ±0.05 mm
Positioning repeatability of X/Y axes: ±0.03 mm
Max idle speed: 120000 mm/min
Max travel acceleration: 1.5 G
Nominal power output: 12.0 kW
Power consumption: 73.0 kW

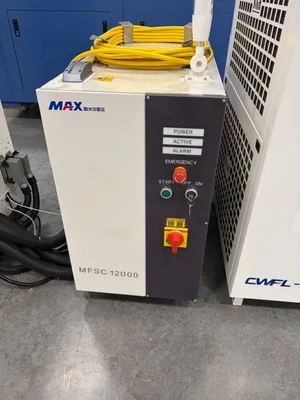

Source brand: MAX Photonics and Raycus as available options for selection
Power supply: ~3×480 V 60 Hz or other
Ingress protection rating: IP54

With Rotary Tube Cutter Attachment
