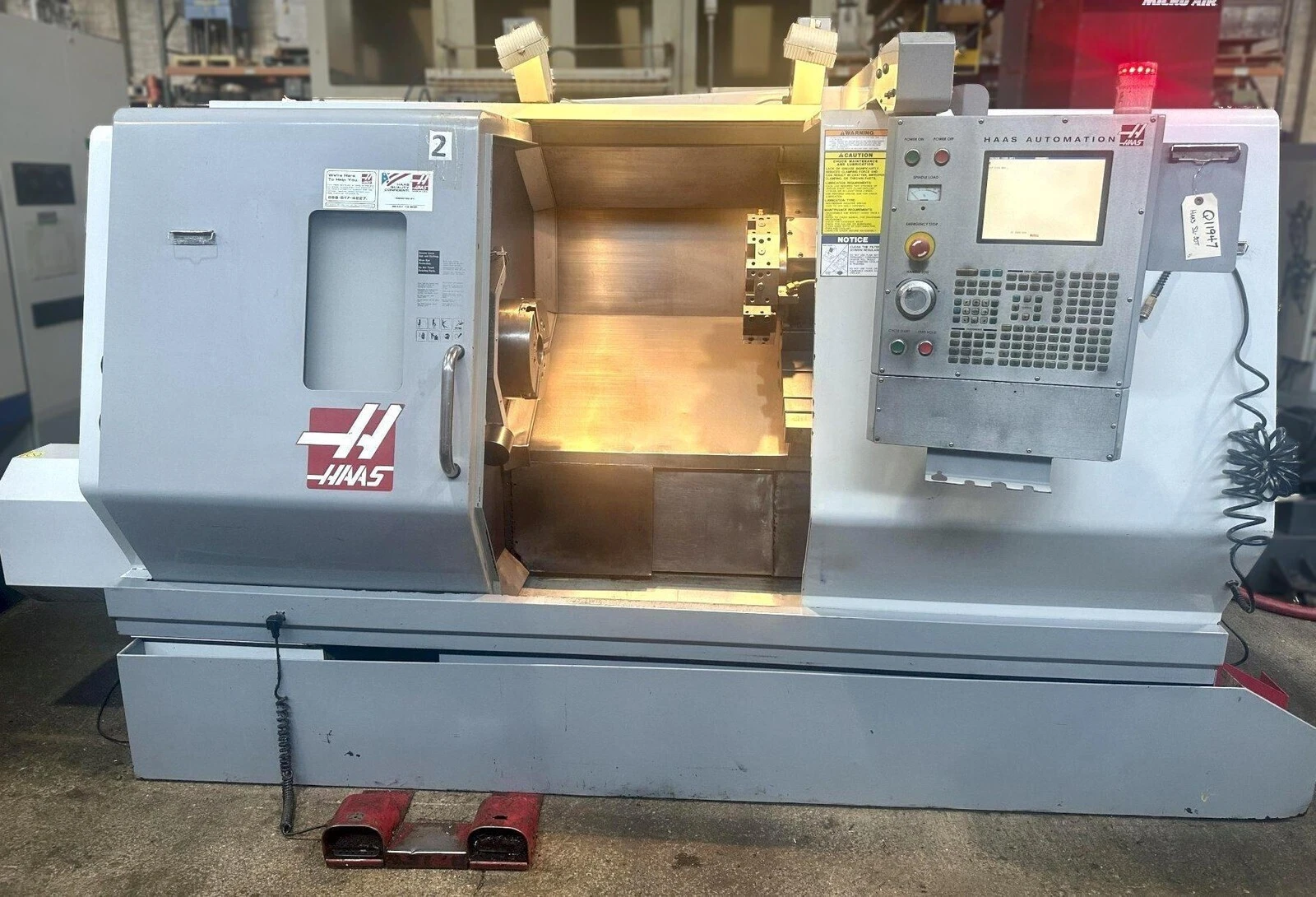

Used CNC Lathe. Features 14" X-axis and 34" Z-axis travel, 3" bar capacity, 30 HP spindle up to 3,400 RPM, and Haas CNC Control. Includes 12” Kitagawa chuck, 2-speed gearbox, and coolant system. Dimensions: 126" x 83". 16,000 lbs.
| Swing | 30" | 762 mm |
| Machining Length | 32" | 812.8 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 3,400 RPM | 3,400 RPM |
| Turning Dia | 17" | 431.8 mm |
| Tailstock | Yes | Yes |
| Control | CNC (HAAS) | CNC (HAAS) |
Max Swing Over Bed 30"
Max Swing Over Carriage 14.5"
Chuck Size 12"
Max Distance Between Centers 39"
X-Axis (Cross Travel) 14"
Z-Axis (Longitudinal Travel) 34"
X-Axis Rapid Traverse Rate 710 IPM
Z-Axis Rapid Traverse Rate 710 IPM
# Tool Turrets 1
Tool Turret Positions 12 Total
Spindle Nose A2-6
Spindle Bore 3.5"
Bar Capacity 3"
Max Spindle Speed 3,400 RPM
Spindle Horsepower 30 HP
Electrics 220/3/60
Approximate Machine Dimensions 126" x 83"
Approximate Machine Height 74"
Approximate Machine Weight 16,000 LBS
Haas CNC Control, 12" 3-Jaw Kitagawa Chuck, VOP-A, 2 Speed Gear Box, Tool Presetter, 3.5" Spindle Bore, 12 Station Tool Turret (1 Boring Bar Holder Included), Foot Pedal for Chuck Clamp/Unclamp, Tailstock, Coolant System, Chip Conveyor.
