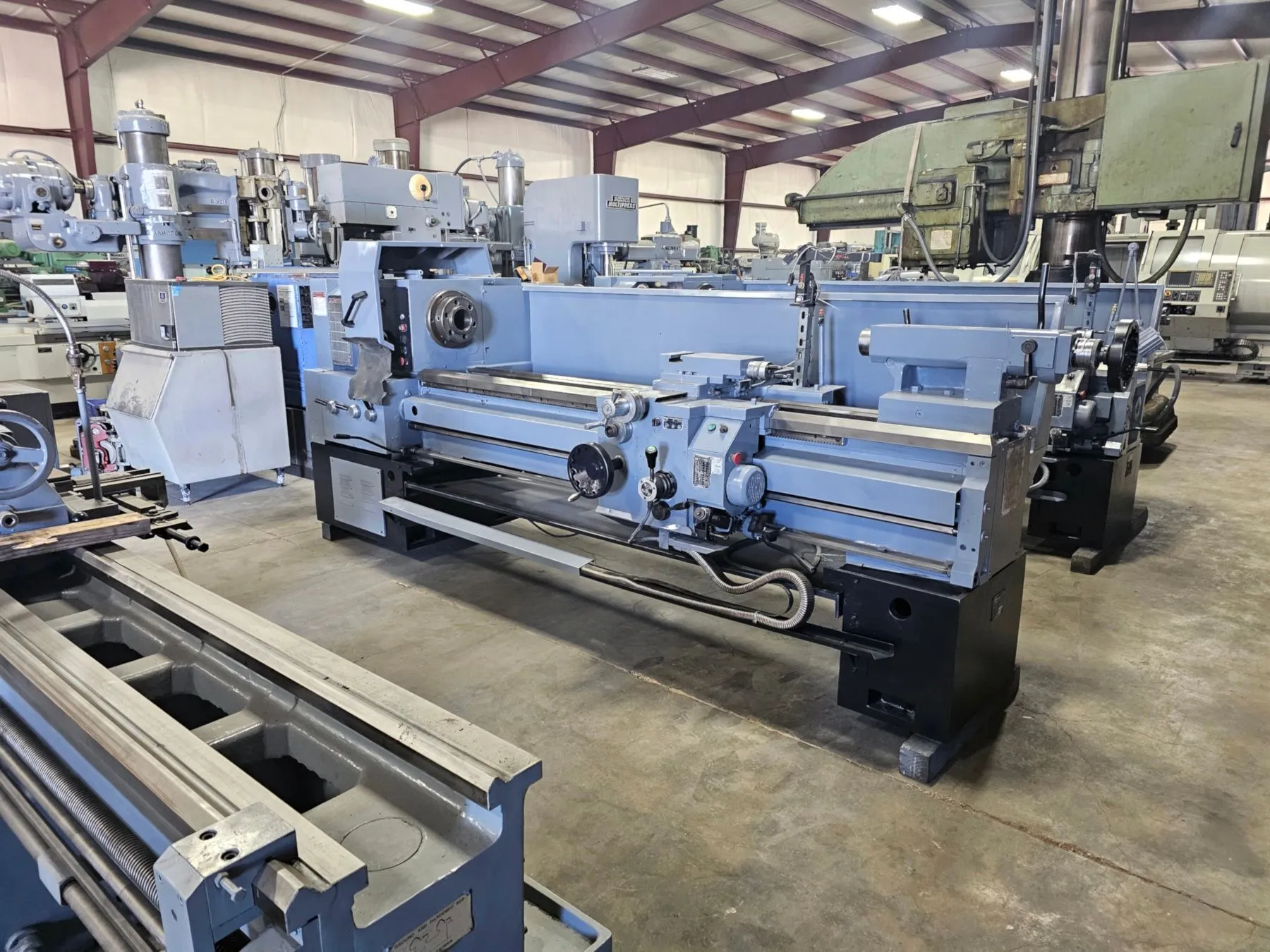

USED SUMMIT 20X80-4

Summit Engine Lathe 20"X80" With 4" Spindle Hole Model 20X80B

Swing over bed................................20 1/4″
Distance between centers......................80″
Swing over cross slide........................11-7/8″
Maximum weight @ the headstock................400 lbs.
Maximum weight chuck and tailstock............2,000 lbs. (4,000 lbs. with Steady Rest)
Spindle speeds................................11.5 – 1,400 RPM (15)
Chuck size....................................16" 4-Jaw New with 2- piece jaws.
Hole through spindle..........................4 1/8″
Spindle nose..................................D1-8 Camlock
Headstock center..............................#6 MT
Threads per inch..............................1/4 – 60 (64)
Metric threads................................0.5 – 120 (64)
Module threads................................0.125 – 30 (64)
Diametral pitch...............................1 – 240 (64)
Longitudinal feeds............................0.00145 – .44474 (124)
Cross feeds...................................0.0007 – .22237 (56)
Leadscrew range...............................2 TPI (2″ Diameter)
Feed rod diameter.............................1″
Cross slide travel............................12-1/2″
Compound rest travel..........................5-3/8″
Graduation of apron handwheel.................0.020
Graduation of cross slide handwheel...........0.002
Travel of spindle barrel......................9-1/2″
Diameter of spindle barrel....................3-1/2″
Taper of center...............................#5 MT
Two speeds....................................1
Width of bed..................................15-3/4″
Depth of bed..................................16-7/8″
Hardness of bed Rockwell c....................42 – 48
Degrees of taper..............................+/- 10°
Max. turning length per setting...............15-3/4″
Floor Space...................................R-L 156 X F-B 48"
Machine Height................................60"
Weight........................................7,200 Lbs.
Main Motor....................................10 Hp.
Coolant pump..................................1/4 Hp.
Rapid traverse................................Yes

Options:
Chuck Size New Gator 16" 3-Jaw With (2) Piece Jaws.$4,450.00
Newall D.R.O. 2 Axis...............................$5,250.00 Installed
Aloris Type Tool Post And Five Holders.............$1,650.00

Note:
Machine has been cleaned, painted and cycled.
Headstock and apron flushed and new oil and slight
glasses will be installed. New belts installed.
