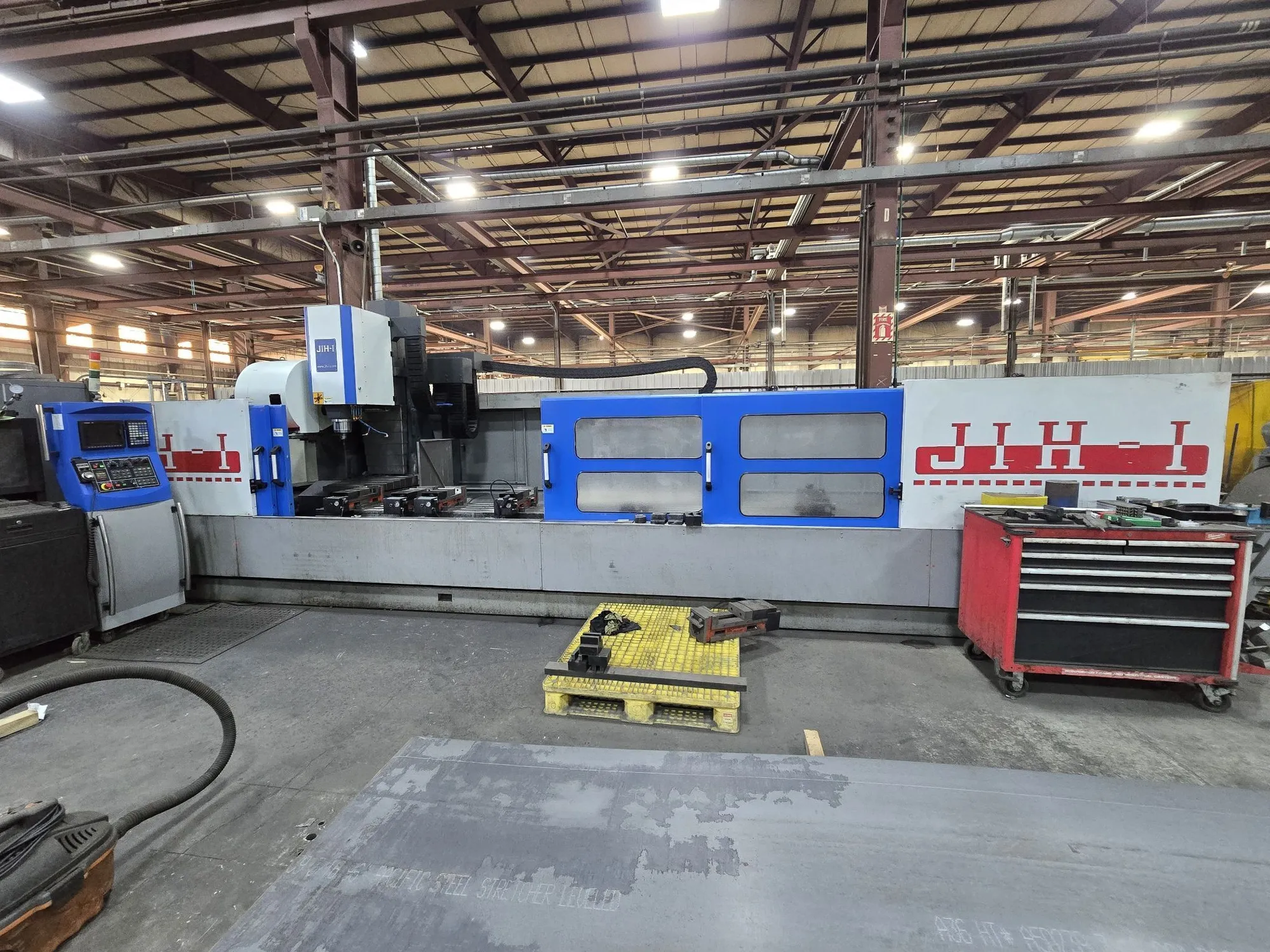

USED 2020 JIH-I JIH-CNC6500H

PMI-CNC H-Type Machining Center, 3-Axis, 4500mm (177 Inches) Working Length, Mitsubishi Industrial PC Controller, Automatic Tool Changer, 24 Tool Capacity, Automatic Drag Style Chip Conveyor, T-Slot Work Table, Full Enclosure, Includes 6 Tool Holders and Collets

JIH-I PMI-6500H 3 Axis Traveling Column Machining Center
Model PMI-6500H
Stroke
X-Axis Stroke 4,500mm
Y-Axis Stroke 510 mm(Opt.650mm)
Z-Axis Stroke 510 mm (Opt. 700mm)
Distance From Spindle Nose To Table Surface Min. 160 mm, Max. 670 mm
Table
Table Type 5 Groove T-slots Table
Table Size 450 x 6,500 mm
(Opt. 600x6500,For Y-Axis stroke 650mm)
Max. Load 1,000 kg
T-Slots(No. x Wx P) 5 x 94 x 450 mm
Spindle
Spindle Speed 12,000
Spindle Motor 15 HP (11 kw)
Spindle Taper Cone BT40(Opt.BT50 / 8,000R.P.M.)
Feed Rate
Rapid Feed Rate(X/Y/Z) Gear rack X:40 m/min / (Opt. Ball screw X:24 m/min) Ball screw Y:24 m/min, Ball screw Z:24 m/min
Servo Motors of 3 Axes X:5 kw, Y:3.5 kw, Z:3.5 kw
Cutting-Feed Rate F:1~5,000 mm/min
Repeatability Accuracy X: ± 0.02mm, Y: ± 0.01mm, Z:± 0.01mm
ATC
Magazine Capacity 24 Tools
ATC Type Arm-type
Tool Holder BT40
Pull Stud 45°
Max. Tool Length 300 mm
Max. Tool Diameter 80 mm
Max. Tool Weight 7 kg
Dimensions
Required Pneumatic Pressure 6 kg/cm2
Machine Dimensions(LxWxH) 15,000 x 3,200 x 3,000 mm
Packing Dimensions(LxWxH) 11,800 x 2,300 x 2,500 mm (2 40-inch containers)
Machine Weight 15,000-21,000 kgs

1. The base is fabricated from heavy gauge steel plates and scientifically reinforced, allowing for solid support for the column and work pieces.
2. Travelling column design features increased machining efficiency and accuracy.
3. The oversized box-type column is manufactured from high quality cast iron.
4. Large diameter ball screw on x-axis is firmly supported to eliminate self-deflection problems.
5. 3 axis adopt 45 mm P class high precision linear guide ways; X axis features 8 blocks, Y and Z axis are 6 blocks.
6. Automatic lubricator delivers lubrication oil to all linear ways and ball screws.
7. Y-axis & X-axis ball screws are direct coupled with drive motors, featuring no backlash, high transmission efficiency and high accuracy.
Travelling Column
• The machine is designed with a travelling column and a fixed table.
• With the travelling column configuration,work piece weight will not affect the transmission system. As a result,consistent machining accuracy can be achieved.
• Each linear way on the Y-axis is fitted with 3 sliding blocks to assure ultra-high stability when the Y-axis is moving.
Oil Mist Cooling System and Flood Coolant
System
Mitsubishi Control
Automatic Lubrication System
Drag Style Chip Conveyor
Spindle Chiller
