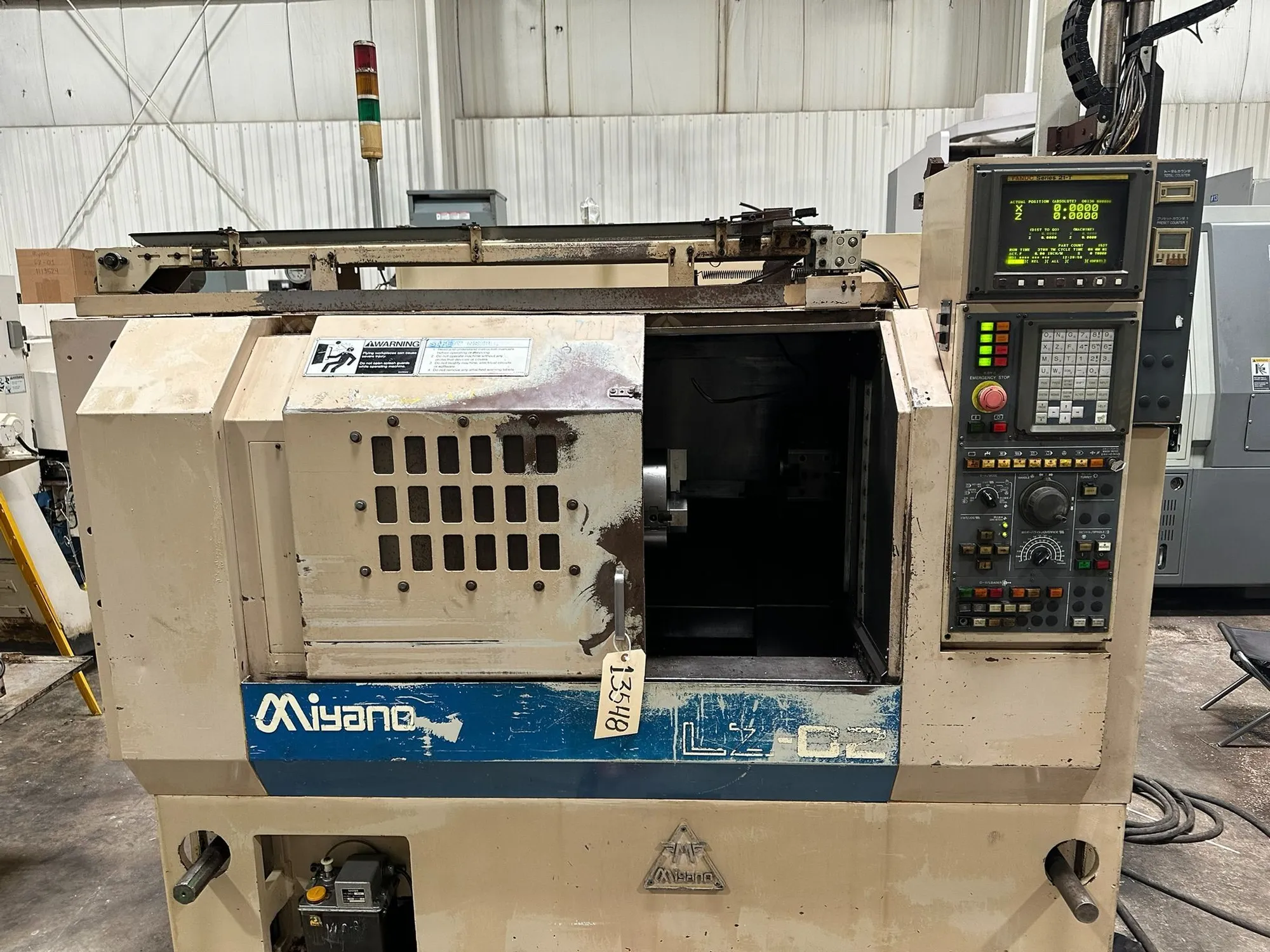

MIYANO LZ-02 CNC Lathe, 2-axis, 1998 model, features Fanuc 21T control, auto load/unload, and a 3-jaw chuck. With 10 tool positions (5 live), it handles max diameter of 4.724", machining length 3.14". Powered by a 15 HP motor, 208/220/230V.
| Swing | 12.6" | 320.04 mm |
| Machining Length | 3.15" | 80.01 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 1.25" | 31.75 mm |
| Power | 14.6 hp | 10.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 3.63" | 92.202 mm |
| Tailstock | No | No |
Max. Cutting Diameter 4.724"
Max. Machining Length w/ Loader 3.14"
Spindle Bore 2.4"
Number of Tool Positions 10 (5) Live tool positions
X, and Z Axis
Load/Unload Cycle Time 5.5 Seconds
Spindle Drive Motor 15 HP
Electrical Requirements 208/220/230 Volts AC, 3Ph, 28KVA Full Load
Fanuc 21T CNC control
Automatic load/unload system
3-Jaw Chuck
8 Position Turret
Splash guards
Chip Conveyor & Coolant System
