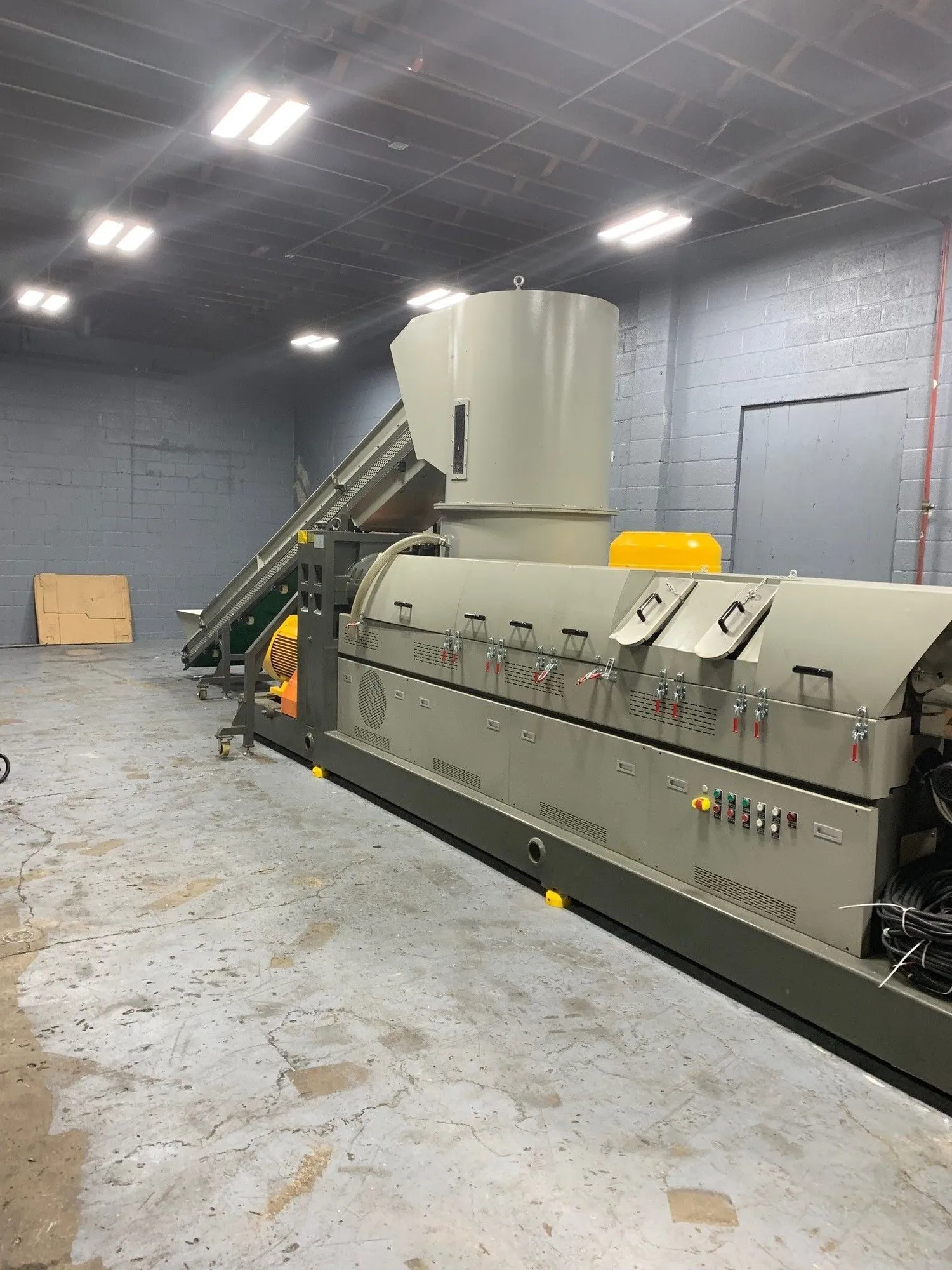

USED 2019 HUAXING HXSJ 150
Overview
Description
150mm (6”) 30:1 L/D PE & PP Extrusion line 480V, 50A, 60Hz 600 to 1,000 kg / hr System consists of: Main control panel Crusher / compactor with infeed conveyor Two stage plastic extruder: 1) 150mm x 4500mm (30:1) primary, double vented with vacuum system & 2 stage filtration 2) 150mm x 1800mm (12:1) secondary, single vented with 2 stage filtration Water bath strand cooling system with dewatering blowers, strand cutter, vibrating table, cooling tank, cooling tower, recirculation pumps, discharge vacuums, storage cyclone and pneumatic storage cyclone discharge. Low hours and spare parts
Specifications
HUAXING HXSJ 150-DWM11 Three Stage Plastic Extrusion (2019)
150mm (6”) 30:1 L/D PE & PP Extrusion line
480V, 50A, 60Hz
600 to 1,000 kg / hr
System consists of:
Main control panel
Crusher / compactor with infeed conveyor
Two stage plastic extruder:
1) 150mm x 4500mm (30:1) primary, double vented with vacuum system & 2 stage
filtration
2) 150mm x 1800mm (12:1) secondary, single vented with 2 stage filtration
Water bath strand cooling system with dewatering blowers, strand cutter, vibrating table,
cooling tank, cooling tower, recirculation pumps, discharge vacuums, storage cyclone and
pneumatic storage cyclone discharge.
Low hours and spare parts
